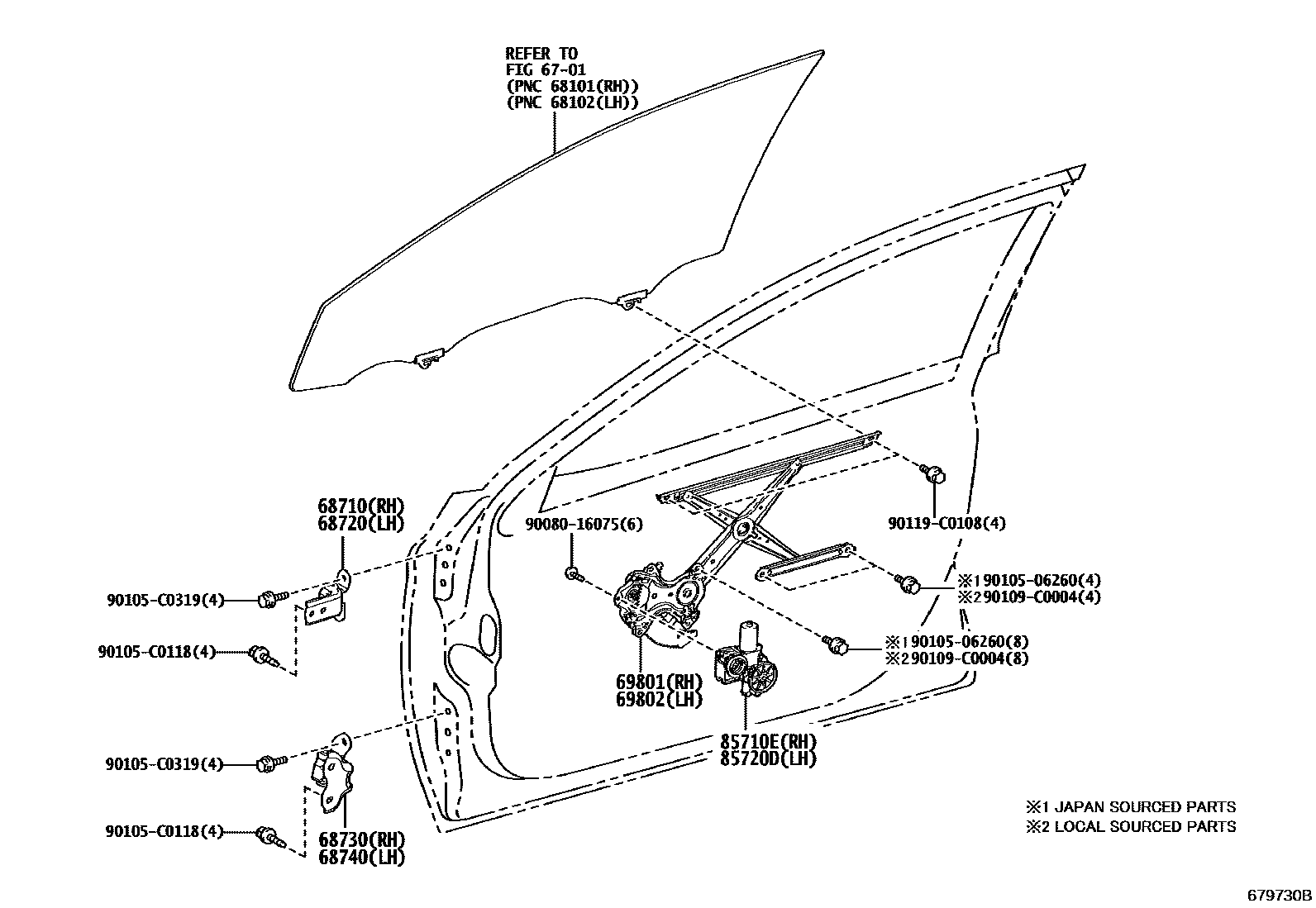

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iASV71,AXVA70,AXVH71,MXVA71201712-202103

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iASV71201712-201902

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iASV71201712-201902

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iASV71201712-201902

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06230iASV71201712-201902

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06230iASV71201712-201902

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06310iASV71201712-201902

main85710-06311iAXVA70,AXVH71,MXVA71202002-202103

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06330iASV71201712-201902

main85720-06331iAXVA70,AXVH71,MXVA71202002-202103

9008016075

main90080-16075

9010506260

main90105-06260

90105C0118

main90105-C0118

90105C0319

main90105-C0319

90109C0004

main90109-C0004

90119C0108

main90119-C0108

15 parts on this diagram · 1 diagram in section
