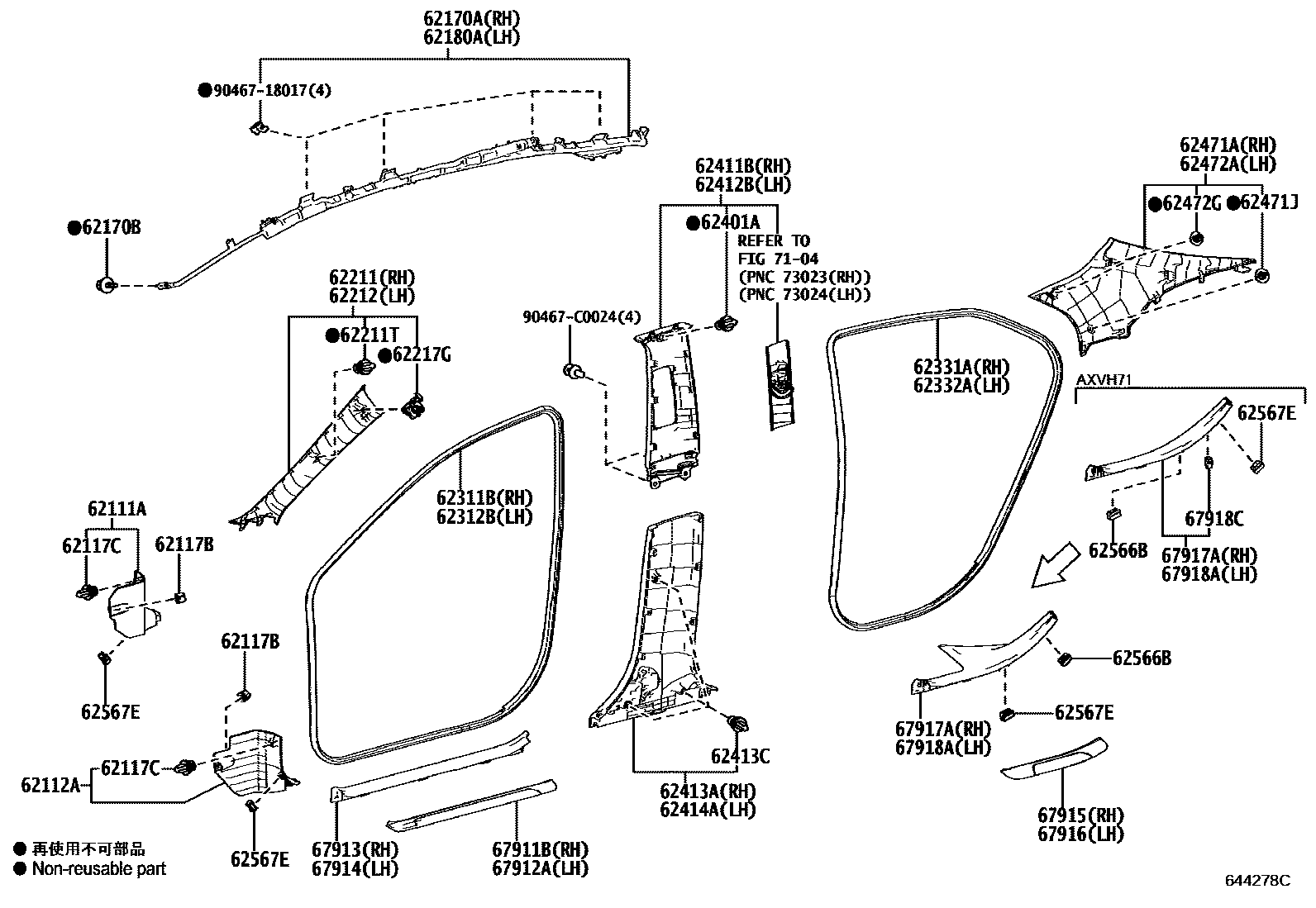

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
62111ATRIM SUB-ASSY, COWL SIDE, RH
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,41
BLACK,TRIM2#
62112ATRIM SUB-ASSY, COWL SIDE, LH
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,41
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
62170BBOLT, W/WASHER
(L)
(J)
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
62211GARNISH, FRONT PILLAR, RH
GRAY,TRIM2#,3#
GRAY,TRIM2#,41
GRAY,TRIM2#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
GRAY,TRIM2#
GRAY,TRIM2#,3#
GRAY,TRIM2#,41
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
62217GCLIP, FRONT PILLAR GARNISH
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62401ACLIP (FOR CENTER PILLAR GARNISH PANEL, UPPER)
62411BGARNISH, CENTER PILLAR, UPPER RH
GRAY,TRIM2#,41
GRAY,TRIM2#
GRAY,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
62412BGARNISH, CENTER PILLAR, UPPER LH
GRAY,TRIM2#,3#
GRAY,TRIM2#
GRAY,TRIM2#,41
NEUTRAL BEIGE,TRIM40
NEUTRAL BEIGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
NEUTRAL WARM GRAY,TRIM4#
NEUTRAL WARM GRAY,TRIM40
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,41
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
NEUTRAL WARM GRAY,TRIM4#
NEUTRAL WARM GRAY,TRIM40
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,41
62471AGARNISH, ROOF SIDE, INNER RH
GRAY,TRIM2#,3#
GRAY,TRIM2#
GRAY,TRIM2#,41
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
62471JCLIP (FOR ROOF SIDE GARNISH)
62472AGARNISH, ROOF SIDE, INNER LH
GRAY,TRIM2#,41
GRAY,TRIM2#
GRAY,TRIM2#,3#
NEUTRAL BEIGE,TRIM4#
NEUTRAL BEIGE,TRIM40
62472GCLIP (FOR ROOF SIDE GARNISH)
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
WITHOUT(CLEARANCE & BACK SONER)
VALUE PACKAGE
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
VALUE PACKAGE
WITHOUT(CLEARANCE & BACK SONER)
67913PLATE, FRONT DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM4#
NEUTRAL WARM GRAY,TRIM40
BLACK,TRIM2#,3#
BLACK,TRIM2#,41
BLACK,TRIM2#
67914PLATE, FRONT DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#,41
BLACK,TRIM2#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
VALUE PACKAGE
WITHOUT(CLEARANCE & BACK SONER)
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
WITHOUT(CLEARANCE & BACK SONER)
VALUE PACKAGE
67917APLATE, REAR DOOR SCUFF, RH
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,41
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#
BLACK,TRIM2#,41
BLACK,TRIM2#,3#
67918APLATE, REAR DOOR SCUFF, LH
NEUTRAL WARM GRAY,TRIM4#
NEUTRAL WARM GRAY,TRIM40
BLACK,TRIM2#,3#
BLACK,TRIM2#
BLACK,TRIM2#,41
NEUTRAL WARM GRAY,TRIM40
NEUTRAL WARM GRAY,TRIM4#
BLACK,TRIM2#,41
BLACK,TRIM2#,3#
BLACK,TRIM2#
67918CCLIP(FOR REAR SCUFF PLATE)
7104
9046718017
main90467-18017
90467C0024
main90467-C0024
39 parts on this diagram · 1 diagram in section
