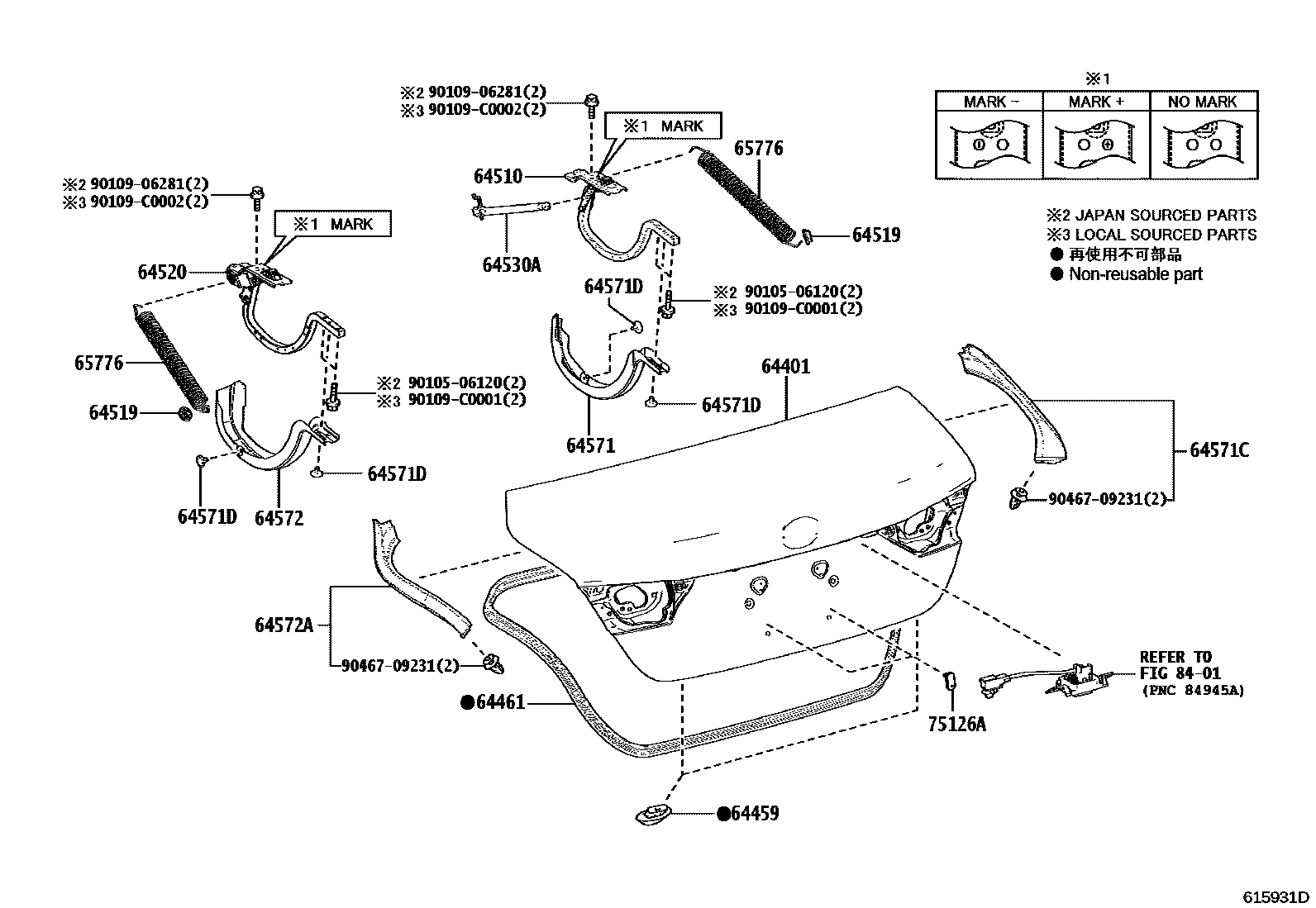

LUGGAGE COMPARTMENT DOOR & LOCK

0001 1PANEL 0002 1LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-06E50supersedes 64401-06E60iASV71..G201712-201902

VALUE PACKAGE

main64401-06E60iMXVA71..G;AXVA70,AXVH71..E,G202103

main64401-06E80iAXVA70,AXVH71,MXVA71..S202103

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main64459-06030×2iASV71201712-201902

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-06230iAXVA70,AXVH71,MXVA71201712-202103

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-06300iAXVA70,AXVH71,MXVA71201712-202103

NO MARK

main64510-06390iAXVA70,AXVH71,MXVA71201712-202103

MARK +

main64510-06400iASV71201712-201902

MARK -

64519BUSH, LUGGAGE DOOR HINGE SUPPORT

main64519-06120×2iASV71201712-201902

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-06120iASV71201712-201902

NO MARK

main64520-06210iASV71201712-201902

MARK +

main64520-06220iAXVA70,AXVH71,MXVA71201712-202103

MARK -

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-06030iAXVA70,AXVH71,MXVA71201712-202103

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-06100iASV71201712-201902

64571CCOVER, LUGGAGE COMPARTMENT DOOR, RH

main64571-06180iASV71201712-201902

64571DCLIP(FOR LUGGAGE COMPARTMENT DOOR HINGE COVER)

main90467-C0012-C0×4iASV71201712-201902

BLACK

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-06080iASV71201712-201902

64572ACOVER, LUGGAGE COMPARTMENT DOOR, LH

main64572-06160iAXVA70,AXVH71,MXVA71202103

65776SPRING, BACK DOOR STAY

main65776-06140×2iAXVA70,AXVH71,MXVA71202103

(L)

main65776-33011×2iASV71201712-201902

75126APLATE, REAR LICENSE PLATE BRACKET SUPPORT

main75126-06010×2iASV71201712-201902

main75126-78010×2iAXVA70,AXVH71,MXVA71202103

(J)

8401

9010506120

main90105-06120

9010906281

main90109-06281

90109C0001

main90109-C0001

90109C0002

main90109-C0002

9046709231

main90467-09231

20 parts on this diagram · 2 diagrams in section
