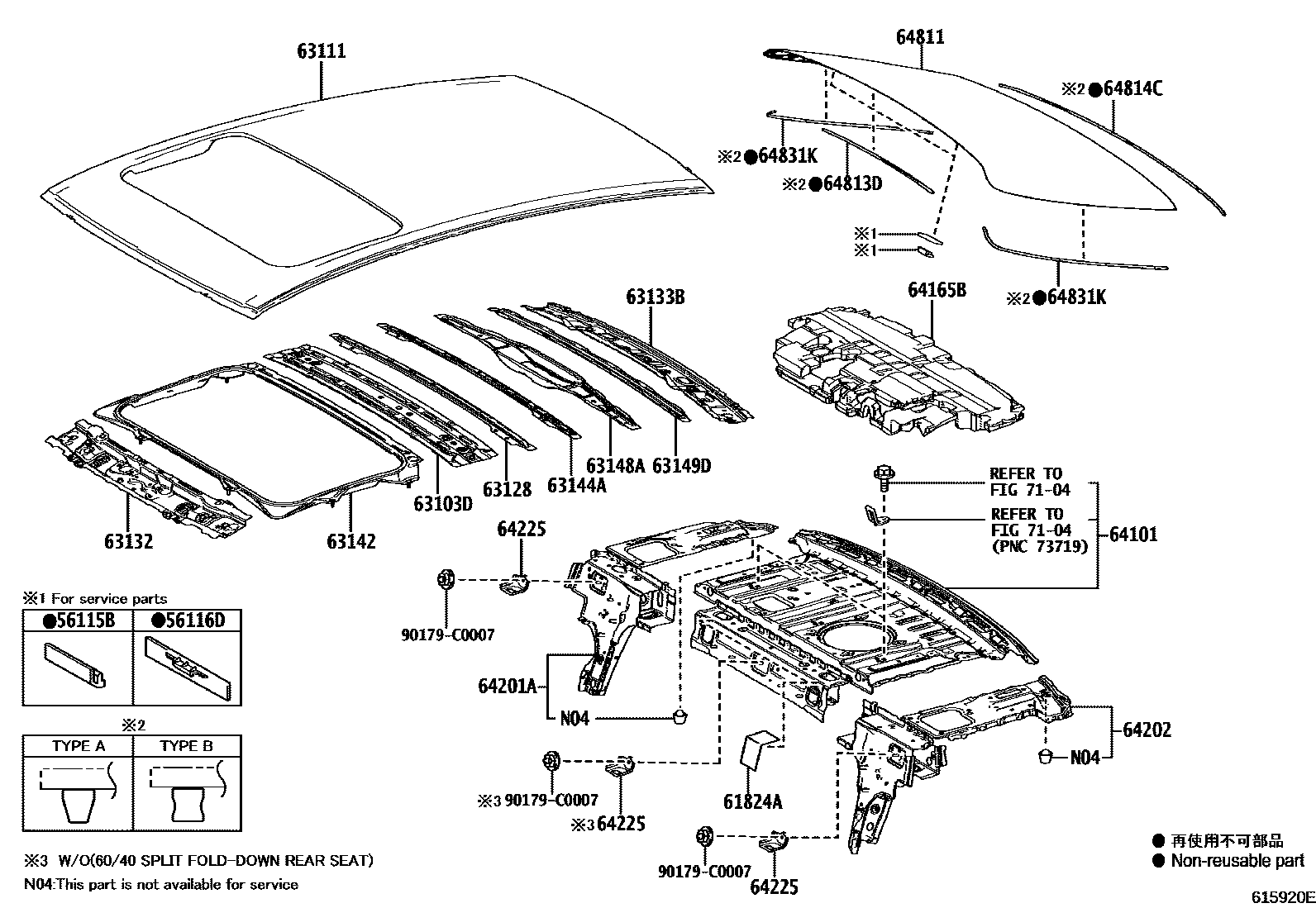

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
61824APLATE, NOISE CONTROL, NO.1
63103DREINFORCEMENT SUB-ASSY, ROOF PANEL, NO.3
63111PANEL, ROOF
WITHOUT(CLEARANCE & BACK SONER)
63128REINFORCEMENT, ROOF PANEL, NO.6
63132PANEL, WINDSHIELD HEADER, INNER
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149DREINFORCEMENT, ROOF PANEL, NO.8
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
WITH(ELECTRIC TILT & TELESCOPIC)
64201AEXTENSION SUB-ASSY, PACKAGE TRAY, RH
64202EXTENSION SUB-ASSY, PACKAGE TRAY, LH
64225HANGER, REAR SEAT CUSHION SUPPORT
64811GLASS, BACK WINDOW
64813DDAM, BACK WINDOW GLASS ADHESIVE
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
64814CDAM, BACK WINDOW GLASS ADHESIVE, LOWER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
64831KDAM KIT, BACK WINDOW GLASS
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
7104SEAT BELT & CHILD RESTRAINT SEAT
90179C0007
main90179-C0007
23 parts on this diagram · 4 diagrams in section
