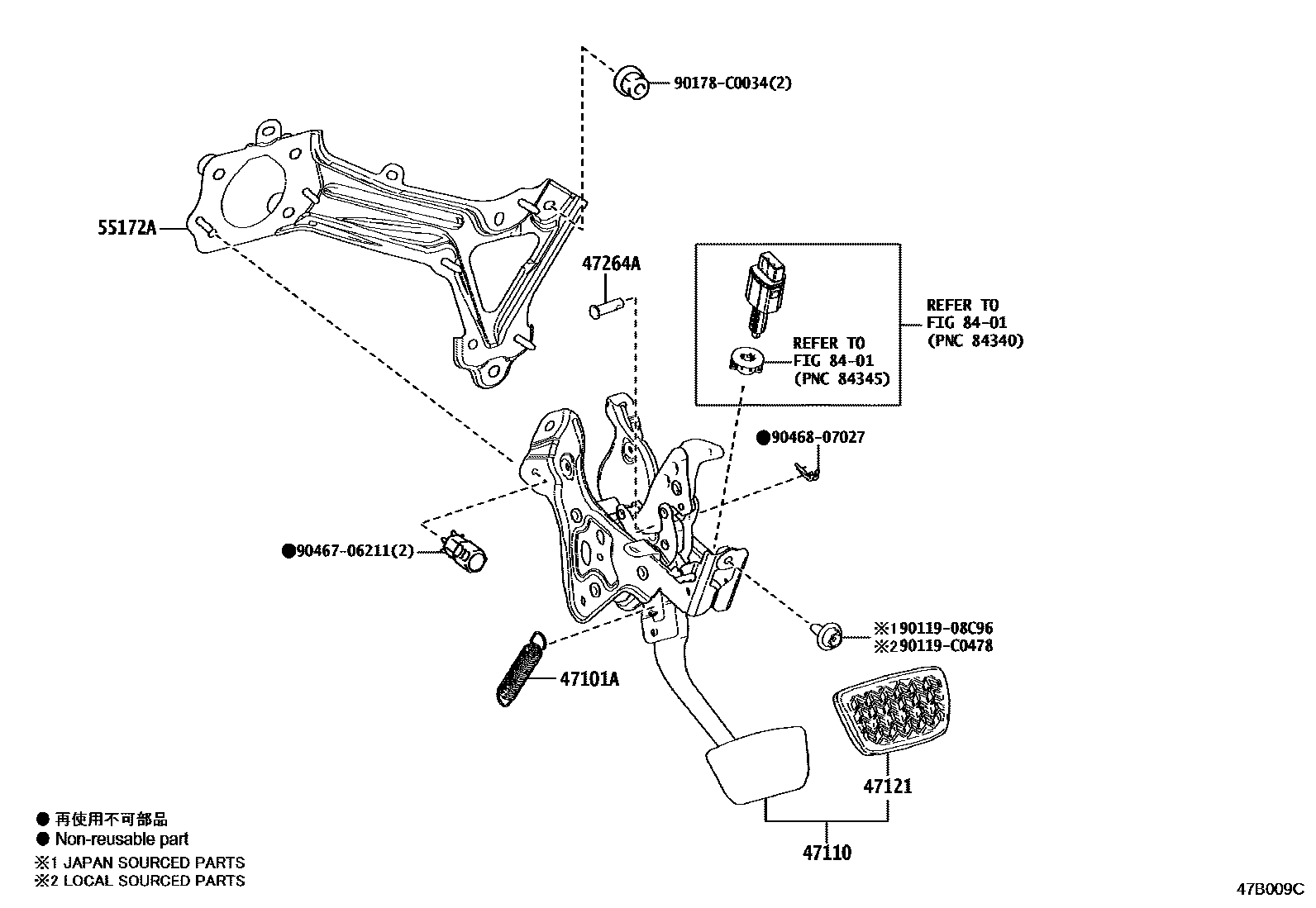

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iASV71201712-201902

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06330iAXVA70,MXVA71201712-202103

main47110-06340iAXVH71202103

47121PAD, BRAKE PEDAL

main47121-48010iAXVA70,AXVH71,MXVA71201712-202103

47264APIN(FOR PUSH ROD)

main90240-08078iASV71201712-201902

main90240-C0001iAXVA70,AXVH71,MXVA71202010-202103

55172ABASE, BRAKE PEDAL SUPPORT

main55172-06080iASV71201712-201902
