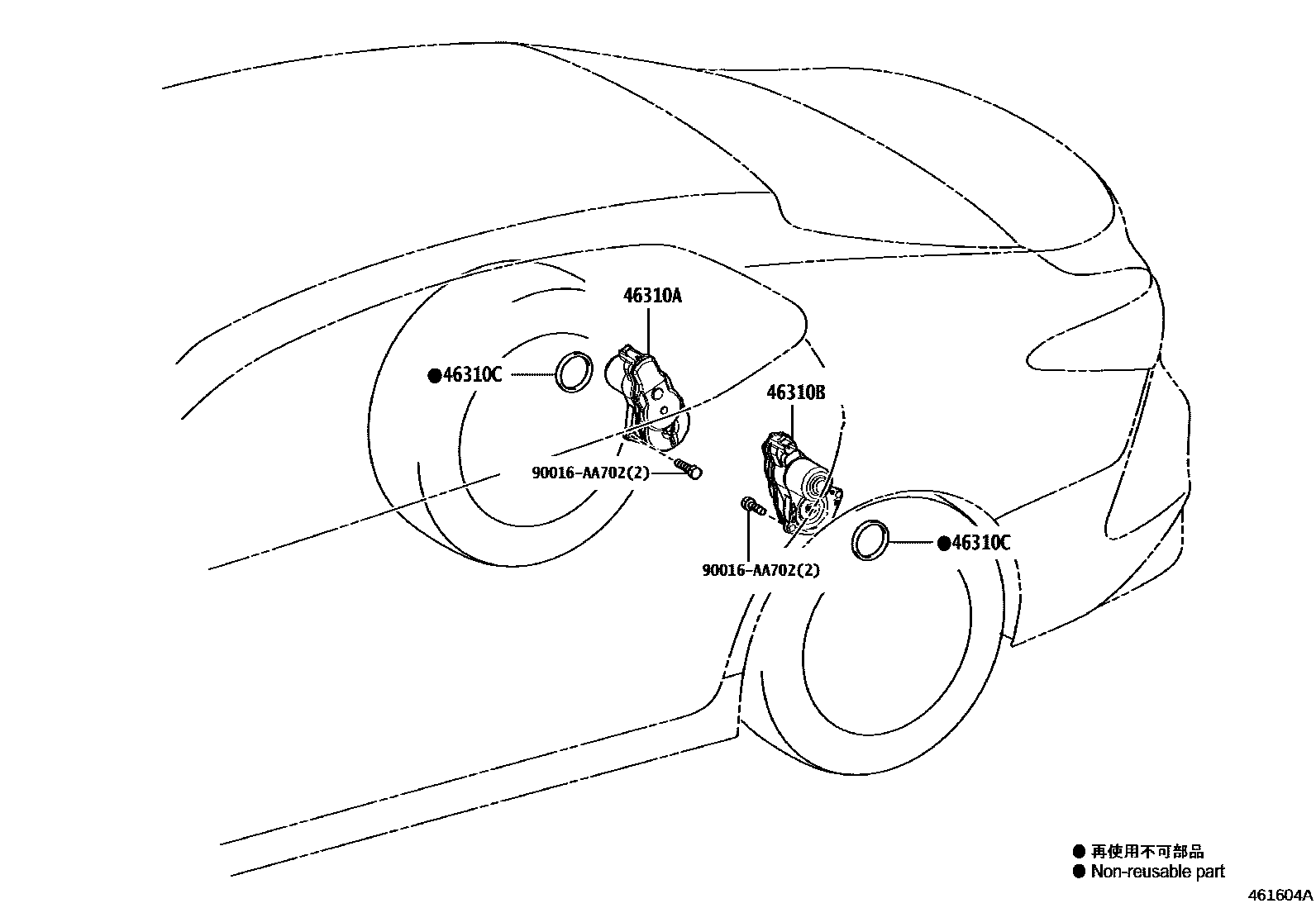

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-07010iAXVA70,AXVH71,MXVA71201912-202103

main46310-33010iAXVA70,AXVH71,MXVA71201712-201911

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-07010iAXVA70,AXVH71,MXVA71201912-202103

main46310-33010iAXVA70,AXVH71,MXVA71201712-201911

46310CSEAL(FOR PARKING BRAKE ACTUATOR)

main90015-AH005×2iASV71201712-201902

90016AA702

main90016-AA702

4 parts on this diagram · 1 diagram in section
