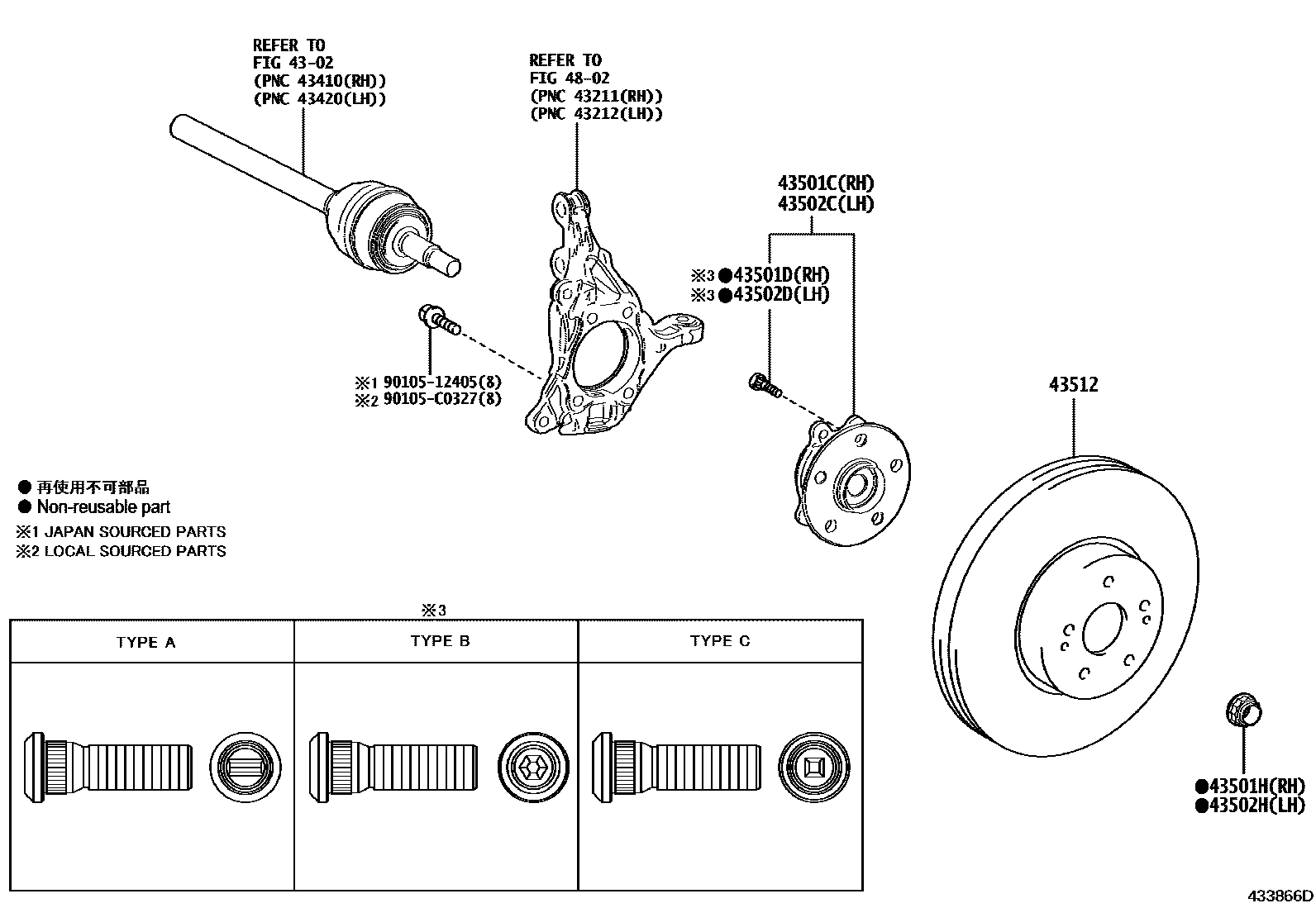

FRONT AXLE HUB

4302FRONT DRIVE SHAFT

→ Go to FIG 43-02

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-06040iAXVA70,AXVH71,MXVA71202103

main43550-06080iAXVH71201712-202103

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049×5iAXVA70,AXVH71,MXVA71202103

TYPE A:REFER ILLUST.

main90942-02081×5iAXVA70,AXVH71,MXVA71202103

TYPE B:REFER ILLUST.

main90942-02082×5iAXVA70,AXVH71,MXVA71202103

TYPE C:REFER ILLUST.

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iASV71201712-201902

(J)

main90177-C0004iAXVA70,AXVH71,MXVA71201712-202103

(L)

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-06040iAXVA70,MXVA71201712-202103

main43550-06080iAXVH71201712-202103

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049×5iASV71201712-201902

main90942-02081×5iAXVA70,AXVH71,MXVA71202103

TYPE B:REFER ILLUST.

main90942-02082×5iAXVA70,AXVH71,MXVA71202103

TYPE C:REFER ILLUST.

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iASV71201712-201902

(J)

main90177-C0004iASV71201712-201902

(L)

43512DISC, FRONT

main43512-06170×2iASV71201712-201902

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

9010512405

main90105-12405

90105C0327

main90105-C0327

11 parts on this diagram · 1 diagram in section
