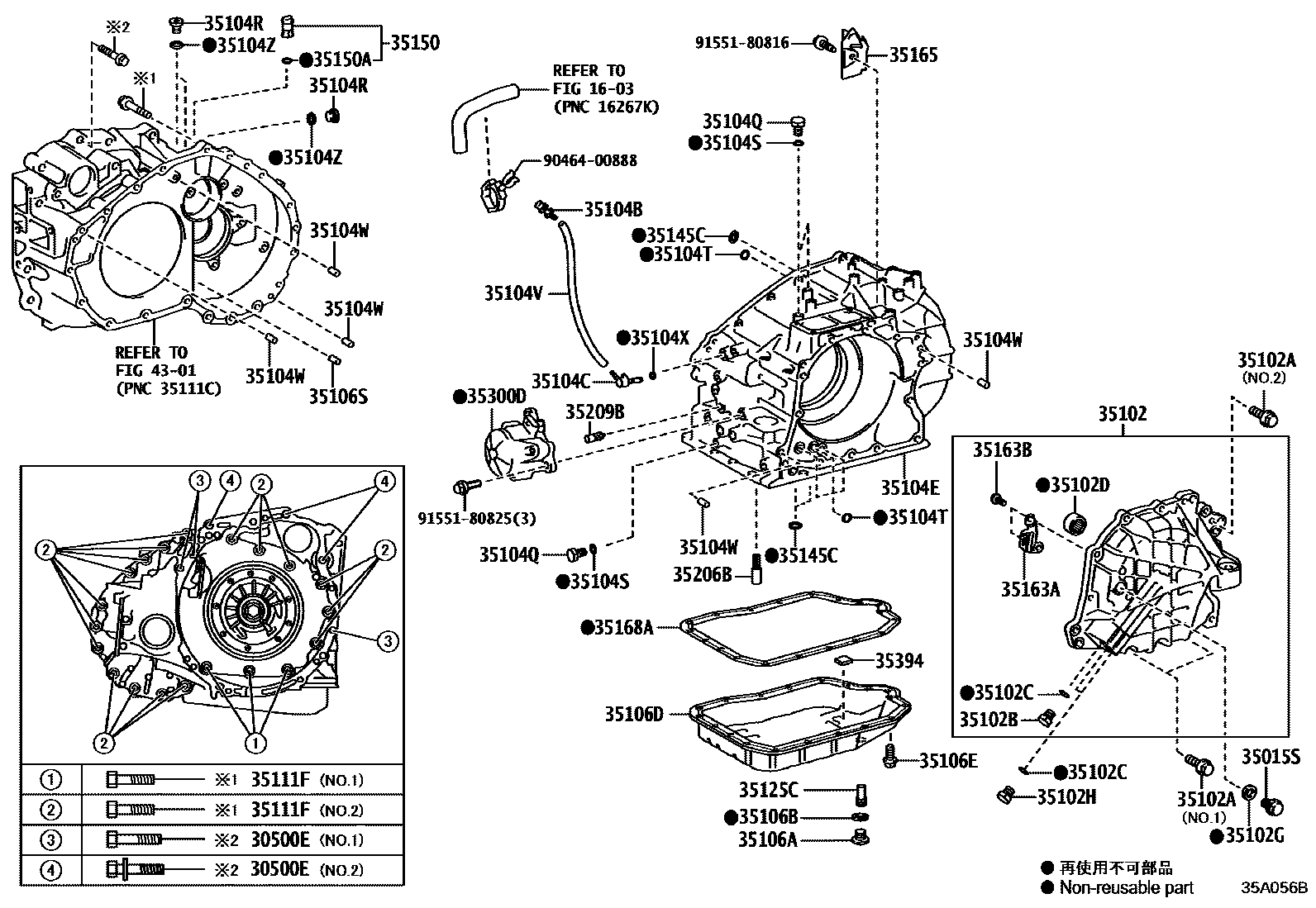

TRANSMISSION CASE & OIL PAN (ATM)
1603
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX45-36,(J),NO.1:REFER ILL.
*10-1.25PX50-30,NO.1:REFER ILLUST.
*8-1.25PX35-27,(L),NO.2:REFER ILL.
*8-1.25PX35-27,NO.2:REFER ILLUST.
*12X1.25PX50-30,(L),NO.3:REFER ILL.
*10-1.25PX45-36,(L),NO.1:REFER ILL.
*10-1.25PX45-36,NO.1:REFER ILLUST.
*12-1.25PX55-30,NO.2:REFER ILLUST.
*12-1.25PX50-30,(J),NO.3:REFER ILL.
*8-1.25PX35-22,(J),NO.2:REFER ILL.
35015SPLUG, STRAIGHT(FOR TRANSMISSION CASE ADAPTER)
35102COVER SUB-ASSY, TRANSAXLE REAR
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX28-22,NO.1:REFER ILLUST.
*8-1.25PX28-22,NO.2:REFER ILLUST.
35102BPLUG(FOR TRANSAXLE REAR COVER)
35102CRING, O(FOR TRANSAXLE REAR COVER PULG)
35102DBEARING, NEEDLE ROLLER(FOR TRANSAXLE REAR COVER)
35102GGASKET (FOR TRANSAXLE REAR COVER )
35102HPLUG, NO.2 (FOR TRANSAXLE REAR COVER)
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
AISIN AW:REFER 35-01
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
35106EBOLT (FOR TRANSAXLE OIL PAN)
35106SPIN, RING (FOR TRANSAXLE CASE)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX45-22,NO.1:REFER ILLUST.
*8-1.25PX35-22,*228,NO.2:REF.ILLUST
*8-1.25PX35-22,*229,NO.2:REF.ILLUST
*8-1.25PX35-22,*229,NO.2:REF.ILLUST,*228,NO.2:REF.ILLUST
*8-1.25PX40-22,*229,NO.1:REF.ILLUST,*228,NO.1:REF.ILLUST
*8-1.25PX40-22,*228,NO.1:REF.ILLUST
*8-1.25PX40-22,*229,NO.1:REF.ILLUST
*8-1.25PX45-22,NO.2:REFER ILLUST.
35125CTUBE, TRANSMISSION OIL FILLER, NO.1
35150PLUG ASSY, TRANSMISSION CASE
35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35165PLATE, TRANSMISSION CASE, NO.1
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35206BVALVE SUB-ASSY, CHECK, NO.1
35209BVALVE SUB-ASSY, TRANSAXLE OIL CHECK
35300DPUMP ASSY, OIL W/MOTOR
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
4301
9046400888
main90464-00888
9155180816
main91551-80816
9155180825
main91551-80825
43 parts on this diagram · 2 diagrams in section
