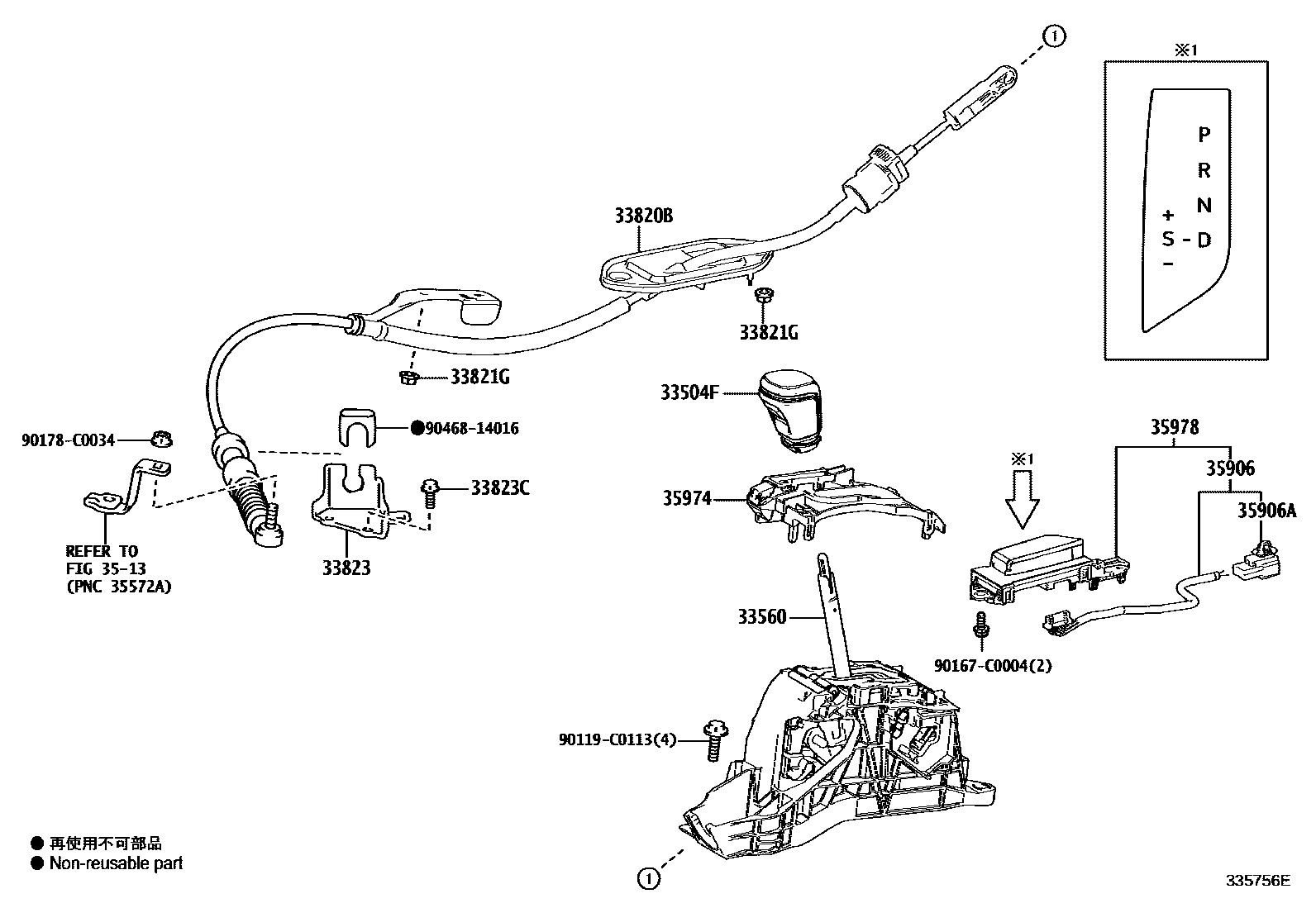

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02800-C0iAXVH71,MXVA71..E202103

BLACK,TRIM2#,4#

main33504-02800-C0iAXVH71,MXVA71..E201903-202103

BLACK,TRIM4#

main33504-06350-C0iASV71..S201712-202103

BLACK,TRIM2#,4#

main33504-06350-C0iASV71..S201712-201902

BLACK,TRIM2#

main33504-06350-C0iAXVA70,AXVH71,MXVA71..S201712-202103

BLACK,TRIM2#,3#

33560UNIT ASSY, SHIFT LOCK CONTROL

main33560-06410iASV71..E201712-202103

VALUE PACKAGE

main33560-06410iMXVA71..E202103

main33560-06420iAXVA70,MXVA71..G,S201712-202103

main33560-0E140iAXVH71202103

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06540iASV71201712-201902

main33820-06550iAXVH71201712-202103

main33820-06610iAXVA70201712-202103

main33820-06640iMXVA71201903-202103

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90178-C0011iASV71201712-202103

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06080iAXVH71201712-202103

main33823-06090iASV71201712-201902

main33823-06100iAXVA70201712-202103

main33823-F4050iMXVA71201903-202103

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079iASV71201712-201902

(J)

main90119-C0132iAXVA70,AXVH71,MXVA71201712-202103

main90119-C0212iASV71201712-201902

(L)

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06280iASV71201712-202103

main35906-06290iAXVH71201712-202103

main35906-06340iMXVA71201903-202304

main35906-06341iMXVA71202304

35906AHOUSING, CONNECTOR MALE (FOR INDICATOR LAMP WIRE)

main90980-12367iASV71201712-202103

35974HOUSING, POSITION INDICATOR, LOWER

main35974-06200iASV71201712-202103

35978INDICATOR, SHIFT POSITION

main35978-06220iMXVA71201903-202304

main35978-06221iMXVA71202304

main35978-06250iAXVA70201712-202103

main35978-06260iAXVH71201712-202103

90119C0113

main90119-C0113

90167C0004

main90167-C0004

90178C0034

main90178-C0034

9046814016

main90468-14016

15 parts on this diagram · 4 diagrams in section
