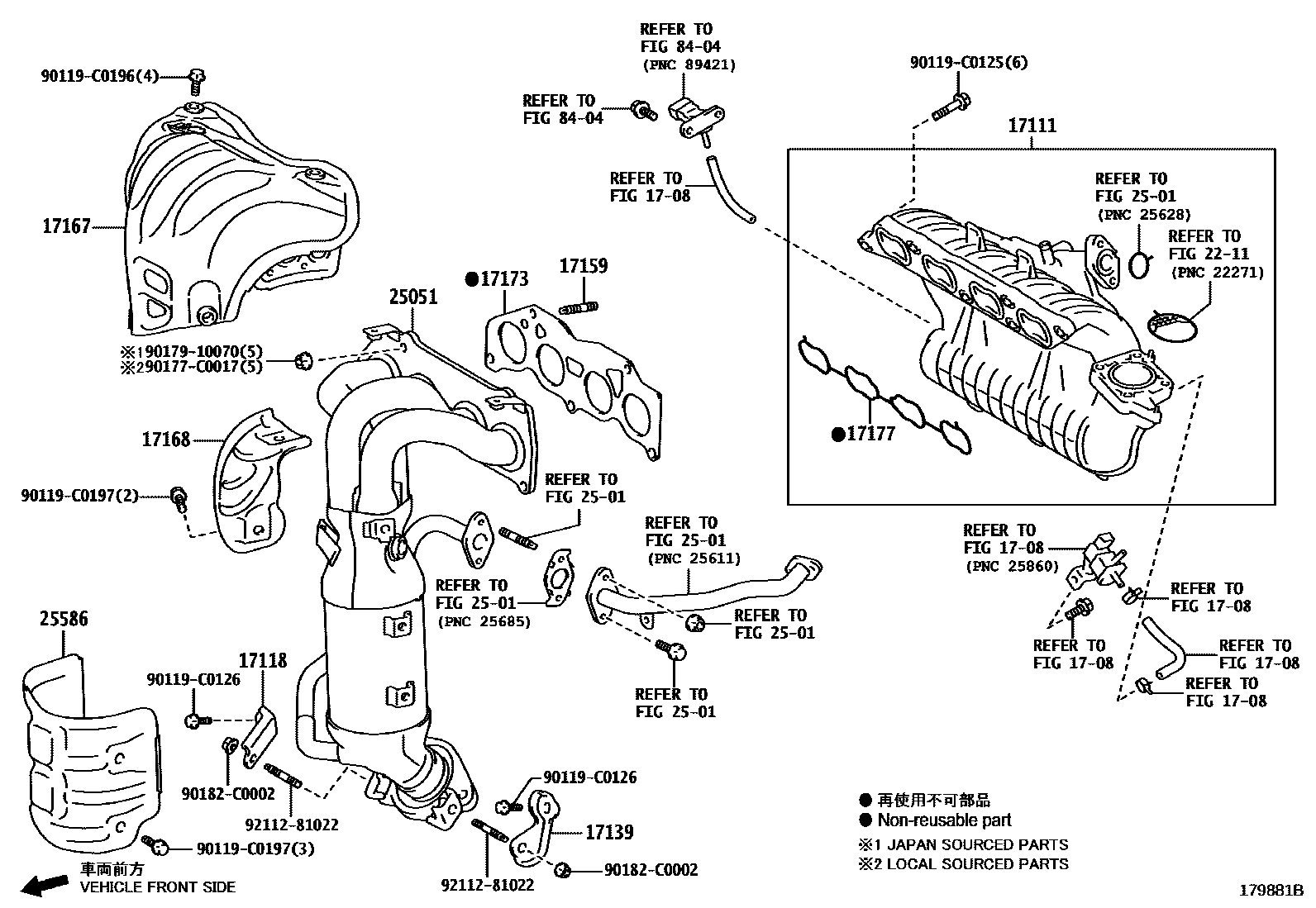

MANIFOLD
1708VACUUM PIPING
17111MANIFOLD, INTAKE
*634,*636
*634
ENGINE-UNLEADED GASOLINE(M20C)
17118STAY, MANIFOLD
(J)
(J)
(L)
(L)
ENGINE-UNLEADED GASOLINE(M20C)
17139STAY, MANIFOLD, NO.2
17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
*636
*634
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
(J)
(L)
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
(J)
(L)
17173GASKET, EXHAUST MANIFOLD TO HEAD
(J)
(L)
ENGINE-UNLEADED GASOLINE(M20C)
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
ENGINE-UNLEADED GASOLINE(M20C)
2211FUEL INJECTION SYSTEM
2501EXHAUST GAS RECIRCULATION SYSTEM
25051CONVERTER SUB-ASSY, EXHAUST MANIFOLD
25586INSULATOR, MANIFOLD CONVERTER, NO.1
8404ELECTRONIC FUEL INJECTION SYSTEM
90119C0125
main90119-C0125
90119C0126
main90119-C0126
90119C0196
main90119-C0196
90119C0197
main90119-C0197
90177C0017
main90177-C0017
9017910070
main90179-10070
90182C0002
main90182-C0002
9211281022
main92112-81022
22 parts on this diagram · 7 diagrams in section
