V-BELT

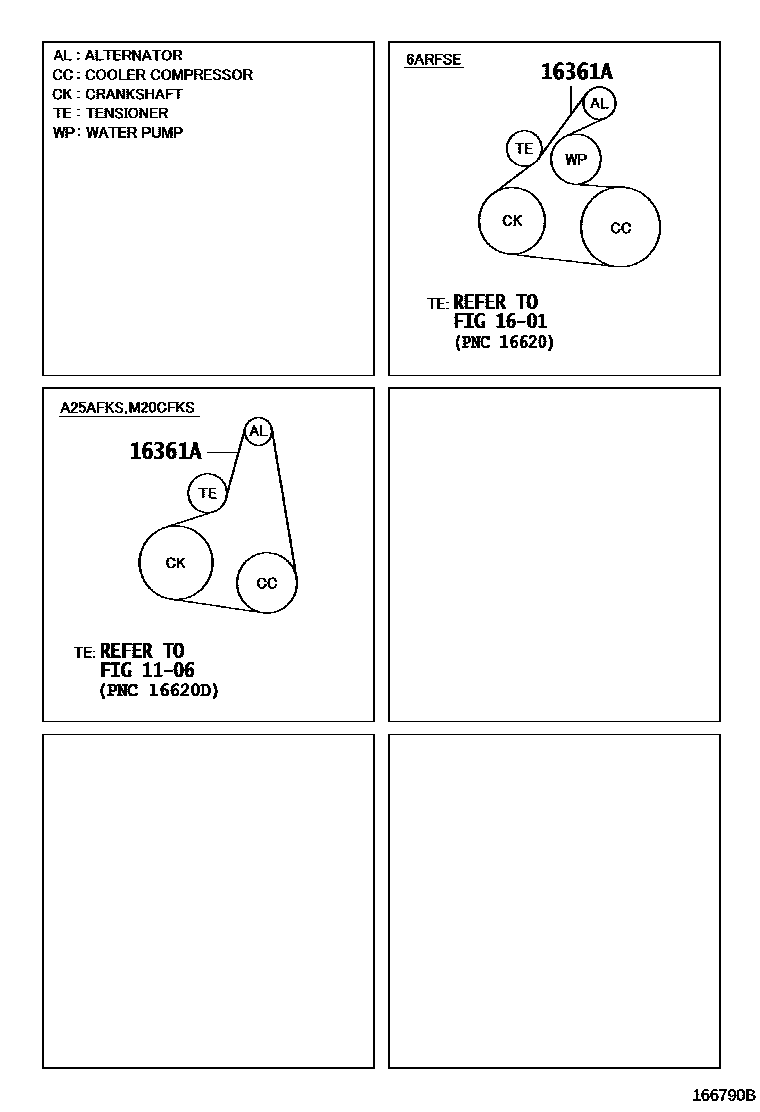

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02735i201712-201908

main90916-02748i201712-201902

main90916-02761i201903-202103

(J); ENGINE-UNLEADED GASOLINE(M20C)

main90916-02778i201909-202103

main90916-C2017i202103

(L)

3 parts on this diagram · 1 diagram in section
