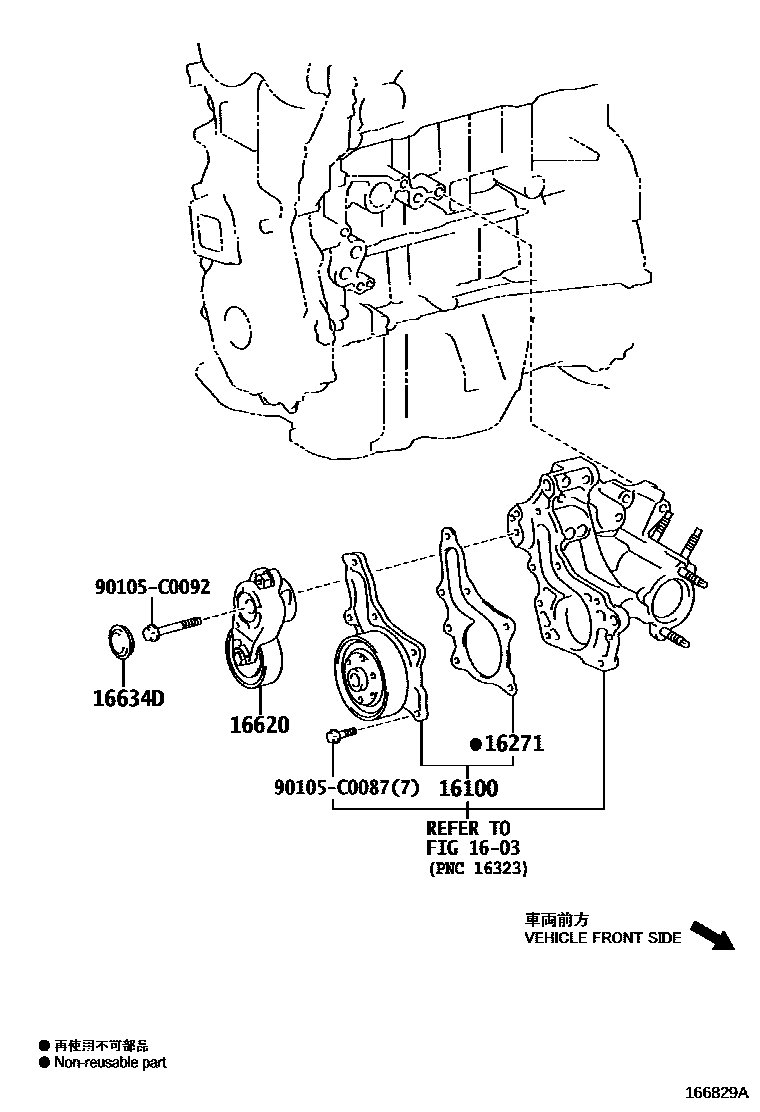

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-09660i6ARFSE..ASV71201712-201902

16271GASKET, WATER PUMP

main16271-0V010i6ARFSE..ASV71201712-201902

16620TENSIONER ASSY, V-RIBBED BELT

main16620-0V051i6ARFSE..ASV71201712-201902

16634DCOVER, DUST

main16628-0V010i6ARFSE..ASV71201712-201902

90105C0087

main90105-C0087

90105C0092

main90105-C0092

7 parts on this diagram · 1 diagram in section
