SHORT BLOCK ASSEMBLY

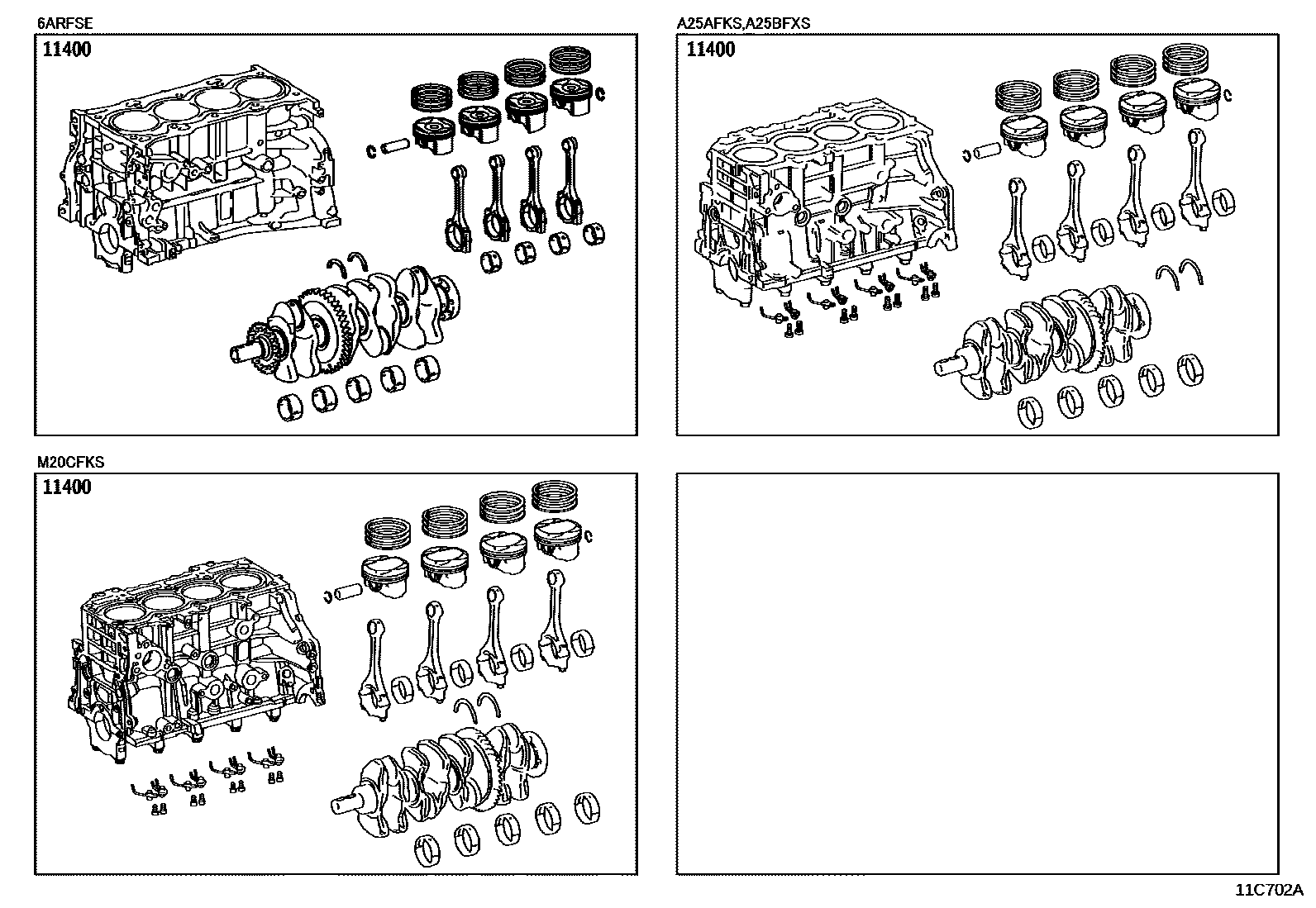

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0V160i201712-201902

main11400-25050i201712-201803

main11400-25051i201803-202103

main11400-25080i201712-201803

main11400-25081i201803-202103

main11400-25140i202103

*636

main11400-25150i202103

*636

main11400-F0070i202103

*634 OR *668

main11400-F0080i202103

*634 OR *668

main11400-F2060i201903-201907

ENGINE-UNLEADED GASOLINE(M20C)

1 parts on this diagram · 1 diagram in section
