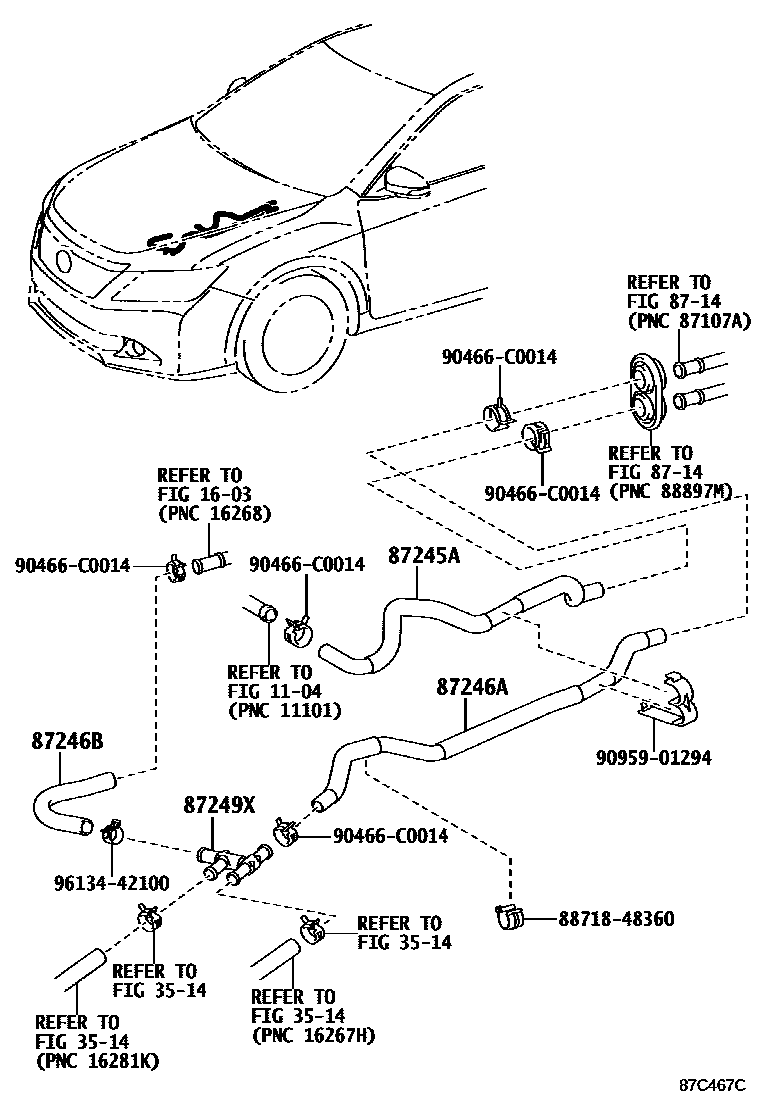

Toyota 280320 — HEATING & AIR CONDITIONING - WATER PIPING
1104CYLINDER HEAD
1603RADIATOR & WATER OUTLET
3514OIL COOLER & TUBE (ATM)
8714HEATING & AIR CONDITIONING - COOLER UNIT
87245AHOSE, HEATER WATER, INLET A
87246AHOSE, HEATER WATER, OUTLET A
87246BHOSE, HEATER WATER, OUTLET B
87249XPIPE, WATER
8871848360PIPE, COOLER REFRIGERANT SUCTION, NO.2
90466C0014
9095901294
9613442100
12 parts on this diagram · 4 diagrams in section
HEATING & AIR CONDITIONING - WATER PIPING for Toyota 280320
This section contains 17 genuine Toyota parts for the HEATING & AIR CONDITIONING - WATER PIPING system of the Toyota 280320. Key components include: CYLINDER HEAD, RADIATOR & WATER OUTLET, EXHAUST GAS RECIRCULATION SYSTEM, OIL COOLER & TUBE (ATM), HEATING & AIR CONDITIONING - COOLER UNIT.
