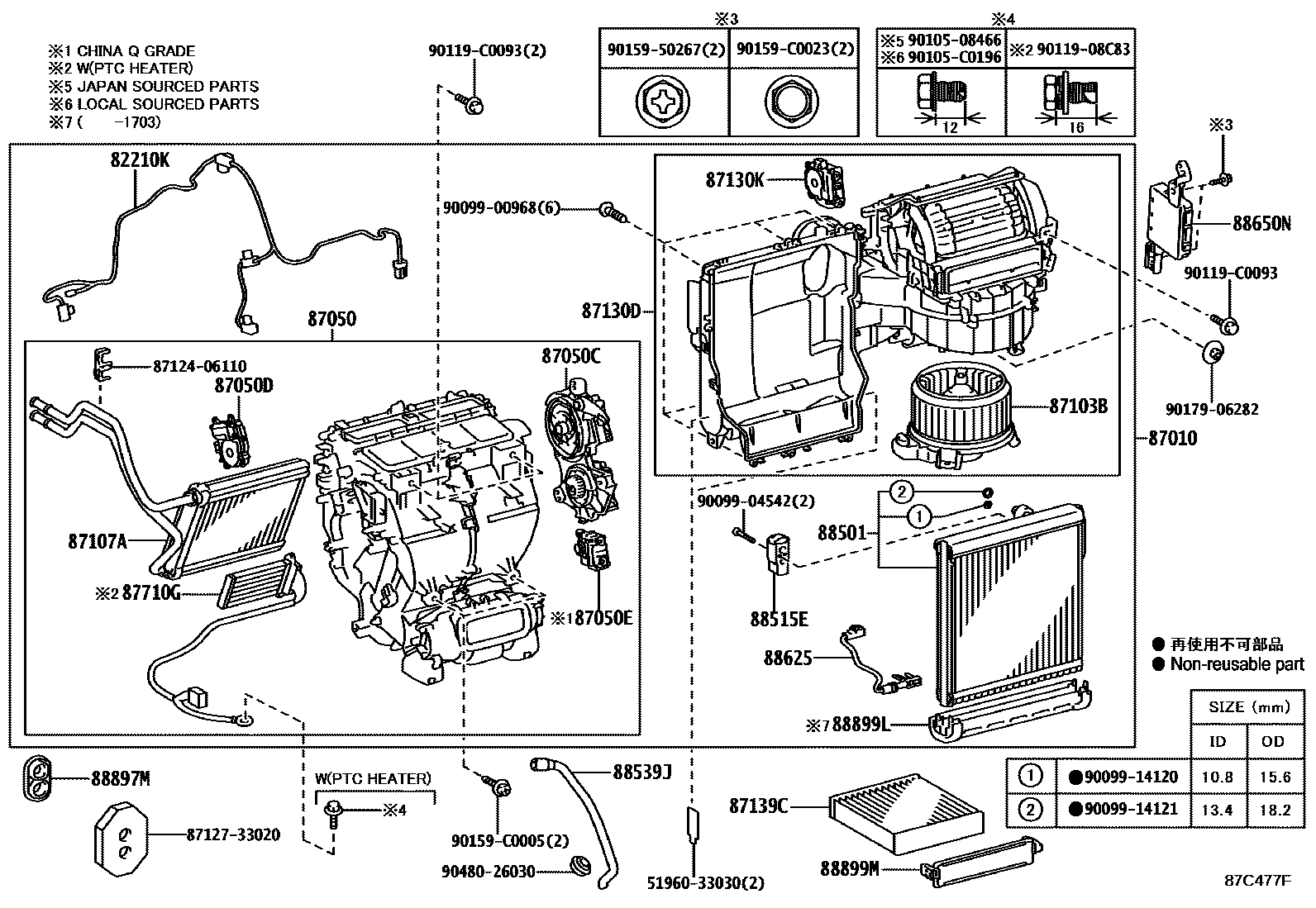

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
CHINA Q GRADE
87010UNIT ASSY, AIR CONDITIONER
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
PTC HEATER-WITH
PTC HEATER-WITH
87050RADIATOR ASSY, AIR CONDITIONER
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
87050EDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.3
CHINA Q GRADE
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
87139CFILTER, CLEAN AIR
MICRO DUST FILTER
DEODORANT FILTER
87710GQUICK HEATER ASSY
PTC HEATER-WITH
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
88515EVALVE, COOLER EXPANSION, W/PACKING
88539JHOSE, DRAIN COOLER
88625THERMISTOR, COOLER, NO.1
88650NAMPLIFIER ASSY, AIR CONDITIONER
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
CHINA Q GRADE
G GRADE
PTC HEATER-WITH
G GRADE
PTC HEATER-WITH
88897MGROMMET (FOR HEATER PIPE)
88899LPARTS, COOLING UNIT
88899MPLATE, COVER(FOR AIR FILTER)
5196033030HOOK ASSY, FRONT
main51960-33030
8712406110CLAMP, HEATER
main87124-06110
8712733020PACKING, HEATER AIR DAMPER
main87127-33020
9009900968
main90099-00968
9009904542
main90099-04542
9009914120
main90099-14120
9009914121
main90099-14121
9010508466
main90105-08466
90105C0196
main90105-C0196
9011908C83
main90119-08C83
90119C0093
main90119-C0093
9015950267
main90159-50267
90159C0005
main90159-C0005
90159C0023
main90159-C0023
9017906282
main90179-06282
9048026030
main90480-26030
36 parts on this diagram · 1 diagram in section
