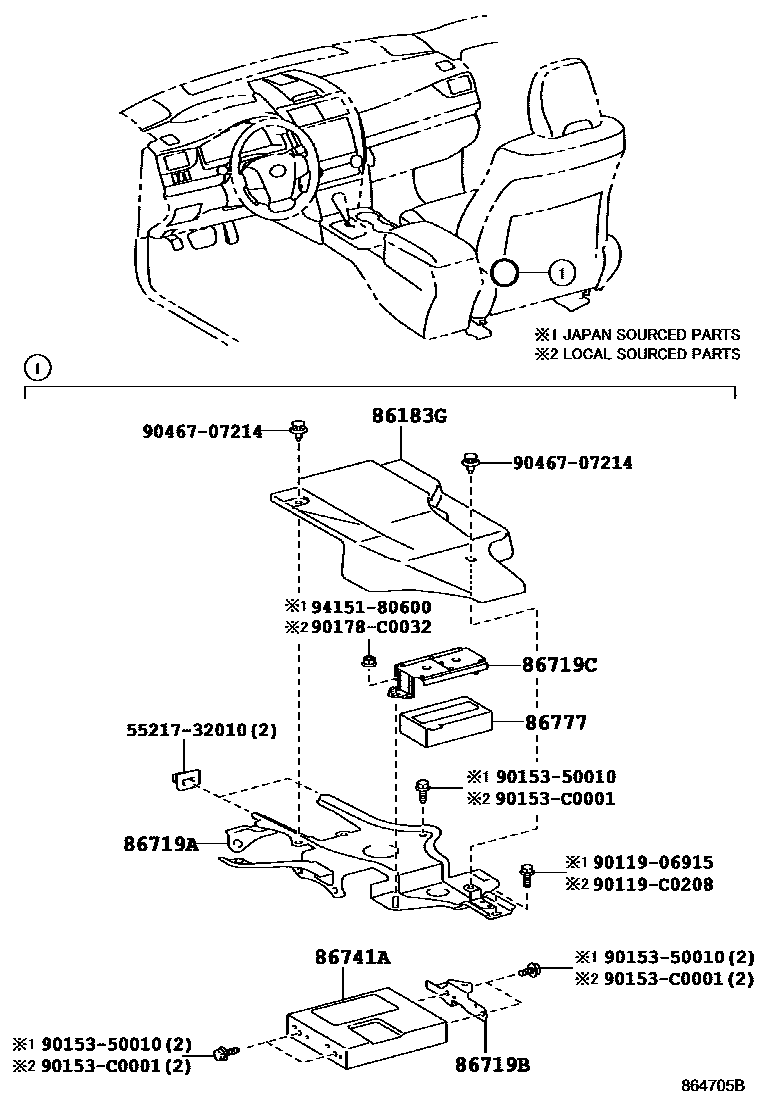

TELEPHONE & MAYDAY

86183GCOVER, AUDIO AMPLIFIER

86719ABRACKET, TELEPHONE NO.1

86719BBRACKET, TELEPHONE NO.2

86719CBRACKET, TELEPHONE NO.3

86741ATRANSCEIVER, TELEMATICS

main86741-06020supersedes 86741-06040iASV50,AVV50..25V,HBD201112-201302

CHINA Q GRADE

main86741-06021supersedes 86741-06040iASV50,AVV50..25V,HBD201303-201410

CHINA Q GRADE

main86741-06022supersedes 86741-06040iASV50,AVV50..25V,HBD201411-201501

CHINA Q GRADE

86777BATTERY, MAYDAY

main86777-0W051supersedes 86777-76040iASV50,AVV50..25V,HBD201112-201212

CHINA Q GRADE

main86777-76030supersedes 86777-76040iASV50,AVV50..25V,HBD201301-201501

CHINA Q GRADE

5521732010STRIP, DASH PANEL SILENCER FINISH

main55217-32010

9011906915

main90119-06915

90119C0208

main90119-C0208

9015350010

main90153-50010

90153C0001

main90153-C0001

90178C0032

main90178-C0032

9046707214

main90467-07214

9415180600

main94151-80600

14 parts on this diagram · 1 diagram in section
