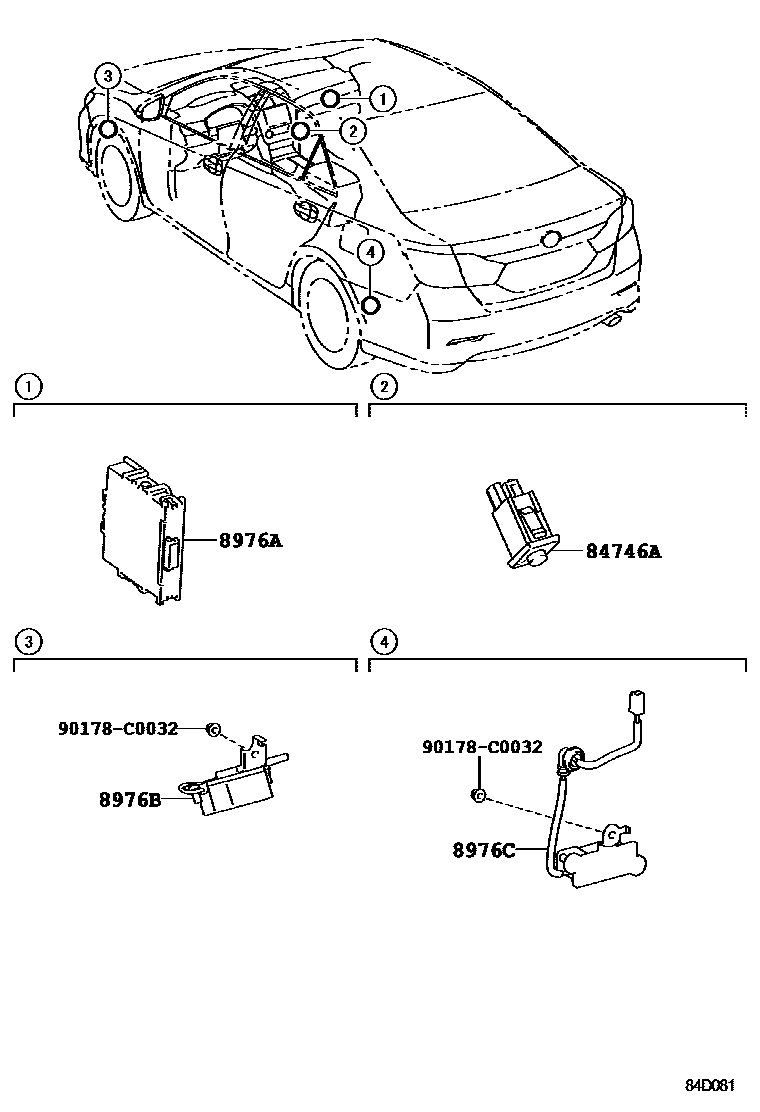

TIRE PRESSURE WARNING SYSTEM

0001 1 0002 1

84746ASWITCH, TIRE PRESSURE WARNING, NO.1

8976ADRIVER, TIRE PRESSURE MONITOR INITIATOR

main8976A-33010iAVV50201205-201501

CHINA Q GRADE

sub8976A-33030

8976BINITIATOR, TIRE PRESSURE MONITOR FRONT

main8976B-33010iAVV50201205-201501

CHINA Q GRADE

sub8976B-33011

8976CINITIATOR, TIRE PRESSURE MONITOR REAR

main8976C-33010iAVV50201205-201501

CHINA Q GRADE

sub8976C-33011

90178C0032

main90178-C0032

5 parts on this diagram · 2 diagrams in section
