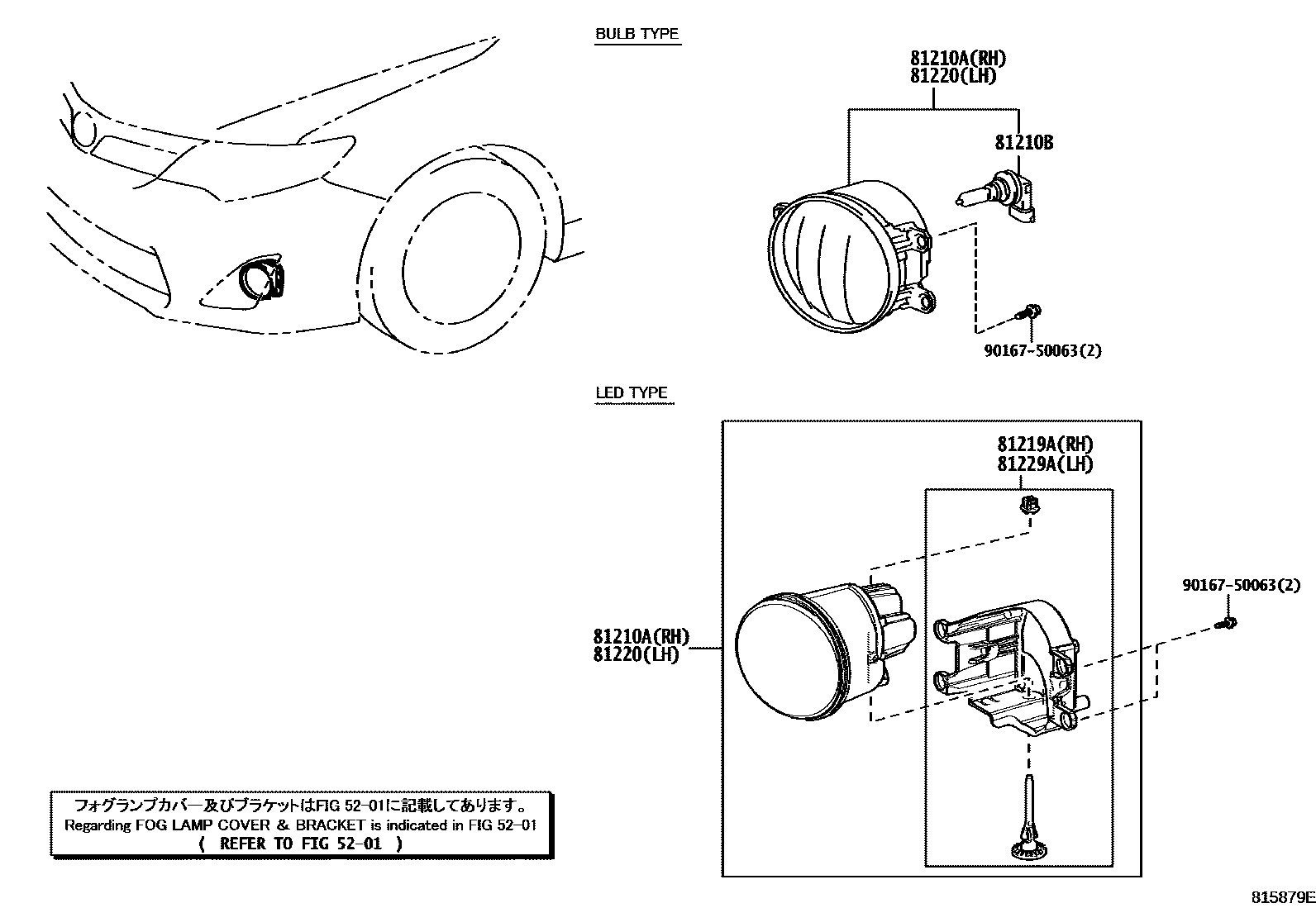

FOG LAMP

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

81210ALAMP ASSY, FOG, RH

main81210-06052iASV50,AVV50..25V,HBD201501-201603

main81210-48051iASV50,AVV50..25V,HBD201608-201711

81210BBULB, FOG LAMP

main90981-13075×2iACV51,ASV50,AVV50201112-201501

12V 55W,HALOGEN,PHILIPS

main90981-13081×2iACV51,ASV50,AVV50201112-201501

12V 55W,HALOGEN,OSRAM

81219ABRACKET, FOG LAMP, RH

main81219-48051iASV50,AVV50..25V,HBD201608-201711

81220LAMP ASSY, FOG, LH

main81220-06052iACV51,ASV50,AVV50201112-201501

main81220-48051iASV50,AVV50..25V,HBD201608-201711

81229ABRACKET, FOG LAMP, LH

main81229-48051iASV50,AVV50..25V,HBD201608-201711

9016750063

main90167-50063

7 parts on this diagram · 1 diagram in section
