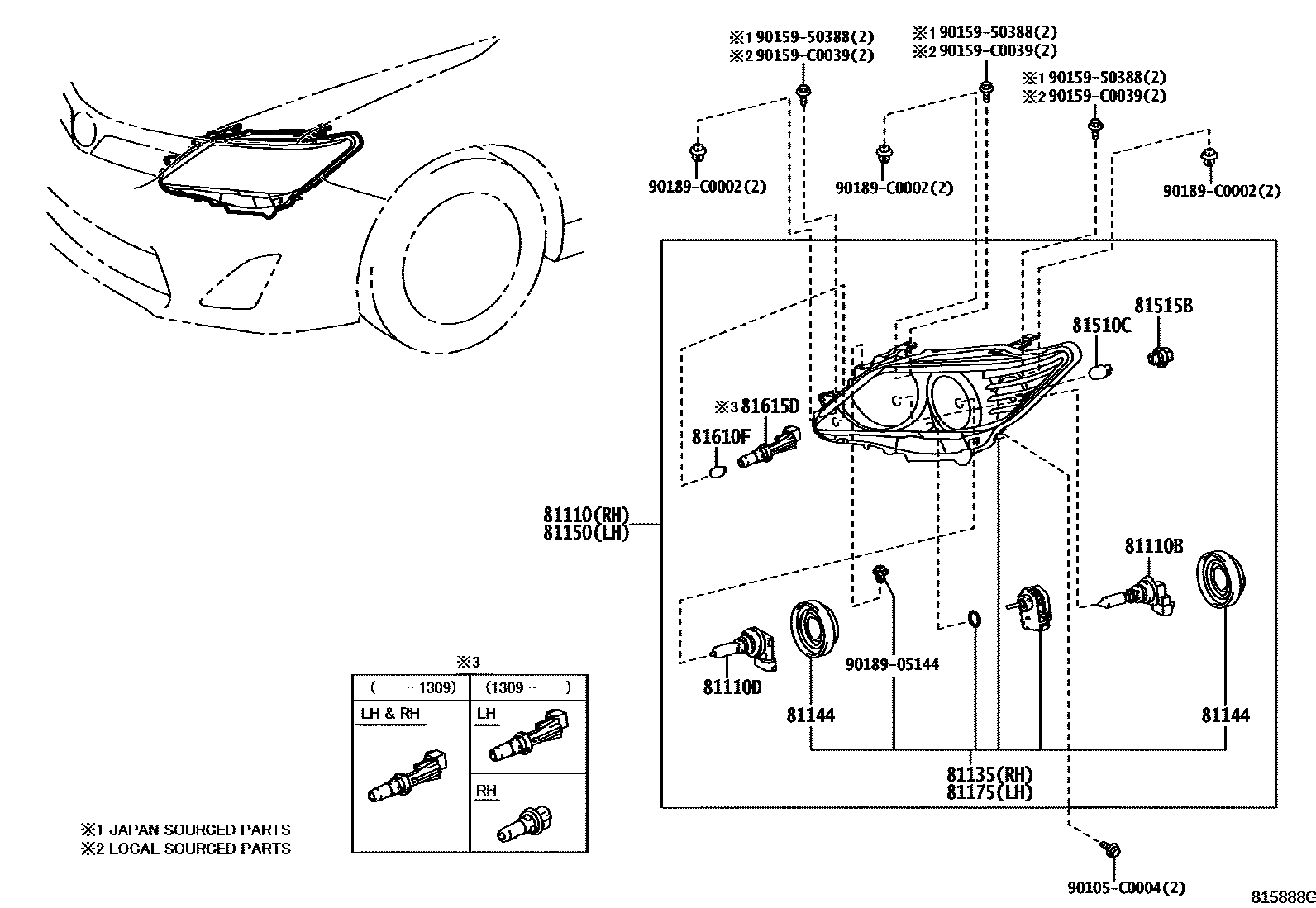

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1DISCHARGE HEADLAMP 0003 1HALOGEN HEADLAMP 0004 1DISCHARGE HEADLAMP 0005 1LED HEADLAMP

81110HEADLAMP ASSY, RH

main81110-06A00iACV51,ASV50..20S,25S,STD201112-201309

VALUE PACKAGE

main81110-06A00iACV51,ASV50..20S,25S,STD201112-201309

CHINA G GRADE&VALUE PACKAGE

main81110-06A01iACV51..STD201309-201501

VALUE PACKAGE

main81110-06A01iASV50..25G201309-201501

CHINA G GRADE&VALUE PACKAGE

main81110-06A10iASV50..25G201112-201501

CHINA G GRADE

main81110-06A20iASV50,AVV50..25V,HBD201112-201501

main81110-06D10iASV5#..20E,20S,25S201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

main81110-06D20iASV50..25G201501

G GRADE

main81110-06D30iASV50,AVV50..25V,HBD201501-201608

main81110-33F00iASV50,AVV50..25V,HBD201608

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13046iASV50,AVV50..25V,HBD201112-201608

12V65W(SAE),60W(ECE)

main90981-13046iAVV50201608

12V65W(SAE),60W(ECE),G GRADE

81110DBULB(FOR HEADLAMP, NO.2)

main90981-13075iACV51,ASV50..20S,25S,STD201112-201501

12V 55W,HALOGEN,VALUE PACKAGE

main90981-13075iASV50..25G201112-201501

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-06A00iACV51,ASV50..20S,25S,STD201112-201501

CHINA G GRADE&VALUE PACKAGE

main81130-06A00iACV51,ASV50..20S,25S,STD201112-201501

VALUE PACKAGE

main81130-06D10iASV51..20E201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

main81145-06A10iASV50..25G201112-201501

CHINA G GRADE

main81145-06A20iASV50,AVV50..25V,HBD201112-201501

main81145-06D20iASV50..25G201501

G GRADE

main81145-06D30iASV50,AVV50..25V,HBD201501-201608

main81145-33F00iASV50,AVV50..25V,HBD201608

81144COVER, HEADLAMP, NO.1

main90075-65006iASV50,AVV50..25G,25V,HBD201112-201501

VALUE PACKAGE

main90075-65006iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE

main90075-65006iASV50,AVV50..25G,25V,HBD201112-201501

CHINA G GRADE&VALUE PACKAGE

main90075-65006iASV50,AVV50..25G,25V,HBD201501

G GRADE

main90075-65006iASV50,AVV50..25G,25V,HBD201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

81150HEADLAMP ASSY, LH

main81150-06A00iACV51..STD201112-201501

CHINA G GRADE&VALUE PACKAGE

main81150-06A00iACV51,ASV50..20S,25S,STD201112-201501

VALUE PACKAGE

main81150-06A10iACV51,AVV50..HBD,STD201112-201501

CHINA G GRADE

main81150-06A20iASV50,AVV50..25V,HBD201112-201501

main81150-06D10iASV5#..20E,20S,25S201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

main81150-06D20iASV50..25G201501

G GRADE

main81150-06D30iASV50,AVV50..25V,HBD201501-201608

main81150-33F00iASV50,AVV50..25V,HBD201608

81175UNIT ASSY, HEADLAMP, LH

main81170-06A00iACV51,ASV50..20S,25S,STD201112-201501

CHINA G GRADE&VALUE PACKAGE

main81170-06A00iACV51,ASV50..20S,25S,STD201112-201501

VALUE PACKAGE

main81170-06D10iASV51..20E201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

main81185-06A10iASV50..25G201112-201501

CHINA G GRADE

main81185-06A20iASV50,AVV50..25V,HBD201112-201501

main81185-06D20iASV50..25G201501

G GRADE

main81185-06D30iASV50,AVV50..25V,HBD201501-201608

main81185-33F00iASV50,AVV50..25V,HBD201608

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15021iACV51,ASV50,AVV50201112-201608

12V 21W,AMBER

81515BSOCKET, FRONT TURN SIGNAL LAMP

main90069-81069iACV51,ASV50,AVV50201112-201501

main90075-60028iASV5#..20E,20S,25G,25S201501-201608

81610FBULB(FOR CLEARANCE LAMP)

main99132-12050iACV51,ASV50,AVV50201112-201501

12V 5W

81615DSOCKET, CLEARANCE LAMP

main90069-81081iASV50..25G201112-201501

LH

main90069-81081iASV50..25G201112-201501

VALUE PACKAGE,LH

main90069-81081iASV50..25G201112-201501

CHINA G GRADE

main90069-81081iACV51,ASV50..20S,25S,STD201112-201309

RH

main90069-81081iACV51,ASV50..20S,25S,STD201112-201309

VALUE PACKAGE,RH

main90075-60077iACV51,ASV50..20S,25S,STD201309-201501

VALUE PACKAGE,RH

main90075-60077iASV50..25G201309-201501

RH

90105C0004

main90105-C0004

9015950388

main90159-50388

90159C0039

main90159-C0039

9018905144

main90189-05144

90189C0002

main90189-C0002

16 parts on this diagram · 5 diagrams in section
