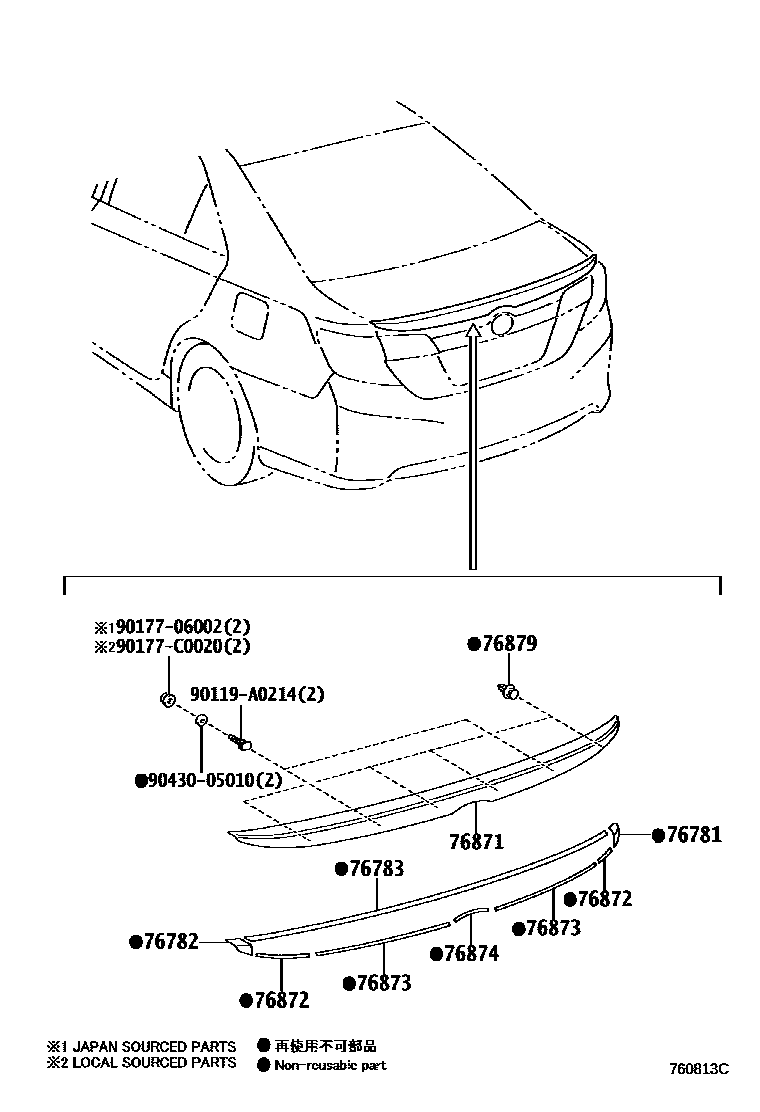

MUDGUARD & SPOILER

76781TAPE, REAR SPOILER, UPPER RH

main76781-06020iACV51,ASV50..20S,25S201112-201501

76782TAPE, REAR SPOILER, UPPER LH

main76782-06020iACV51,ASV50..20S,25S201112-201501

76783TAPE, REAR SPOILER, LOWER RH

main76783-06010iACV51,ASV50..20S,25S201112-201501

76871SPOILER, REAR

main76871-06911iACV51,ASV50..20S,25S201112-201501

PAINT REQ.

76872PROTECTOR, REAR SPOILER, NO.1

main76872-06060iACV51,ASV50..20S,25S201112-201501

76873PROTECTOR, REAR SPOILER, NO.2

main76873-06040iACV51,ASV50..20S,25S201112-201501

76874PROTECTOR, REAR SPOILER, NO.3

main76874-06040iACV51,ASV50..20S,25S201112-201501

76879CLIP, REAR SPOILER, NO.1

main90467-09203iACV51,ASV50..20S,25S201112-201501

90119A0214

main90119-A0214

9017706002

main90177-06002

90177C0020

main90177-C0020

9043005010

main90430-05010

12 parts on this diagram · 1 diagram in section
