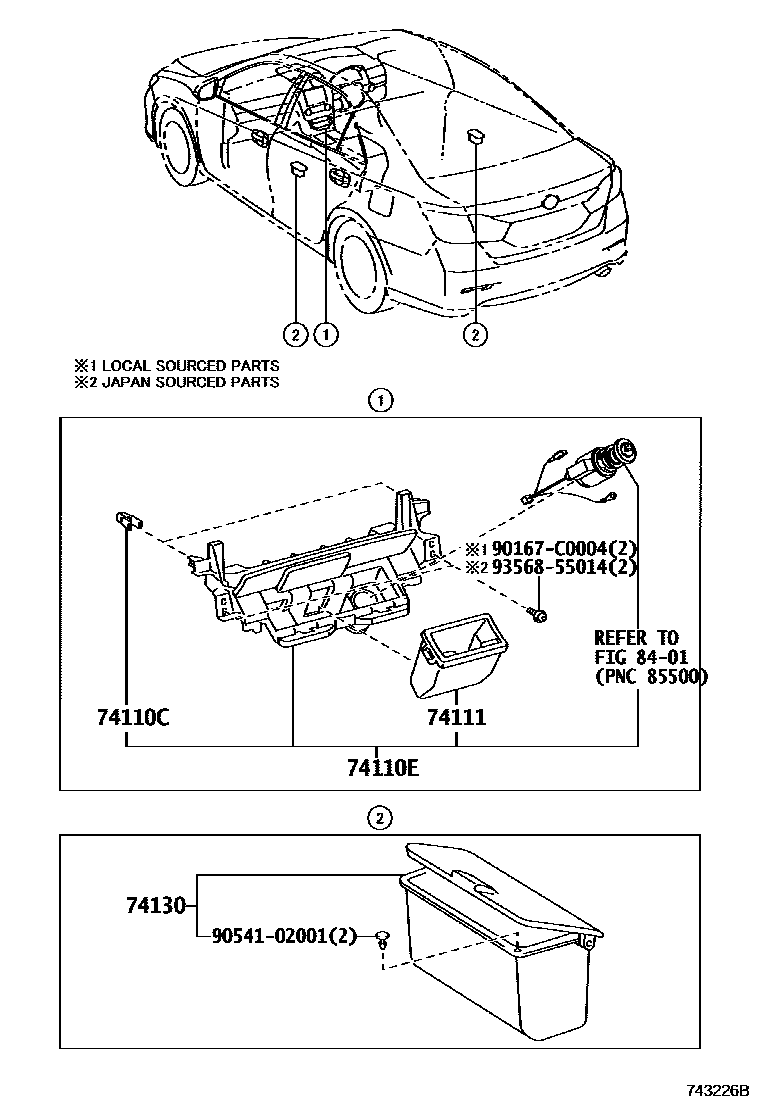

ASH RECEPTACLE

74110CCLIP, FRONT ASH RECEPTACLE, INNER

main90467-10203×2iASV5#,AVV50201501

74110ERECEPTACLE ASSY, FRONT ASH

main74110-06140-E0iASV5#..20E,25G,25V201501-201711

SHELL,TRIM0#,2#

main74110-06180-B0iASV5#..20S,25S201501-201711

GRAY,TRIM0#,2#

main74110-06200-E0iAVV50201501-201711

BROWN,TRIM0#,2#

main74110-06230-E0iAVV50201205-201501

SHELL,TRIM0#,2#

main74110-06290-E0iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#,2#

main74110-06300-B0iACV51,ASV50..20S,25S201112-201501

BLACK,TRIM0#,2#

74111BOX, FRONT ASH RECEPTACLE

main74111-06040iACV51,ASV50,AVV50201112-201501

74130RECEPTACLE ASSY, REAR ASH

main74130-06180-E0×2iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#,2#

main74130-06240-B0×2iACV51,ASV50..20S,25S201112-201501

BLACK,TRIM0#,2#

main74130-06250-E0×2iAVV50201205-201501

SHELL,TRIM0#,2#

main74130-06260-E0×2iASV5#..20E,25G,25V201501-201711

SHELL,TRIM0#,2#

main74130-06270-B0×2iASV5#..20S,25S201501-201711

GRAY,TRIM0#,2#

main74130-06280-E0×2iAVV50201501-201711

BROWN,TRIM0#,2#

8401

90167C0004

main90167-C0004

9054102001

main90541-02001

9356855014

main93568-55014

8 parts on this diagram · 1 diagram in section
