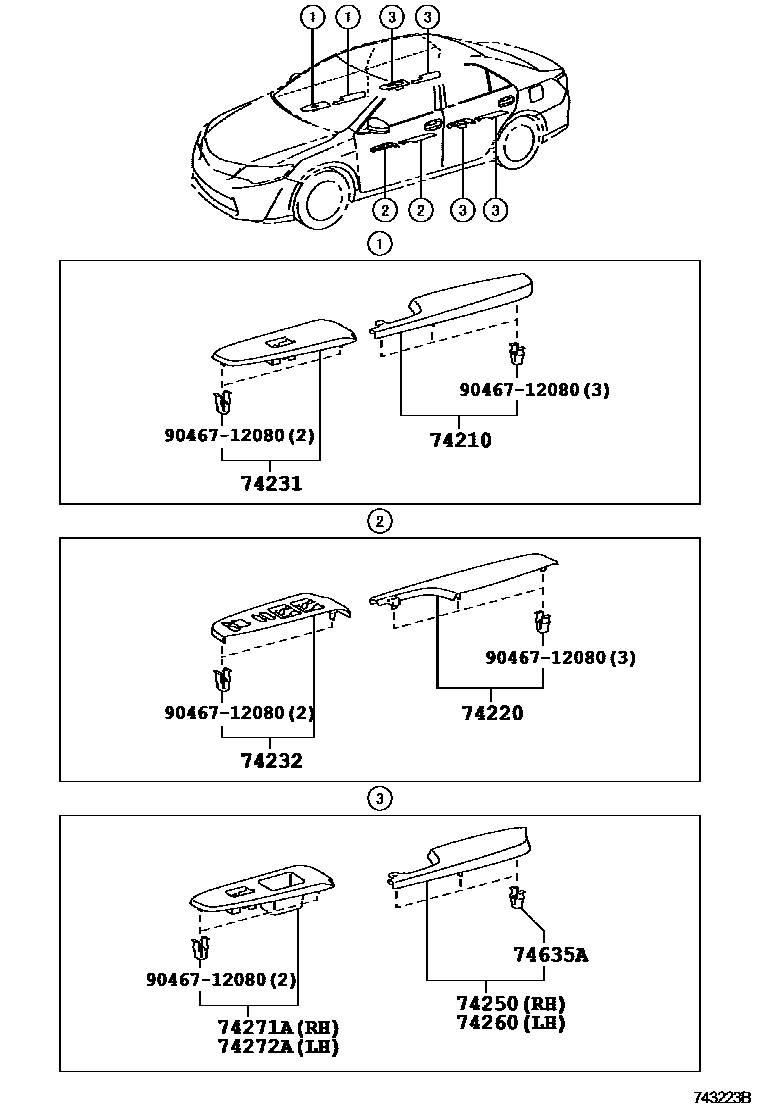

ARMREST & VISOR
74210ARMREST ASSY, FRONT, RH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
74220ARMREST ASSY, FRONT, LH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
74231PANEL, FRONT ARMREST BASE, UPPER RH
SHELL,TRIM0#,2#
BLACK,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
GRAY,TRIM0#,2#
BROWN,TRIM0#,2#
74232PANEL, FRONT ARMREST BASE, UPPER LH
SHELL,TRIM0#,2#
BLACK,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
GRAY,TRIM0#,2#
BROWN,TRIM0#,2#
74250ARMREST ASSY, REAR RH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
74260ARMREST ASSY, REAR LH
SHELL,TRIM0#
FLAXEN,TRIM0#
BLACK,TRIM2#
FLAXEN,TRIM0#
BLACK,TRIM2#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
SHELL,TRIM0#,2#
BLACK,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
GRAY,TRIM0#,2#
BROWN,TRIM0#,2#
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
SHELL,TRIM0#,2#
BLACK,TRIM0#,2#
SHELL,TRIM0#,2#
SHELL,TRIM0#,2#
GRAY,TRIM0#,2#
BROWN,TRIM0#,2#
74635ACLIP
LH
RH
9046712080
main90467-12080
10 parts on this diagram · 2 diagrams in section
