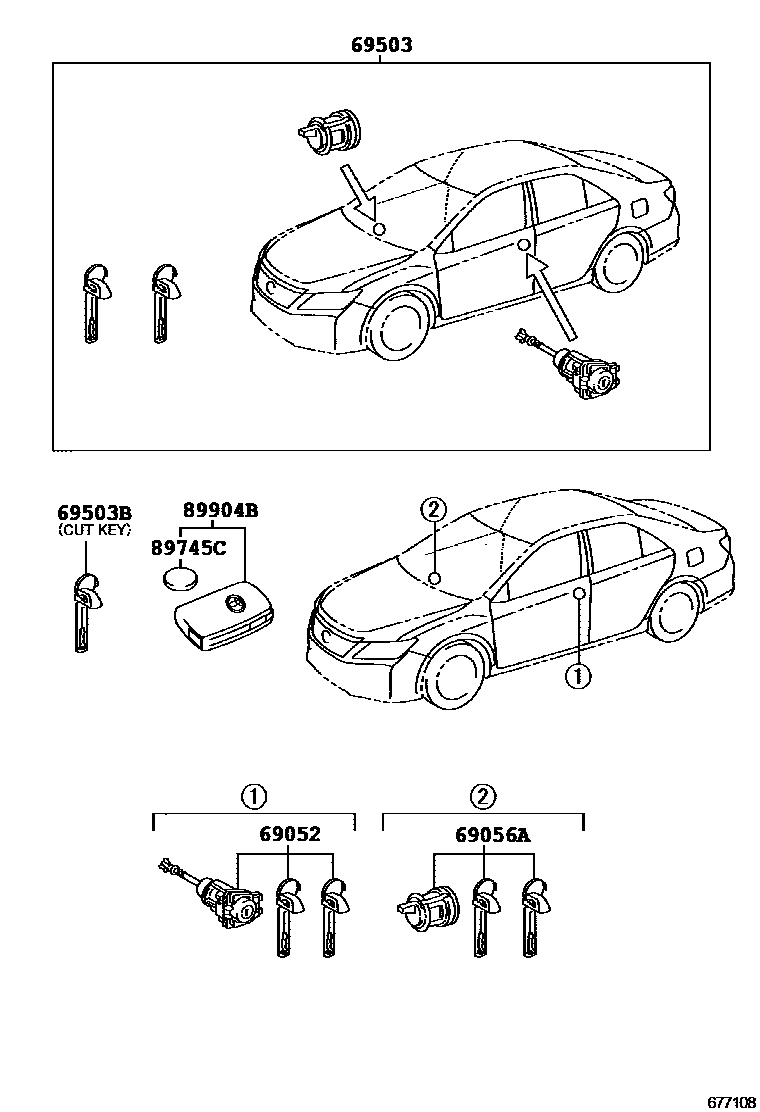

LOCK CYLINDER SET

0001 1WITH(SMART ENTRY) 0002 1WITH(SMART ENTRY) 0004 1WITHOUT(SMART ENTRY) 0005 1WITHOUT(SMART ENTRY)

69052CYLINDER & KEY SET, DOOR LOCK, LH

main69052-06150iASV51201501

main69052-06161iACV51201112-201501

VALUE PACKAGE

main69052-06171iASV50201112-201309

main69052-06220iAVV50201205-201501

69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK

main69056-06070iACV51201112-201501

VALUE PACKAGE

main69056-06090iASV50201112-201309

main69056-06120iAVV50201205-201501

main69056-06130iASV51201501

69503CYLINDER SET, LOCK

main69005-06230iASV50201205-201501

main69005-06551iACV51201112-201501

VALUE PACKAGE

main69005-06561iASV50201112-201309

main89704-06540iASV51201501

69503BKEY, CUT

main69515-33090iASV50201112-201309

MASTER KEY,W(*68)

main69515-33110iAVV50201205-201501

MASTER KEY,W(*68)

89745CBATTERY, TRANSMITTER

main89745-45010iASV50,AVV50201112-201501

CR2032

sub89745-50020

main89745-45010iASV50,AVV50201112-201501

VALUE PACKAGE

sub89745-50020

89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY

main89904-06150iASV50201112-201309

VALUE PACKAGE

main89904-06190iAVV50201205-201501

main89904-06190iASV50201309-201501

VALUE PACKAGE

6 parts on this diagram · 4 diagrams in section
