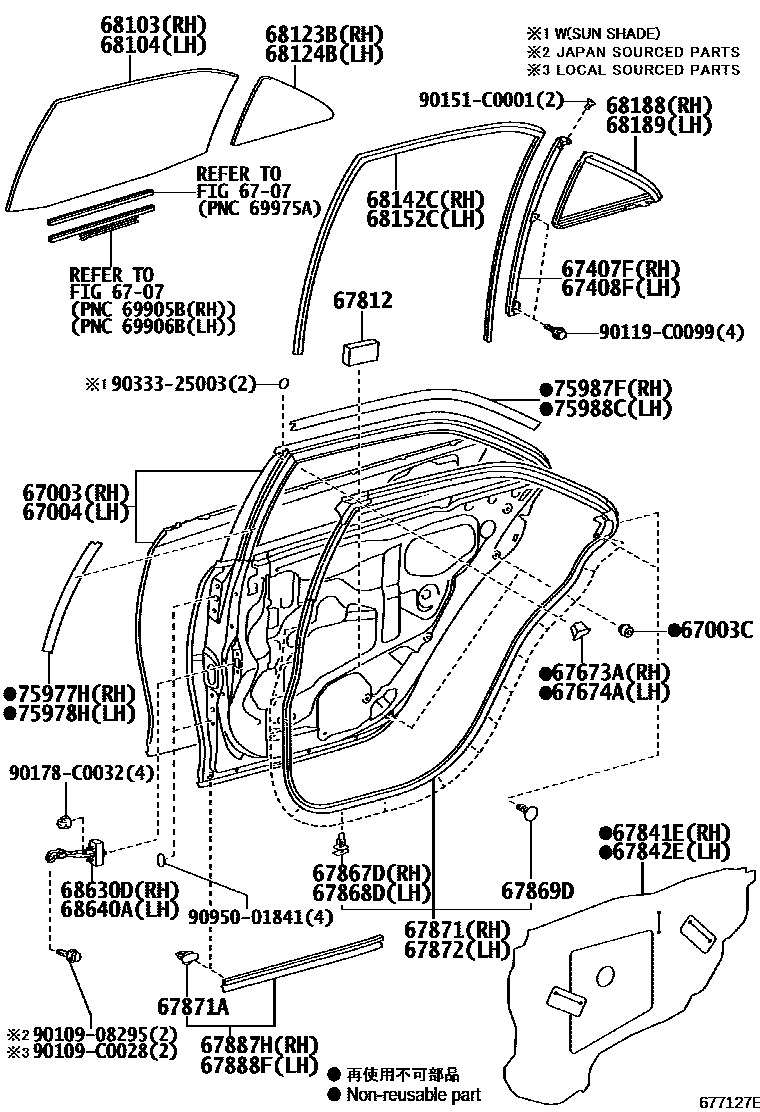

REAR DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-06170iAVV50201501-201711

G GRADE

main67003-06200iASV50,AVV50..25V,HBD201112-201501

67003CCUSHION, REAR DOOR PANEL

main90541-09124×4iASV5#,AVV50201501-201612

main90541-C0003×4iASV5#,AVV50201612

(L)

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-06170iACV51,ASV50..20S,25G,25S,STD201112-201501

main67004-06200iASV50,AVV50..25V,HBD201112-201501

6707

67407FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER RH

main67407-06080iACV51,ASV50,AVV50201112-201501

67408FFRAME SUB-ASSY, REAR DOOR WINDOW, REAR LOWER LH

main67408-06080iASV5#,AVV50201501

67673AGARNISH, REAR DOOR FRAME, RH

main67673-06090iACV51,ASV50,AVV50201112-201501

main67673-06130iASV5#,AVV50201501

67674AGARNISH, REAR DOOR FRAME, LH

main67674-06090iACV51,ASV50,AVV50201112-201501

main67674-06130iASV5#,AVV50201501

67812PAD, REAR DOOR SILENCER

main67811-06050×2iACV51,ASV50,AVV50201112-201501

67841ECOVER, REAR DOOR SERVICE HOLE, RH

main67841-06210iACV51,ASV50,AVV50201112-201501

67842ECOVER, REAR DOOR SERVICE HOLE, LH

main67842-06210iACV51,ASV50,AVV50201112-201501

67867DRETAINER, REAR DOOR WEATHERSTRIP, RH

main67867-0D090×17iASV5#,AVV50201502

main67867-12150×17iASV5#,AVV50201501-201502

67868DRETAINER, REAR DOOR WEATHERSTRIP, LH

main67867-12150×17iACV51,ASV50,AVV50201112-201501

main67868-0D030×17iASV5#,AVV50201502

67869DCLIP, DOOR WEATHERSTRIP

main67868-30030×4iACV51,ASV50,AVV50201112-201501

67871WEATHERSTRIP, REAR DOOR, RH

main67871-06110iACV51,ASV50,AVV50201112-201501

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-0D090×5iASV5#,AVV50201502

RH

main67867-12150×10iACV51,ASV50,AVV50201112-201501

main67868-0D030×5iASV5#,AVV50201502

LH

67872WEATHERSTRIP, REAR DOOR, LH

main67872-06110iACV51,ASV50,AVV50201112-201501

67887HWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-06040iACV51,ASV50,AVV50201112-201501

67888FWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-06030iACV51,ASV50,AVV50201112-201501

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-06200iACV51,ASV50,AVV50201112-201501

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-06200iACV51,ASV50,AVV50201112-201501

68123BGLASS, REAR DOOR QUARTER WINDOW, RH

main68123-06160iACV51,ASV50,AVV50201112-201501

68124BGLASS, REAR DOOR QUARTER WINDOW, LH

main68124-06160iACV51,ASV50,AVV50201112-201501

68142CRUN, REAR DOOR GLASS, RH

main68142-06100iACV51,ASV50,AVV50201112-201501

68152CRUN, REAR DOOR GLASS, LH

main68152-06100iACV51,ASV50,AVV50201112-201501

68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH

main68188-06090iACV51,ASV50,AVV50201112-201501

68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH

main68189-06090iACV51,ASV50,AVV50201112-201501

68630DCHECK ASSY, REAR DOOR, RH

main68630-06102iACV51,ASV50,AVV50201112-201501

main68630-06103iASV5#,AVV50201508

68640ACHECK ASSY, REAR DOOR, LH

main68630-06102iACV51,ASV50,AVV50201112-201501

main68640-06140iASV5#,AVV50201508

75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH

main75977-06070iACV51,ASV50,AVV50201112-201501

75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH

main75978-06070iACV51,ASV50,AVV50201112-201501

75987FSTRIPE, REAR DOOR, OUTSIDE, RH

main75987-06080iAVV50201501

G GRADE

main75987-06130iASV50,AVV50..25V,HBD201501

75988CSTRIPE, REAR DOOR, OUTSIDE LH

main75988-06080iAVV50201501

G GRADE

main75988-06130iASV50,AVV50..25V,HBD201112-201501

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90151C0001

main90151-C0001

90178C0032

main90178-C0032

9033325003

main90333-25003

9095001841

main90950-01841

40 parts on this diagram · 2 diagrams in section
