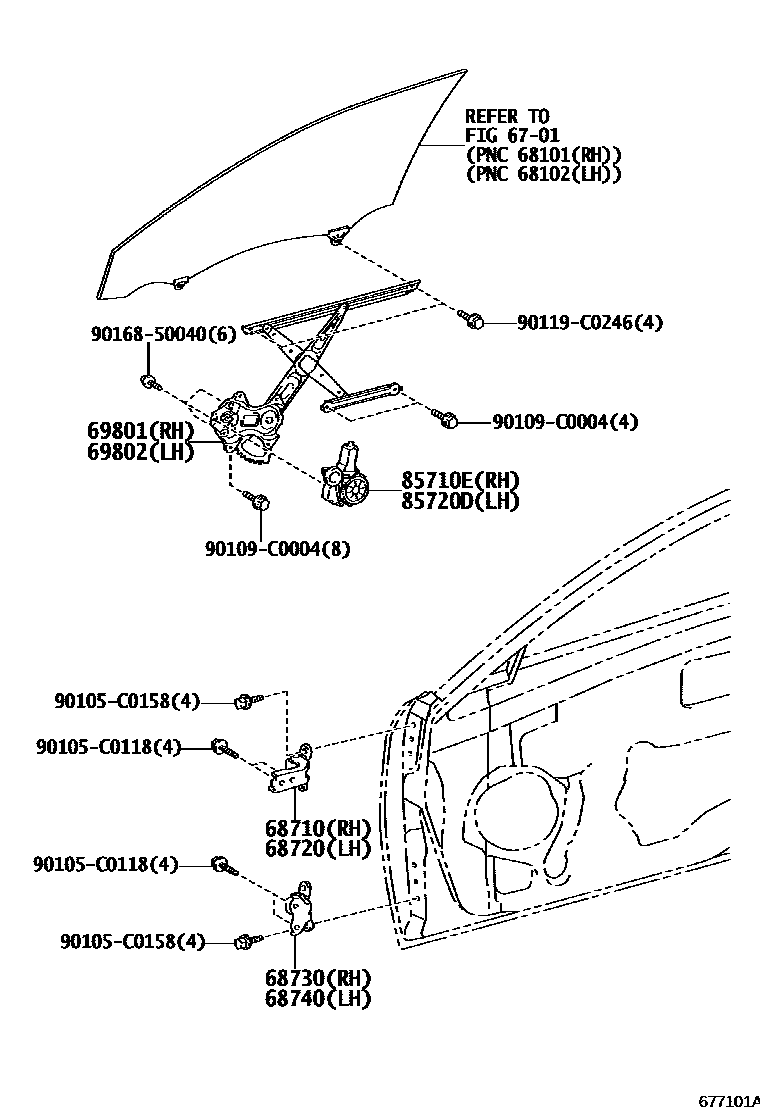

FRONT DOOR WINDOW REGULATOR & HINGE

6701

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-02031iACV51,ASV50,AVV50201112-201501

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-02031iACV51,ASV50,AVV50201112-201501

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-02061iACV51,ASV50,AVV50201112-201501

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-02061iACV51,ASV50,AVV50201112-201501

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-06100iACV51,ASV50,AVV50201112-201501

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-06100iACV51,ASV50,AVV50201112-201501

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-06190iACV51,ASV50,AVV50201112-201501

sub85710-35180

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-06220iACV51,ASV50,AVV50201112-201501

90105C0118

main90105-C0118

90105C0158

main90105-C0158

90109C0004

main90109-C0004

90119C0246

main90119-C0246

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
