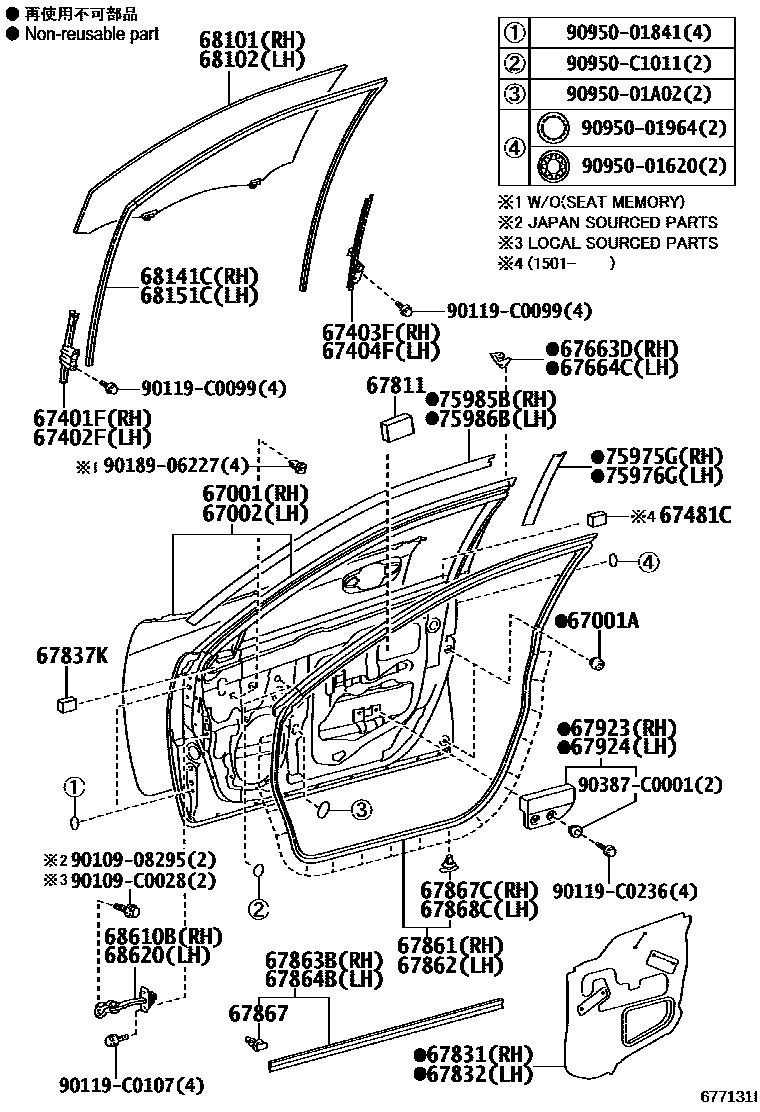

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-06190iASV5#,AVV50201501-201711

sub67001-06900

sub91665-40616

67001ACUSHION, FRONT DOOR PANEL

main90541-09124×4iASV5#,AVV50201501-201612

main90541-C0003×4iASV5#,AVV50201612

(L)

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-06190iACV51,ASV50,AVV50201112-201501

sub67002-06900

sub91665-40616

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-06120iASV5#,AVV50201501

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-06120iASV5#,AVV50201501

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-06100iASV5#,AVV50201501

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-06100iASV5#,AVV50201501

67481CSEAL, FRONT DOOR FRONT LOWER FRAME

main67481-06120×2iASV5#,AVV50201501

67663DGARNISH, DOOR FRAME, RH

main67663-06080iACV51,ASV50,AVV50201112-201501

main67663-06120iASV5#,AVV50201501

67664CGARNISH, DOOR FRAME, LH

main67664-06080iACV51,ASV50,AVV50201112-201501

main67664-06120iASV5#,AVV50201501

67811PAD, FRONT DOOR SILENCER

main67811-06050×2iACV51,ASV50,AVV50201112-201501

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-06150iACV51,ASV50,AVV50201112-201501

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-06150iACV51,ASV50,AVV50201112-201501

67837KSEAL, FRONT DOOR VENT

main67837-06020×2iACV51,ASV50,AVV50201112-201501

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-06110iACV51,ASV50,AVV50201112-201501

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-06110iACV51,ASV50,AVV50201112-201501

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-06030iACV51,ASV50,AVV50201112-201501

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-06030iASV5#,AVV50201501

67867CLIP, DOOR WEATHERSTRIP

main67867-0D070×8iASV5#,AVV50201502

RH

main67867-12150×16iASV5#,AVV50201501-201502

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-0D070×17iASV5#,AVV50201502

main67867-12150×17iASV5#,AVV50201501-201502

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×17iACV51,ASV50,AVV50201112-201501

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-06130iACV51,ASV50,AVV50201112-201501

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67924-06060iASV5#,AVV50201501

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-06220iACV51201112-201501

main68101-06221iASV51201608-201711

main68101-06230iASV50,AVV50201112-201501

main68101-06231iASV50,AVV50201608-201711

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-06220iACV51201112-201501

main68102-06221iASV51201608-201711

main68102-06230iASV50,AVV50201112-201501

main68102-06231iASV50,AVV50201608-201711

68141CRUN, FRONT DOOR GLASS, RH

main68141-06120iACV51,ASV50,AVV50201112-201501

68151CRUN, FRONT DOOR GLASS, LH

main68151-06110iACV51,ASV50,AVV50201112-201501

68610BCHECK ASSY, FRONT DOOR, RH

main68610-06111iACV51,ASV50,AVV50201112-201501

68620CHECK ASSY, FRONT DOOR, LH

main68610-06111iACV51,ASV50,AVV50201112-201501

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-06070iACV51,ASV50,AVV50201112-201501

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-06070iACV51,ASV50,AVV50201112-201501

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-06070iACV51,ASV50,AVV50201112-201501

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-06070iACV51,ASV50,AVV50201112-201501

9010908295

main90109-08295

90109C0028

main90109-C0028

90119C0099

main90119-C0099

90119C0107

main90119-C0107

90119C0236

main90119-C0236

9018906227

main90189-06227

90387C0001

main90387-C0001

9095001620

main90950-01620

9095001841

main90950-01841

9095001964

main90950-01964

9095001A02

main90950-01A02

90950C1011

main90950-C1011

45 parts on this diagram · 2 diagrams in section
