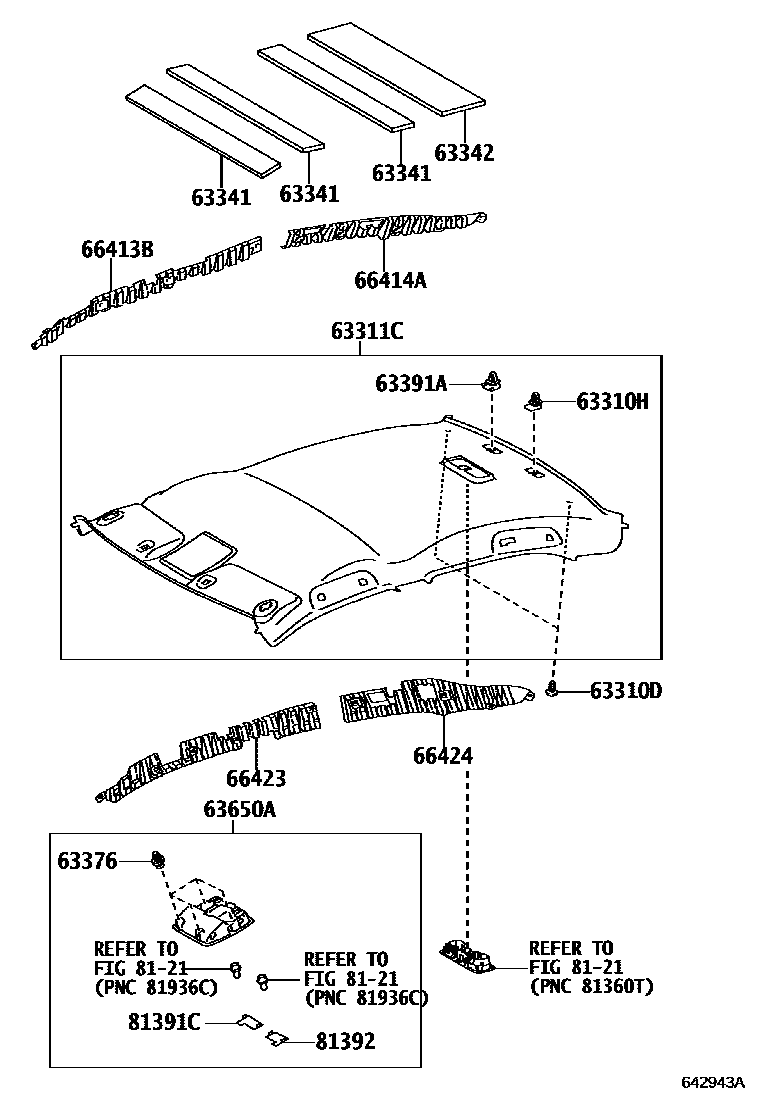

ROOF HEADLINING & SILENCER PAD

0001 1NORMAL ROOF 0002 1 0003 1MOON ROOF

63310DCLIP, ROOF HEADLINING

main90467-05164-A4×2iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main90467-05164-A8×2iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main90467-05164-B6×2iASV5#,AVV50..20S,25G,25S,25V,HBD201501-201711

GRAY,TRIM2#

63310HCLIP(FOR ROOF HEADLINING)

main90467-09126iASV5#,AVV50201501

63311CHEADLINING, ROOF

main63311-06060-A1supersedes 63311-06050-A1iACV51..STD201112-201501

CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0#

main63311-06060-A2supersedes 63311-06220-A0iASV50,AVV50..25G,25V,HBD201501-201711

G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,FLAXEN,TRIM0#

main63311-06060-B1iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201309-201501

CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2#

63341PAD, ROOF SILENCER, NO.1

main63341-06170×3iACV51..STD201112-201501

63342PAD, ROOF SILENCER, NO.2

main63342-06140iACV51..STD201112-201501

63376CLIP, HEADLINING

main90467-10167×2supersedes 90467-10167iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201112-201501

CHINA G GRADE&AUDIO-AVN & 6SPEAKER

63391ACLIP(FOR ROOF HEADLINING TRIM)

main90467-10181iACV51,ASV50,AVV50201112-201501

63650ABOX ASSY, ROOF CONSOLE

main63650-06540-A0iACV51..20S201112-201501

CHINA G GRADE,SHELL,TRIM0#

main63650-06540-B0iACV51..20S201309-201501

AUDIO-CD & 6SPEAKER,GRAY,TRIM2#

main63650-06550-A0supersedes 63650-06530-A0iACV51..STD201112-201501

CHINA G GRADE&AUDIO-AVN & 6SPEAKER,SHELL,TRIM0#

main63650-06550-B0iACV51..STD201309-201501

CHINA G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER,GRAY,TRIM2#

main63650-06660-A0iASV51201501-201711

FLAXEN,TRIM0#

main63650-06660-B0iASV51201501-201711

GRAY,TRIM2#

main63650-06670-A0iAVV50201501-201711

G GRADE,FLAXEN,TRIM0#

main63650-06670-B0iAVV50201501-201711

GRAY,TRIM2#

main63650-06680-B0iASV50,AVV50..25V,HBD201501-201711

GRAY,TRIM2#

main63650-06560-A0supersedes 63650-06680-A0iASV50,AVV50..25V,HBD201112-201501

CHINA Q GRADE,SHELL,TRIM0#

main63650-06560-B0iASV50,AVV50..25V,HBD201309-201501

CHINA Q GRADE,GRAY,TRIM2#

66413BSPACER, SIDE RAIL, FRONT RH

main66413-06150iASV5#..20E,20S,25S201501

66414ASPACER, SIDE RAIL, REAR RH

main62495-06020iASV50,AVV50..25G,25V,HBD201112-201501

main66414-06080iACV51,ASV50..20S,25S,STD201112-201501

66423SPACER, SIDE RAIL, FRONT LH

main66423-06140iACV51,ASV50..20S,25S,STD201112-201501

66424SPACER, SIDE RAIL, REAR LH

main62496-06020iASV50,AVV50..25G,25V,HBD201501

main66424-06080iASV5#..20E,20S,25S201501

8121

81391CHOLDER, LENS, FRONT RH

main81391-06060supersedes 81391-06050iASV5#,AVV50201501-201711

81392HOLDER, LENS, FRONT LH

main81392-06040supersedes 81392-06030iACV51,ASV50,AVV50..20S,25G,25S,25V,HBD201112-201501

CHINA G GRADE&AUDIO-AVN & 6SPEAKER

15 parts on this diagram · 3 diagrams in section
