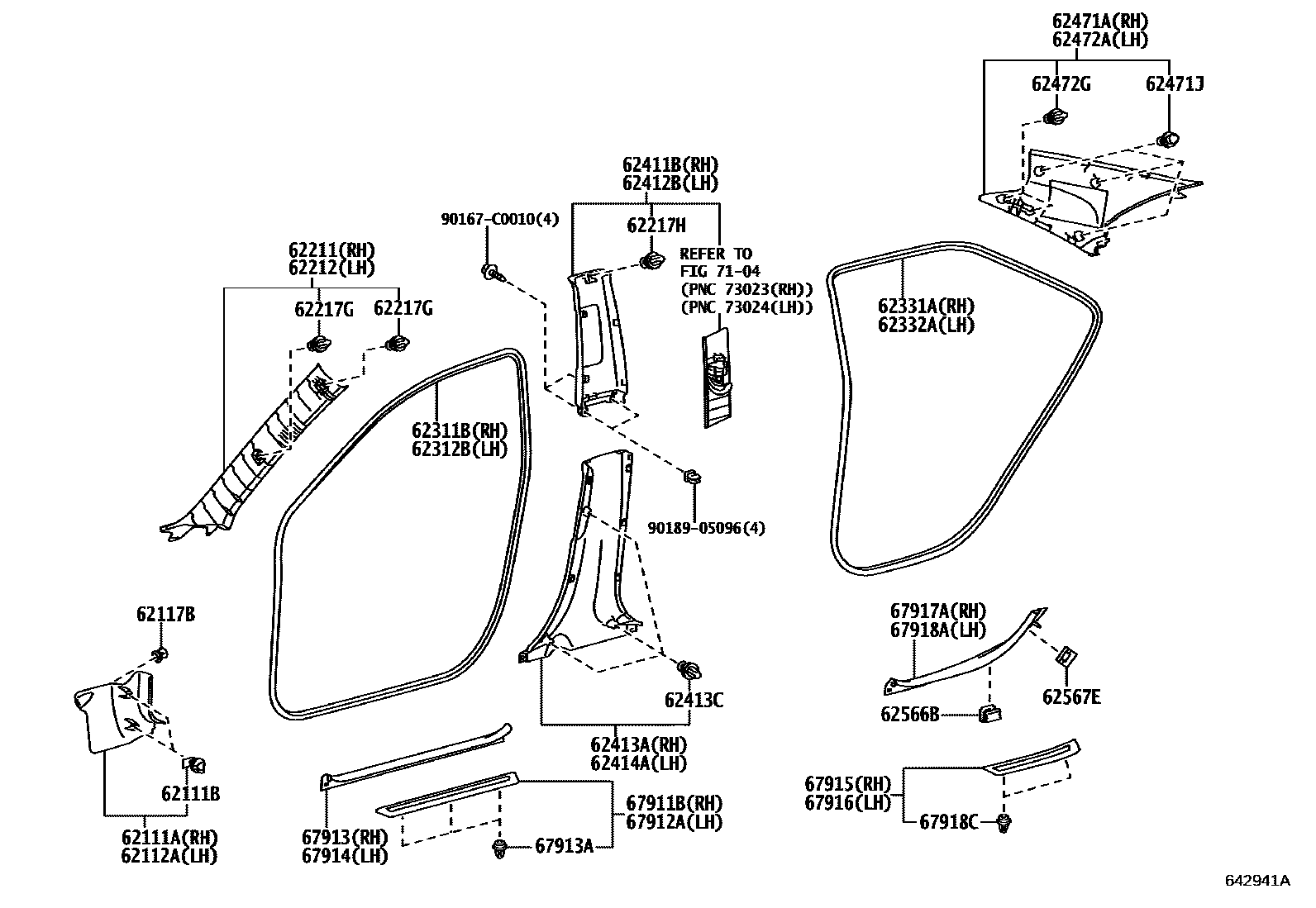

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62111ATRIM SUB-ASSY, COWL SIDE, RH

main62101-06150-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62101-06150-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62101-06150-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62111BCLIP(FOR COWL SIDE TRIM)

main90467-09212iASV5#,AVV50201112-201501

62112ATRIM SUB-ASSY, COWL SIDE, LH

main62102-06150-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62102-06150-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62102-06150-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iACV51,ASV50,AVV50201304-201501

main90467-06193-C0iACV51,ASV50,AVV50201112-201303

BLACK

62211GARNISH, FRONT PILLAR, RH

main62210-06220-A0iACV51,ASV50..20S,25S,STD201112-201501

SHELL,TRIM0#

sub62210-06221

main62210-06220-A1iASV5#..20E,20S,25S201501-201512

FLAXEN,TRIM0#

sub62210-06221

main62210-06220-B0iACV51,ASV50..20S,25S,STD201309-201512

GRAY,TRIM2#

sub62210-06221

main62210-06221-A1iASV51..20E201601-201711

FLAXEN,TRIM0#

main62210-06221-B0iASV5#..20E,20S,25S201601-201711

GRAY,TRIM2#

main62210-06290-A0iASV50,AVV50..25G,25V,HBD201112-201501

SHELL,TRIM0#

sub62210-06291

main62210-06290-A1iASV50,AVV50..25G,25V,HBD201501-201512

FLAXEN,TRIM0#

sub62210-06291

main62210-06290-B0iASV50,AVV50..25G,25V,HBD201309-201512

GRAY,TRIM2#

sub62210-06291

main62210-06291-A1iASV50,AVV50..25G,25V,HBD201601-201711

FLAXEN,TRIM0#

main62210-06291-B0iASV50,AVV50..25G,25V,HBD201601-201711

GRAY,TRIM2#

62212GARNISH, FRONT PILLAR, LH

main62220-06220-A0iACV51,ASV50..20S,25S,STD201112-201501

SHELL,TRIM0#

sub62220-06221

main62220-06220-A1iASV5#..20E,20S,25S201501-201512

FLAXEN,TRIM0#

sub62220-06221

main62220-06220-B0iASV5#..20E,20S,25S201309-201512

GRAY,TRIM2#

sub62220-06221

main62220-06221-A1iASV51..20E201601-201711

FLAXEN,TRIM0#

main62220-06221-B0iASV5#..20E,20S,25S201601-201711

GRAY,TRIM2#

main62220-06290-A0iASV50,AVV50..25G,25V,HBD201112-201501

SHELL,TRIM0#

sub62220-06291

main62220-06290-A1iASV50,AVV50..25G,25V,HBD201501-201512

FLAXEN,TRIM0#

sub62220-06291

main62220-06290-B0iASV50,AVV50..25G,25V,HBD201309-201512

GRAY,TRIM2#

sub62220-06291

main62220-06291-A1iASV50,AVV50..25G,25V,HBD201601-201711

FLAXEN,TRIM0#

main62220-06291-B0iASV50,AVV50..25G,25V,HBD201601-201711

GRAY,TRIM2#

62217GCLIP, FRONT PILLAR GARNISH

main62217-33040iASV50,AVV50..25G,25V,HBD201112-201501

main90467-10161iASV5#..20E,20S,25S201112-201501

62217HCLIP, CENTER PILLER GARNISH

main90467-10167iACV51,ASV50,AVV50201112-201501

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-06150-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62311-06150-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62311-06150-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-06150-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62312-06150-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62312-06150-C0iASV5#,AVV50201309-201711

BLACK,TRIM2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-06140-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62331-06140-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62331-06140-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-06140-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62332-06140-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62332-06140-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62410-06170-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

sub62410-06171

main62410-06170-A1iASV5#,AVV50201501-201512

FLAXEN,TRIM0#

sub62410-06171

main62410-06170-B0iASV5#,AVV50201309-201512

GRAY,TRIM2#

sub62410-06171

main62410-06171-A1iASV5#,AVV50..20E,25G,25V,HBD201601-201711

FLAXEN,TRIM0#

main62410-06171-B0iASV5#,AVV50201601-201711

GRAY,TRIM2#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62420-06170-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

sub62420-06171

main62420-06170-A1iASV5#,AVV50201501-201512

FLAXEN,TRIM0#

sub62420-06171

main62420-06170-B0iACV51,ASV50,AVV50201309-201512

GRAY,TRIM2#

sub62420-06171

main62420-06171-A1iASV5#,AVV50..20E,25G,25V,HBD201601-201711

FLAXEN,TRIM0#

main62420-06171-B0iASV5#,AVV50201601-201711

GRAY,TRIM2#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-06130-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62413-06130-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62413-06130-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62413CCLIP (FOR CENTER LOWER GARNISH)

main90467-10161iACV51,ASV50,AVV50201112-201501

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-06130-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main62414-06130-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main62414-06130-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

62471AGARNISH, ROOF SIDE, INNER RH

main62470-06260-A0iACV51,ASV50..20S,25S,STD201112-201501

SHELL,TRIM0#

main62470-06260-A1iASV5#..20E,20S,25S201501-201711

FLAXEN,TRIM0#

main62470-06260-B0iACV51,ASV50..20S,25S,STD201309-201711

GRAY,TRIM2#

main62470-06300-A0iASV50,AVV50..25G,25V,HBD201112-201501

SHELL,TRIM0#

main62470-06300-A1iASV50,AVV50..25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main62470-06300-B0iASV50,AVV50..25G,25V,HBD201309-201711

GRAY,TRIM2#

62471JCLIP (FOR ROOF SIDE GARNISH)

main90467-A0033iACV51,ASV50,AVV50201112-201501

62472AGARNISH, ROOF SIDE, INNER LH

main62480-06260-A0iACV51,ASV50..20S,25S,STD201112-201501

SHELL,TRIM0#

main62480-06260-A1iASV5#..20E,20S,25S201501-201711

FLAXEN,TRIM0#

main62480-06260-B0iACV51,ASV50..20S,25S,STD201309-201711

GRAY,TRIM2#

main62480-06300-A0iASV50,AVV50..25G,25V,HBD201112-201501

SHELL,TRIM0#

main62480-06300-A1iASV50,AVV50..25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main62480-06300-B0iASV50,AVV50..25G,25V,HBD201309-201711

GRAY,TRIM2#

62472GCLIP (FOR ROOF SIDE GARNISH)

main90467-10188iASV5#,AVV50201112-201501

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010iACV51,ASV50,AVV50201112-201501

62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2

main62567-33040iACV51,ASV50,AVV50201112-201501

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67910-06010iACV51,ASV50,AVV50201112-201501

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67920-06010iASV5#,AVV50201112-201501

67913PLATE, FRONT DOOR SCUFF, RH

main67913-06210-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main67913-06210-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main67913-06210-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

67913ACLIP(FOR SCUFF PLATE)

main90467-10162iACV51,ASV50,AVV50201112-201501

67914PLATE, FRONT DOOR SCUFF, LH

main67914-06210-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main67914-06210-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main67914-06210-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67930-06010iACV51,ASV50,AVV50201112-201501

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67940-06010iACV51,ASV50,AVV50201112-201501

67917APLATE, REAR DOOR SCUFF, RH

main67917-06160-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main67917-06160-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main67917-06160-C0iASV5#,AVV50201309-201711

BLACK,TRIM2#

67918APLATE, REAR DOOR SCUFF, LH

main67918-06160-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main67918-06160-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main67918-06160-C0iACV51,ASV50,AVV50201309-201711

BLACK,TRIM2#

67918CCLIP(FOR REAR SCUFF PLATE)

main90467-10162iACV51,ASV50,AVV50201112-201501

7104

90167C0010

main90167-C0010

9018905096

main90189-05096

36 parts on this diagram · 2 diagrams in section
