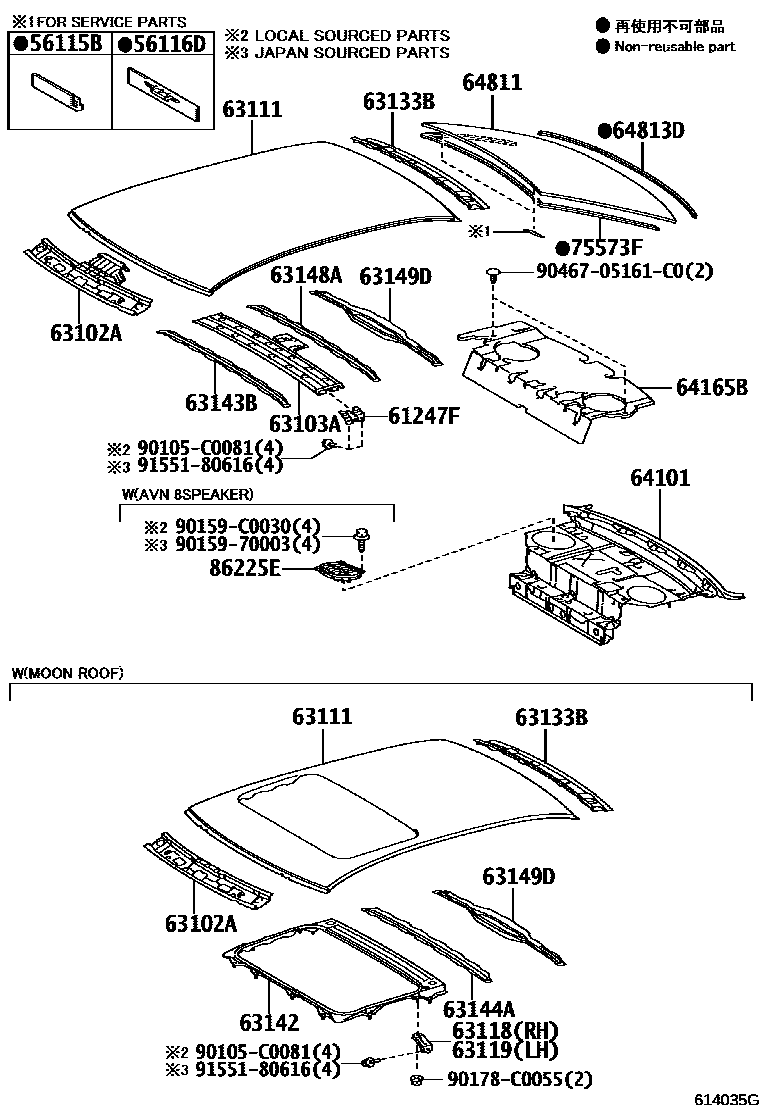

Toyota 280320 — ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116DSTOPPER, BACK WINDOW GLASS, NO.2
61247FREINFORCEMENT, ROOF SIDE RAIL, INNER
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63103AREINFORCEMENT SUB-ASSY, ROOF PANEL
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63133BFRAME, BACK WINDOW
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63148AREINFORCEMENT, ROOF PANEL, NO.7
63149DREINFORCEMENT, ROOF PANEL, NO.8
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
64811GLASS, BACK WINDOW
64813DDAM, BACK WINDOW GLASS ADHESIVE
75573FMOULDING, BACK WINDOW, OUTSIDE
86225ECOVER, SPEAKER, RH
90105C0081
9015970003
90159C0030
90178C0055
9046705161C0
9155180616
26 parts on this diagram · 3 diagrams in section
ROOF PANEL & BACK WINDOW GLASS for Toyota 280320
This section contains 45 genuine Toyota parts for the ROOF PANEL & BACK WINDOW GLASS system of the Toyota 280320. Key components include: STOPPER, BACK WINDOW GLASS, NO.1, STOPPER, BACK WINDOW GLASS, NO.2, REINFORCEMENT, ROOF SIDE RAIL, INNER, PANEL SUB-ASSY, WINDSHIELD HEADER, REINFORCEMENT SUB-ASSY, ROOF PANEL.
