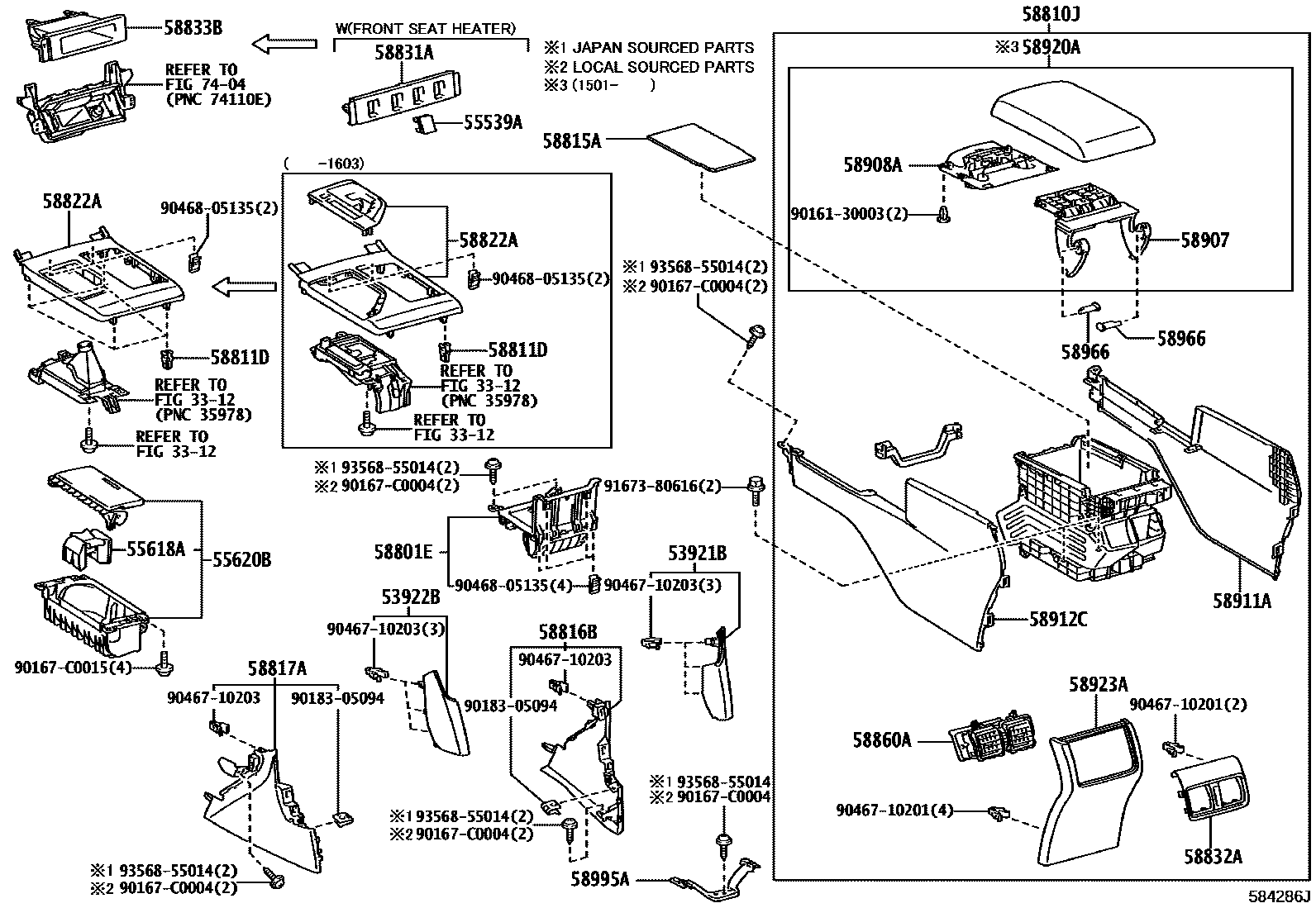

CONSOLE BOX & BRACKET

3312

53921BGARNISH, FRONT PANEL, RH

main53921-06050-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

53922BGARNISH, FRONT PANEL, LH

main53922-06050-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

55539ACOVER, SPARE SWITCH HOLE

main55539-0D100-A1iASV50,AVV50..25V,HBD201408-201501

CHINA G GRADE,SHELL,TRIM0#

main55539-0D100-A1iAVV50201408-201501

SHELL,TRIM0#

main55539-0D100-C0iASV50..25G201408-201501

CHINA Q GRADE,BLACK

main55539-0D100-C0iACV51,AVV50..HBD,STD201408-201501

CHINA G GRADE,BLACK,TRIM2#

main55539-0D100-C0iACV51,AVV50..HBD,STD201408-201501

CHINA G GRADE,BLACK

main55539-0D100-C0iASV50..25G201408-201711

BLACK

main55539-0D100-C0iASV50..25G201408-201501

BLACK,TRIM2#

main55539-0D100-C0iASV50..25G201501-201711

G GRADE,BLACK

main55539-52060-A4iASV50,AVV50..25V,HBD201112-201408

SHELL,TRIM0#

sub55539-52060

main55539-52060-C0iACV51,AVV50..HBD,STD201112-201408

BLACK

sub55539-52060

main55539-52060-C0iACV51,AVV50..HBD,STD201112-201408

CHINA Q GRADE,BLACK

sub55539-52060

main55539-52060-C0iACV51,AVV50..HBD,STD201112-201408

CHINA G GRADE,BLACK

sub55539-52060

main55539-52060-C0iASV50,AVV50..25V,HBD201309-201408

BLACK,TRIM2#

sub55539-52060

main55539-52060-C0iASV50,AVV50..25V,HBD201309-201408

CHINA G GRADE,BLACK,TRIM2#

sub55539-52060

55618AHOLDER, CONSOLE BOX CUP

main55618-06170iASV5#,AVV50201112-201501

55620BHOLDER, INSTRUMENT PANEL CUP

main55620-06370-E0iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#,2#

main55620-06380-B0iACV51,ASV50..20S,25S201112-201501

BLACK,TRIM0#,2#

main55620-06390-E0iAVV50201205-201501

SHELL,TRIM0#,2#

main55620-06490-E0iASV5#..20E,25G,25V201501-201711

SHELL,TRIM0#,2#

main55620-06500-B0iASV5#..20S,25S201501-201608

GRAY,TRIM0#,2#

main55620-06500-B0iASV5#..20S,25S201608-201711

GRAY,TRIM2#

main55620-06510-E0iAVV50201501-201711

BROWN,TRIM0#,2#

58801EBOX SUB-ASSY, CONSOLE, UPPER

main58801-06250-A0iACV51,ASV50,AVV50201112-201501

SHELL,TRIM0#

main58801-06250-A1iASV5#,AVV50201501-201711

FLAXEN,TRIM0#

main58801-06250-C0iASV5#,AVV50201309-201711

BLACK,TRIM2#

58810JBOX ASSY, CONSOLE

main58810-06361-A0iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#

sub58810-06362

main58810-06361-C3iACV51,ASV50..25G,25V,STD201309-201501

BLACK,TRIM2#

sub58810-06362

main58810-06421-A0iACV51,ASV50..20S,25S201112-201309

SHELL,TRIM0#

sub58810-06422

main58810-06421-C1iACV51,ASV50..20S,25S201309-201501

BLACK,TRIM2#

sub58810-06422

main58810-06431-A0iAVV50201205-201501

SHELL,TRIM0#

sub58810-06432

main58810-06431-C1iAVV50201309-201501

BLACK,TRIM2#

sub58810-06432

main58810-06560-A0iASV5#..20E,25G,25V201501-201608

FLAXEN,TRIM0#

sub58810-06561

main58810-06560-C0iASV5#..20E,25G,25V201501-201608

BLACK,TRIM2#

sub58810-06561

main58810-06570-C0iASV5#..20S,25S201501-201608

BLACK,TRIM2#

sub58810-06571

main58810-06580-A0iAVV50201501-201608

FLAXEN,TRIM0#

sub58810-06581

main58810-06580-C0iAVV50201501-201608

BLACK,TRIM2#

sub58810-06581

main58810-06861-A0iASV5#..20E,25G,25V201608-201610

FLAXEN,TRIM0#

main58810-06861-A1iASV5#..20E,25G,25V201610-201711

FLAXEN,TRIM0#

main58810-06861-C0iASV5#..20E,25G,25V201608-201610

BLACK,TRIM2#

main58810-06861-C1iASV5#..20E,25G,25V201610-201711

BLACK,TRIM2#

main58810-06871-C0iASV5#..20S,25S201608-201610

BLACK,TRIM2#

main58810-06871-C1iASV5#..20S,25S201610-201711

BLACK,TRIM2#

main58810-06881-A0iAVV50201608-201610

FLAXEN,TRIM0#

main58810-06881-A1iAVV50201610-201711

FLAXEN,TRIM0#

main58810-06881-C0iAVV50201608-201610

BLACK,TRIM2#

main58810-06881-C1iAVV50201610-201711

BLACK,TRIM2#

58811DCLIP(FOR CONSOLE BOX)

main90467-10203iACV51,ASV50,AVV50201112-201501

58815ACARPET, CONSOLE BOX

main58815-06130iACV51,ASV50,AVV50201112-201501

58816BINSERT, CONSOLE BOX

main58816-06070-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-06060-C0iACV51,ASV50,AVV50201112-201711

BLACK,TRIM0#,2#

58822APANEL, CONSOLE, UPPER REAR

main58822-06900-E0iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#,2#

main58822-06901-B0iACV51,ASV50..20S,25S201112-201501

BLACK,TRIM0#,2#

main58822-06902-E1iAVV50201205-201501

SHELL,TRIM0#,2#

main58822-06903-E3iASV5#..20E,25G,25V201501-201608

SHELL,TRIM0#,2#

main58822-06904-B1iASV5#..20S,25S201501-201608

GRAY,TRIM2#

main58822-06905-E2iAVV50201501-201608

BROWN,TRIM0#,2#

main58822-06A00-E0iASV5#..20E,25G,25V201608-201711

SHELL,TRIM0#,2#

main58822-06A10-B0iASV5#..20S,25S201608-201711

GRAY,TRIM2#

main58822-06A20-E0iAVV50201608-201711

BROWN,TRIM0#,2#

58831AGARNISH, CONSOLE UPPER PANEL, FRONT

main58831-06650iAVV50201205-201501

main58831-06660iASV51..20E201501

G GRADE&VALUE PACKAGE(W/VANITY LAMP)

main58831-06660iASV51..20E201501

G GRADE&AUDIO-DISPLAY AUDIO & 6SPEAKER

main58831-06660iASV50..25G,25V201112-201501

CHINA G GRADE

main58831-06671iASV50,AVV50..25V,HBD201501

58832AGARNISH, CONSOLE UPPER PANEL, REAR

main58832-06030-E0iASV5#..20E,25G,25V201501-201711

SHELL,TRIM0#,2#

main58832-06040-B0iASV5#..20S,25S201501-201711

GRAY,TRIM2#

main58832-06061-E0iACV51,ASV50..25G,25V,STD201112-201501

SHELL,TRIM0#,2#

main58832-06071-B0iACV51,ASV50..20S,25S201112-201501

BLACK,TRIM0#,2#

main58832-06081-E0iAVV50201205-201501

SHELL,TRIM0#,2#

main58832-06210-E0iAVV50201501-201711

BROWN,TRIM0#,2#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58831-06800iACV51,ASV50..20S,25S,STD201112-201608

main58831-06830iASV5#..20E,20S,25S201608

58860AREGISTER ASSY, CONSOLE BOX

main58860-06121-C0iASV5#,AVV50..20E,25G,25V,HBD201501-201610

BLACK,TRIM2#

main58860-06121-C0iACV51,ASV50,AVV50201112-201610

BLACK,TRIM0#,2#

main58860-06121-C1iASV5#,AVV50..20E,25G,25V,HBD201610-201711

BLACK,TRIM0#,2#

main58860-06121-C1iASV5#,AVV50..20E,25G,25V,HBD201610-201711

BLACK,TRIM2#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-06111-A0iACV51,ASV50..20S,25S201112-201501

SHELL,TRIM0#

main58907-06111-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201711

FLAXEN,TRIM0#

main58907-06111-C0iASV5#,AVV50201309-201711

BLACK,TRIM2#

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-06101iACV51,ASV50,AVV50201112-201501

58911APANEL, BOX SIDE, NO.1

main58911-06181-A0iACV51,ASV50,AVV50..25G,25V,HBD,STD201112-201501

SHELL,TRIM0#

sub58911-06182

main58911-06181-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201608

FLAXEN,TRIM0#

sub58911-06182

main58911-06181-C0iACV51,ASV50,AVV50201309-201608

BLACK,TRIM2#

sub58911-06182

main58911-06182-A1iASV5#,AVV50..20E,25G,25V,HBD201608-201711

TRIM0#

main58911-06182-C0iASV5#,AVV50201608-201711

TRIM2#

58912CPANEL, BOX SIDE, NO.2

main58912-06151-A0iACV51,ASV50..20S,25S201112-201501

SHELL,TRIM0#

sub58912-06152

main58912-06151-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201608

FLAXEN,TRIM0#

sub58912-06152

main58912-06151-C0iACV51,ASV50,AVV50201309-201608

BLACK,TRIM2#

sub58912-06152

main58912-06152-A1iASV5#,AVV50..20E,25G,25V,HBD201608-201711

TRIM0#

main58912-06152-C0iASV5#,AVV50201608-201711

TRIM2#

58920AARMREST ASSY, REAR CONSOLE

main58920-06041-A2iASV5#,AVV50..20E,25G,25V,HBD201501-201608

FLAXEN,TRIM0#

main58920-06041-C0iASV5#,AVV50201501-201608

BLACK,TRIM2#

main58920-06190-A0iASV5#,AVV50..20E,25G,25V,HBD201608-201711

FLAXEN,TRIM0#

main58920-06190-C0iASV5#,AVV50201608-201711

BLACK,TRIM2#

58923APANEL, CONSOLE REAR END

main58923-06151-A0iACV51,ASV50,AVV50..25G,25V,HBD,STD201112-201501

SHELL,TRIM0#

sub58923-06152

main58923-06151-A1iASV5#,AVV50..20E,25G,25V,HBD201501-201601

FLAXEN,TRIM0#

sub58923-06152

main58923-06151-C0iACV51,ASV50,AVV50201309-201601

BLACK,TRIM2#

sub58923-06152

main58923-06152-A1iASV5#,AVV50..20E,25G,25V,HBD201601-201711

TRIM0#

main58923-06152-C0iASV5#,AVV50201601-201711

TRIM2#

58966SHAFT, BOX DOOR HINGE

main58966-30030iACV51,ASV50,AVV50201112-201501

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-06170iACV51,ASV50,AVV50201112-201501

7404

9016130003

main90161-30003

90167C0004

main90167-C0004

90167C0015

main90167-C0015

9018305094

main90183-05094

9046710201

main90467-10201

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

9356855014

main93568-55014

35 parts on this diagram · 1 diagram in section
