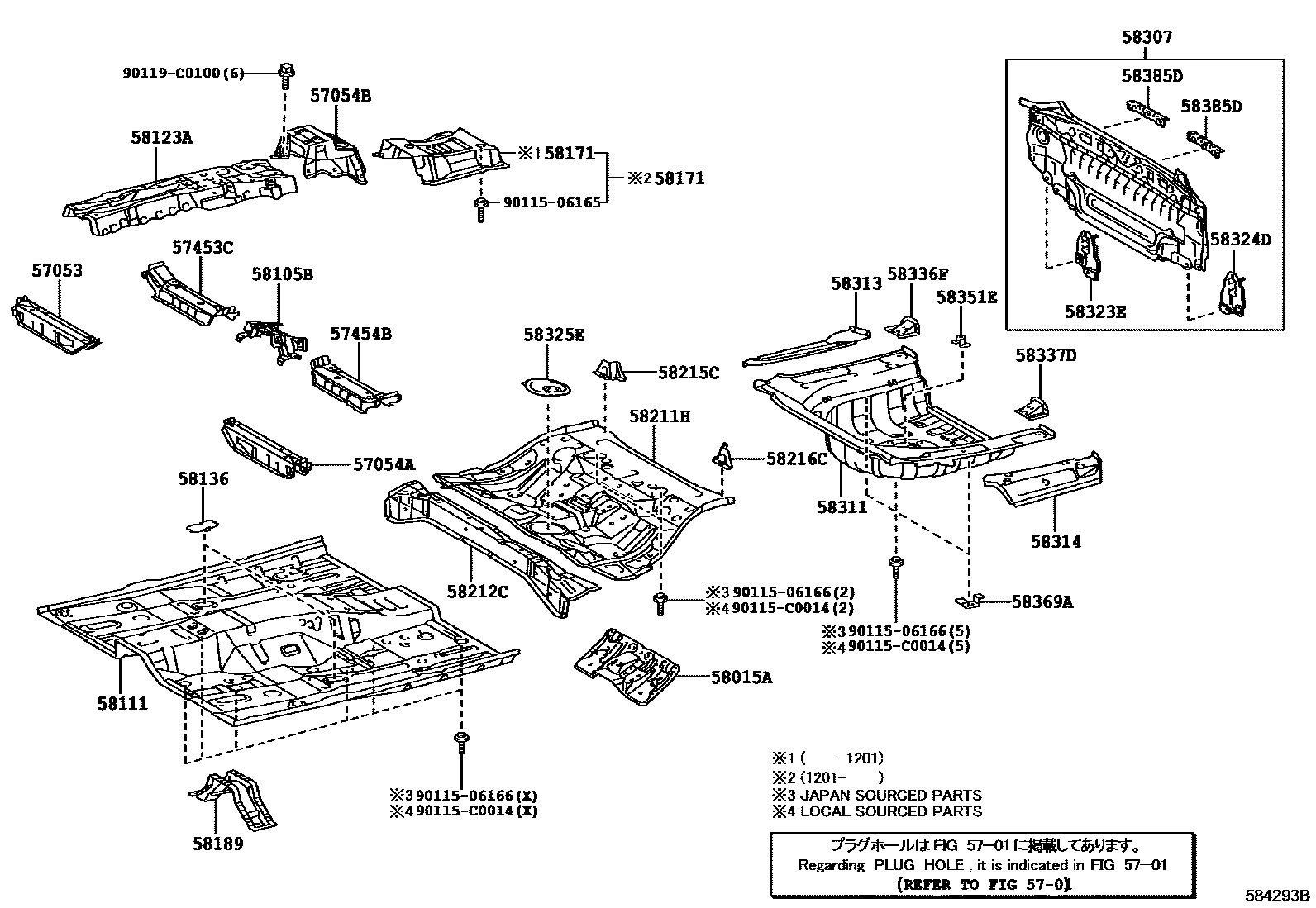

FLOOR PAN & LOWER BACK PANEL
5701
57053REINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, RH
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57054BREINFORCET SUB-ASSY, CROSSMEMBER FLOOR, NO.4
57453CMEMBER, FRONT FLOOR CROSS SIDE, RH
57454BMEMBER, FRONT FLOOR CROSS SIDE, LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58105BPANEL SUB-ASSY, FRONT FLOOR REAR UPPER SUB
58111PAN, FRONT FLOOR
58123ASUPPORT, SHIFT & SELECT LEVER
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58189REINFORCEMENT, EXHAUST PIPE CLAMP BRACKET
58212CPAN, CENTER FLOOR, FRONT
58215CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 RH
58216CREINFORCEMENT, CENTER FLOOR PANEL, NO.2 LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58314PANEL, REAR FLOOR SIDE, LH
58323EREINFORCEMENT, REAR BUMPER ARM SUPPORT, RH
58324DREINFORCEMENT, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336FREINFORCEMENT, REAR FLOOR PAN, RH
58337DREINFORCEMENT, REAR FLOOR PAN, LH
58351EBRACKET, SPARE WHEEL CLAMP
58369ABRACKET, FUEL TUBE, NO.3
58385DBRACKET, REAR BUMPER COVER
9011506165
main90115-06165
9011506166
main90115-06166
90115C0014
main90115-C0014
90119C0100
main90119-C0100
33 parts on this diagram · 5 diagrams in section
