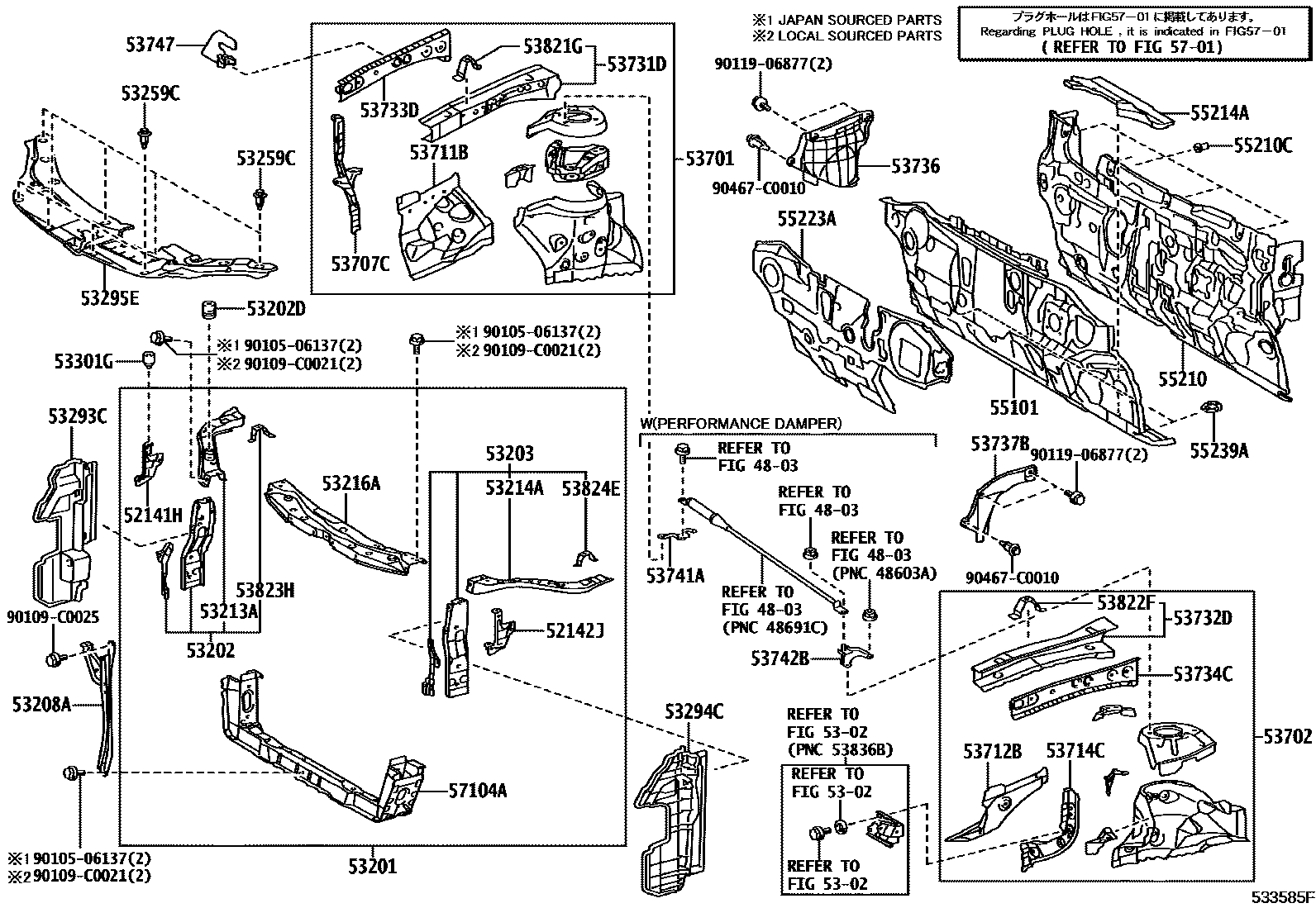

FRONT FENDER APRON & DASH PANEL

4803

52141HARM, FRONT BUMPER, UPPER RH

main52141-06120iACV51,ASV50,AVV50201112-201501

52142JARM, FRONT BUMPER, UPPER LH

main52142-06100iACV51,ASV50,AVV50201112-201501

5302

53201SUPPORT SUB-ASSY, RADIATOR

main53201-06241iACV51,ASV50,AVV50201112-201501

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-06150iACV51,ASV50,AVV50201112-201501

53202DCUSHION, RADIATOR SUPPORT

main90541-15004×2iACV51,ASV50,AVV50201112-201207

main90541-C0001×2iACV51,ASV50,AVV50201208-201501

53203SUPPORT SUB-ASSY, RADIATOR, LH

main53203-06190iACV51,ASV50,AVV50201112-201501

53208ASUPPORT SUB-ASSY, HOOD LOCK

main53208-06100iACV51,ASV50,AVV50201112-201501

sub53001-33010

main53208-06101iASV5#,AVV50201501

53213ASUPPORT, RADIATOR, UPPER RH

main53213-06120iACV51,ASV50,AVV50201112-201501

53214ASUPPORT, RADIATOR, UPPER LH

main53214-06140iACV51,ASV50,AVV50201112-201501

53216ASUPPORT, RADIATOR, UPPER

main53216-06150iACV51,ASV50,AVV50201112-201501

53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL

main90467-07211×9iACV51,ASV50,AVV50201112-201209

main90467-07217×9iACV51,ASV50,AVV50201210-201501

main90467-C0009×9iASV5#,AVV50201611

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-06250iACV51,ASV50201112-201501

main53293-06260iAVV50201205-201501

main53293-06370iASV5#201501-201711

main53293-06390iAVV50201501-201711

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-06240iACV51,ASV50201112-201501

main53294-06250iAVV50201205-201501

main53294-06370iASV5#201501

main53294-06390iAVV50201501

53295ESEAL, COOL AIR INTAKE DUCT

main53295-06080iACV51,ASV50,AVV50201112-201501

main53295-06140iASV5#,AVV50201501

53301GCUSHION, HOOD BUMPER

main90541-09128×2iACV51,ASV50,AVV50201112-201501

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-06190iACV51,ASV50,AVV50201112-201501

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-06170iACV51,ASV50,AVV50201112-201501

53707CEXTENSION SUB-ASSY, FRONT FENDER APRON, FRONT RH

main53707-06050iACV51,ASV50,AVV50201112-201501

53711BAPRON, FRONT FENDER, FRONT RH

main53711-06140iACV51,ASV50,AVV50201112-201501

53712BAPRON, FRONT FENDER, FRONT LH

main53712-06100iACV51,ASV50,AVV50201112-201501

53714CEXTENSION, FRONT FENDER APRON, FRONT LH

main53714-06110iACV51,ASV50,AVV50201112-201501

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-06906iACV51,ASV50,AVV50201112-201501

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-06905iASV5#,AVV50201501

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-06110iACV51,ASV50,AVV50201112-201501

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-06110iASV5#,AVV50201501

53736SEAL, FRONT FENDER APRON, RH

main53736-06060iACV51,ASV50,AVV50201112-201501

53737BSEAL, FRONT FENDER APRON, LH

main53737-06070iASV50,AVV50201112-201501

main53737-06080iACV51201112-201501

53741APLATE, FENDER APRON REINFORCE, RH

main53741-06010iASV5#..20S,25S201501-201711

53742BPLATE, FENDER APRON REINFORCE, LH

main53742-06010iASV5#..20S,25S201501-201711

53747PLATE, AIR SEALED, RH

main53747-06040iACV51,ASV50,AVV50201112-201501

53821GBRACKET, FRONT FENDER, REAR RH

main53821-06080iACV51,ASV50,AVV50201112-201501

53822FBRACKET, FRONT FENDER, REAR LH

main53822-06080iACV51,ASV50,AVV50201112-201501

53823HGUSSET, FRONT FENDER, RH

main53823-06080iACV51,ASV50,AVV50201112-201501

53824EGUSSET, FRONT FENDER, LH

main53824-06080iACV51,ASV50,AVV50201112-201501

55101PANEL SUB-ASSY, DASH

main55101-06510iACV51,ASV50,AVV50201112-201501

55210INSULATOR ASSY, DASH PANEL

main55210-06310iACV51,ASV50201112-201404

main55210-06311iASV5#201501-201608

sub55210-06312

main55210-06313iASV5#201608

main55210-06321iAVV50201205-201404

main55210-06322iAVV50201501-201512

main55210-06323iAVV50201601

55210CCLIP

main90467-06197×4iACV51,ASV50,AVV50201112-201501

55214APAD, DASH PANEL INSULATOR, NO.2

main55214-06080iASV5#,AVV50201501

55223AINSULATOR, DASH PANEL, OUTER

main55223-06350iACV51,ASV50201112-201501

main55223-06351iASV5#201601

main55223-06360iAVV50201205-201501

main55223-06361iAVV50201601

55239APLATE, DASH PANEL INSULATOR, NO.3

main55239-06030×2iACV51,ASV50,AVV50201112-201501

5701

57104AMEMBER SUB-ASSY, FRONT CROSS

main57104-06051iACV51,ASV50,AVV50201112-201501

9010506137

main90105-06137

90109C0021

main90109-C0021

90109C0025

main90109-C0025

9011906877

main90119-06877

90467C0010

main90467-C0010

49 parts on this diagram · 1 diagram in section
