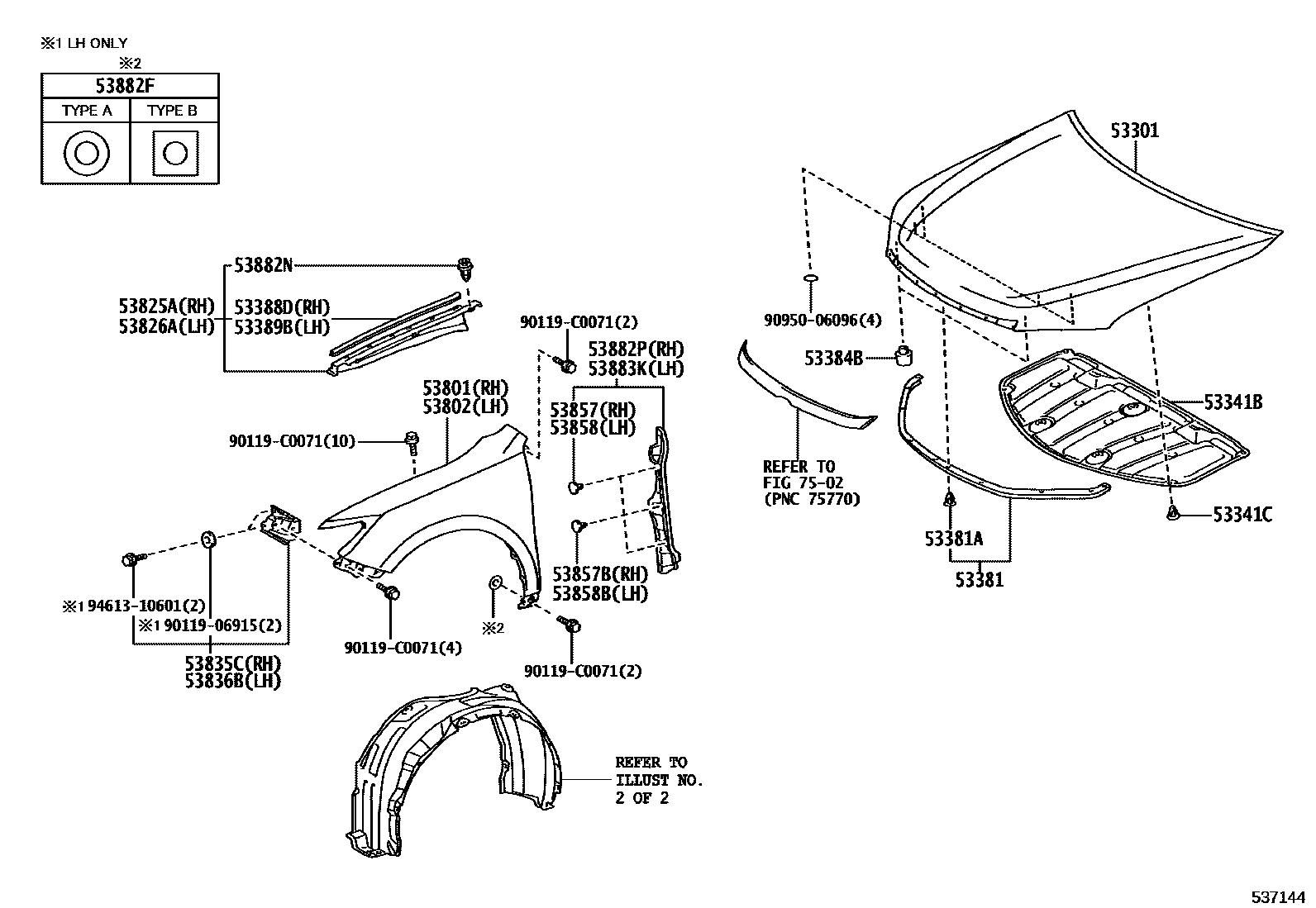

HOOD & FRONT FENDER
53341CCLIP(FOR HOOD INSULATOR)
(J)
(L)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
(J)
(L)
53384BCUSHION, HOOD, CENTER
(L)
(J)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH
(L)
(J)
53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH
53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH
(L)
(J)
53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH
53882FSEAL, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53882NCLIP(FOR FRONT FENDER SEAL)
53882PSEAL, FRONT FENDER, RH
53883KSEAL, FRONT FENDER, LH
7502
9011906915
main90119-06915
90119C0071
main90119-C0071
9095006096
main90950-06096
9461310601
main94613-10601
27 parts on this diagram · 2 diagrams in section
