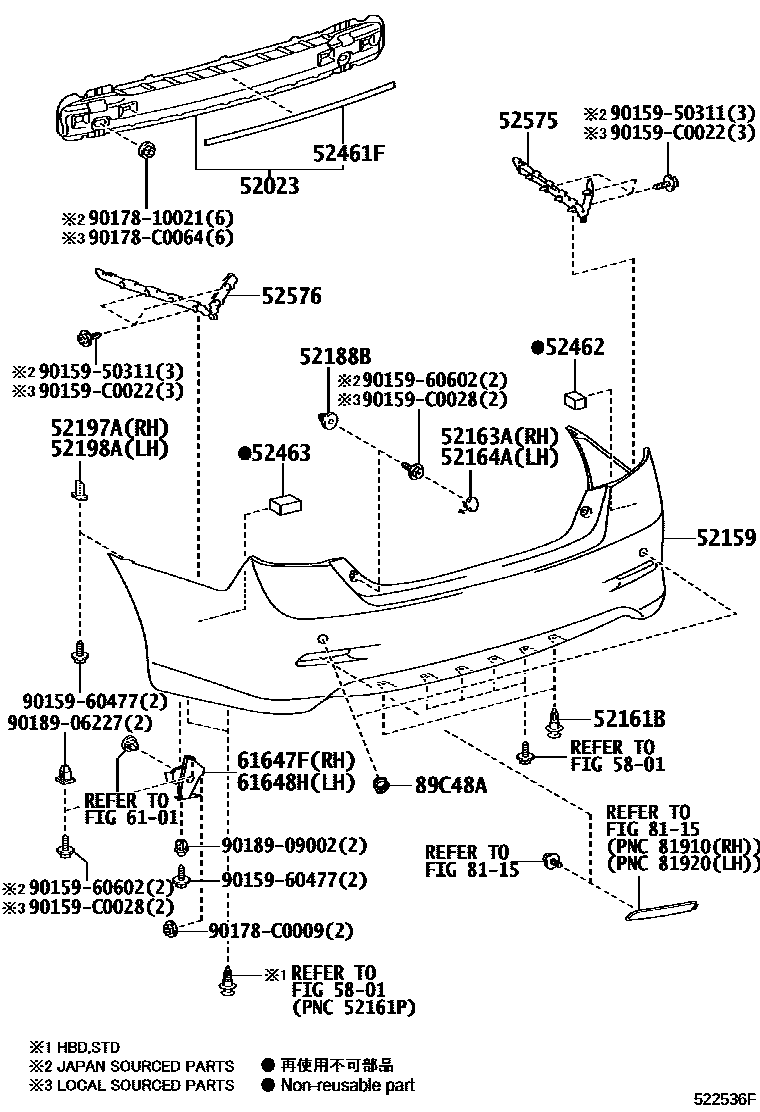

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-06190iACV51,ASV50,AVV50201112-201501

main52023-06200iASV5#,AVV50201501

52159COVER, REAR BUMPER

main52159-06978iACV51,ASV50..25G,STD201112-201501

PAINT REQ.

main52159-06979iASV50,AVV50..25V,HBD201112-201501

PAINT REQ.

main52159-06980iACV51,ASV50..20S,25S201112-201501

PAINT REQ.

main52159-06992iASV5#..20E,20S,25G,25S201501-201711

PAINT REQ.,G GRADE

main52159-06993iASV50,AVV50..25V,HBD201501-201711

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-02040×2iACV51,ASV50,AVV50201302-201501

main52161-16010×2iACV51,ASV50,AVV50201112-201301

sub52161-0K040

52163APLATE, REAR BUMPER, RH

main52163-06913iASV5#,AVV50201501

52164APLATE, REAR BUMPER, LH

main52164-06913iACV51,ASV50,AVV50201112-201501

52188BSPACER, REAR BUMPER MOUNTING

main52188-06040×2iACV51,ASV50,AVV50201112-201501

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-06010iACV51,ASV50,AVV50201112-201501

52198ABRACKET, REAR BUMPER SEAL, LH

main52197-06010iACV51,ASV50,AVV50201112-201501

52461FPAD, REAR BUMPER

main52461-06050iACV51,ASV50,AVV50201112-201501

52462PAD, REAR BUMPER, RH

main52462-06060iASV5#,AVV50201501

main52462-06110iACV51,ASV50,AVV50..25G,25V,HBD,STD201112-201501

main52462-06150iACV51,ASV50..20S,25S201112-201501

52463PAD, REAR BUMPER, LH

main52463-06020iACV51,ASV50,AVV50..25G,25V,HBD,STD201112-201501

main52463-06060iACV51,ASV50..20S,25S201112-201501

main52463-06080iASV5#,AVV50201501

52575RETAINER, REAR BUMPER SIDE, RH

main52575-06110iACV51,ASV50,AVV50201112-201308

main52575-06111iACV51,ASV50,AVV50201309-201501

52576RETAINER, REAR BUMPER SIDE, LH

main52576-06110iACV51,ASV50,AVV50201112-201308

main52576-06111iACV51,ASV50,AVV50201309-201501

5801

6101

61647FREINFORCEMENT, WHEEL HOUSE, RH

main61647-06100iACV51,ASV50,AVV50201112-201501

main61647-06110iASV5#,AVV50201501

61648HREINFORCEMENT, WHEEL HOUSE, LH

main61648-06100iACV51,ASV50,AVV50201112-201501

main61648-06110iASV5#,AVV50201501

8115

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

main89348-06030-A0×2iASV50,AVV50..25V,HBD201501-201711

G GRADE,WHITE PEARL CS.,070

main89348-06030-B0×2iASV50,AVV50..25V,HBD201112-201501

SILVER ME.,1D4

main89348-06030-B1×2iASV50,AVV50..25V,HBD201112-201501

GRAY ME.,1G3

main89348-06030-B3×2iASV50,AVV50..25V,HBD201501-201711

GRAY M.M.,1H1

main89348-06030-C0×2iASV50,AVV50..25V,HBD201112-201501

ATTITUDE BLACK MC.,218

main89348-06030-C1×2iASV50,AVV50..25V,HBD201603-201711

G GRADE,BLACK MC.,209

main89348-06030-D0×2iASV50,AVV50..25V,HBD201309-201501

CHINA G GRADE,RED M.M.,3R3

main89348-06030-D1×2iASV50,AVV50..25V,HBD201501-201711

G GRADE,RED MC.,3T3

main89348-06030-E0×2iASV50,AVV50..25V,HBD201112-201309

BEIGE ME.,4T8

main89348-06030-E1×2iASV50,AVV50..25V,HBD201603-201711

E GRADE,DK. BROWN M.M.,4U3

main89348-06030-J1×2iASV50,AVV50..25V,HBD201112-201501

TRUE BLUE M.M.,8W1

main89348-06030-J2×2iASV50,AVV50..25V,HBD201501-201711

G GRADE,GRAYISH BLUE M.M.,8V5

9015950311

main90159-50311

9015960477

main90159-60477

9015960602

main90159-60602

90159C0022

main90159-C0022

90159C0028

main90159-C0028

9017810021

main90178-10021

90178C0009

main90178-C0009

90178C0064

main90178-C0064

9018906227

main90189-06227

9018909002

main90189-09002

29 parts on this diagram · 2 diagrams in section
