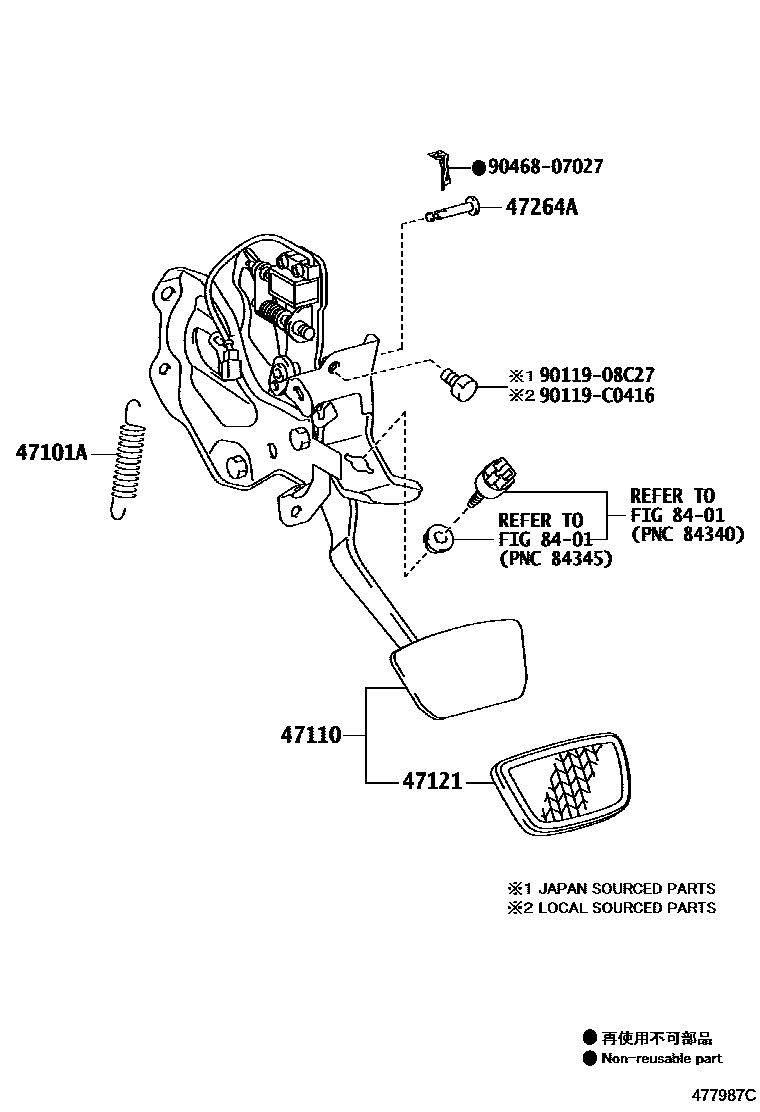

BRAKE PEDAL & BRACKET

0001 1W(VSC) 0002 1W/O(VSC) 0003 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12046iASV5#,AVV50201501

47110SUPPORT ASSY, BRAKE PEDAL

main47110-06400iASV5#..20E,25G,25V201501-201606

main47110-06401iASV5#..20E,25G,25V201607-201711

main47110-06410iASV50..25S201112-201501

main47110-06411iASV5#..20S,25S201607-201711

main47110-06420iACV51..STD201112-201501

main47110-06430iACV51..20S201112-201501

main47110-06440iAVV50201205-201206

main47110-06441iAVV50201501-201711

47121PAD, BRAKE PEDAL

main47121-06010iACV51,ASV50,AVV50..25G,25V,HBD,STD201204-201501

main47121-50020iACV51,ASV50..25G,25V,STD201112-201203

main47121-53010iACV51,ASV50..20S,25S201112-201501

47264APIN(FOR PUSH ROD)

main90240-08081iACV51,AVV50201112-201501

main90249-06180iASV5#201501-201611

main90249-C0003iASV5#201611

(L)

8401

9011908C27

main90119-08C27

90119C0416

main90119-C0416

9046807027

main90468-07027

8 parts on this diagram · 3 diagrams in section
