Toyota 280320 — PARKING BRAKE & CABLE

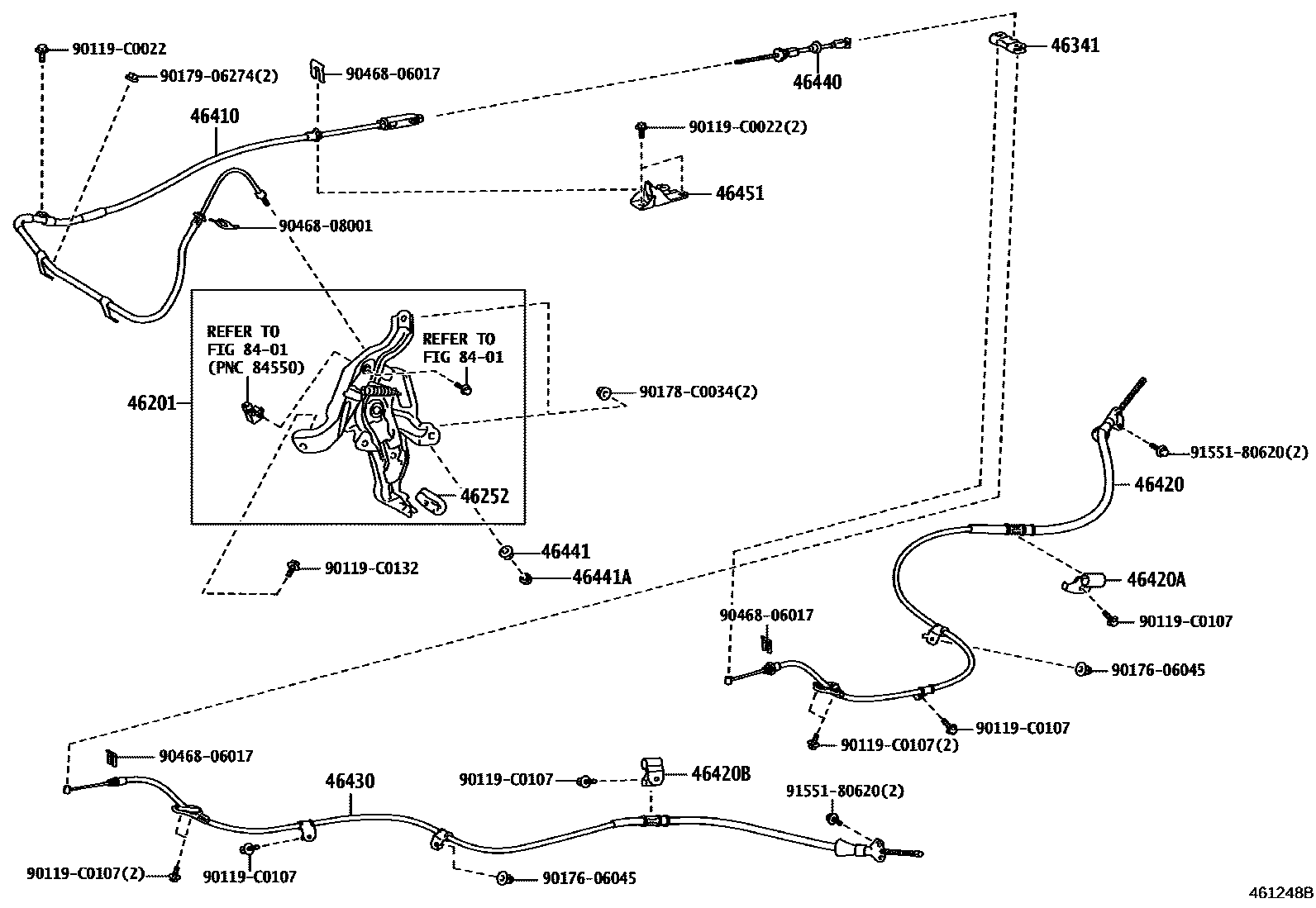

Parts diagram
46201PEDAL SUB-ASSY, PARKING BRAKE
46201-06210
46252PAD, PARKING PEDAL
46252-06040
46341EQUALIZER, PARKING BRAKE
46341-06050
46410CABLE ASSY, PARKING BRAKE, NO.1
46410-06180
46420CABLE ASSY, PARKING BRAKE, NO.2
46420-06140
46420-06141
46420-06191
90949-01C61
90949-01C62
46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)
46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)
46430CABLE ASSY, PARKING BRAKE, NO.3
46430-06140
46430-06141
46430-06181
46440CABLE ASSY, PARKING BRAKE, NO.4
46440-06110
46441NUT, WIRE ADJUSTING, NO.1
90182-06008
90179-06299
46441ANUT, WIRE ADJUSTING, NO.2
46451BRACKET, CABLE SUPPORT
46451-33100
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90119C0022
90119-C0022
90119C0107
90119-C0107
90119C0132
90119-C0132
9017606045
90176-06045
90178C0034
90178-C0034
9017906274
90179-06274
9046806017
90468-06017
9046808001
90468-08001
9155180620
91551-80620

22 parts on this diagram · 2 diagrams in section

PARKING BRAKE & CABLE for Toyota 280320

This section contains 46 genuine Toyota parts for the PARKING BRAKE & CABLE system of the Toyota 280320. Key components include: PEDAL SUB-ASSY, PARKING BRAKE, PAD, PARKING PEDAL, EQUALIZER, PARKING BRAKE, CABLE ASSY, PARKING BRAKE, NO.1, CABLE ASSY, PARKING BRAKE, NO.2.
