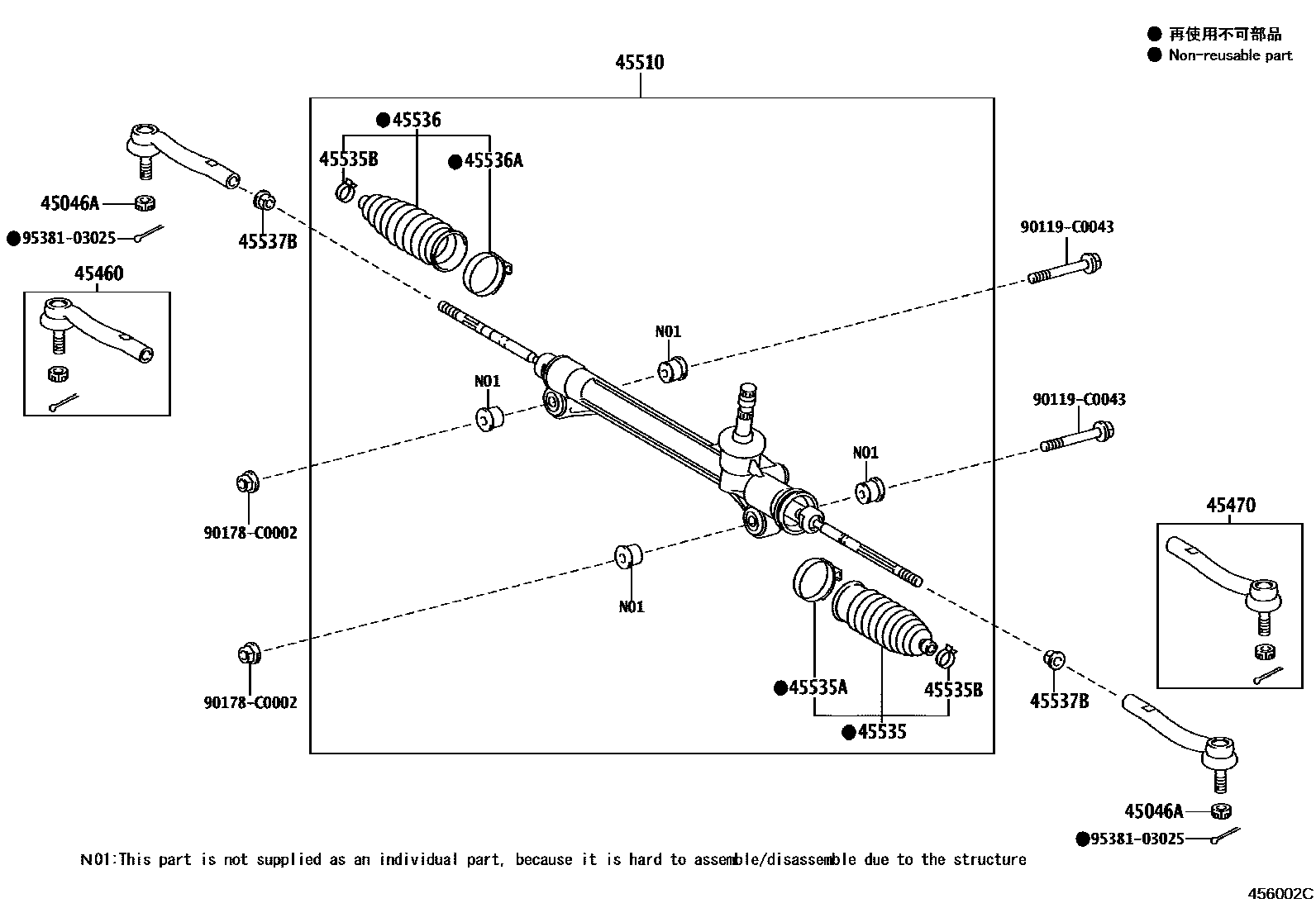

FRONT STEERING GEAR & LINK

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-C0001×2iACV51,ASV50,AVV50201112-201501

45460ROD ASSY, TIE, RH

main45460-09250iACV51,ASV50,AVV50201112-201501

45470ROD ASSY, TIE, LH

main45470-09160iACV51,ASV50,AVV50201112-201501

45510GEAR ASSY, STEERING

main45510-06061iACV51,ASV50,AVV50201112-201501

45535BOOT, STEERING RACK, NO.1

main45535-09260iACV51,ASV50201112-201201

main45535-09280iACV51,ASV50,AVV50201202-201501

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-06040iACV51,ASV50,AVV50201202-201501

main45538-48020iACV51,ASV50201112-201201

45535BCLIP(FOR STEERING RACK BOOT)

main45537-0D030×2iACV51,ASV50,AVV50201202-201501

main90467-19021×2iACV51,ASV50201112-201201

45536BOOT, STEERING RACK, NO.2

main45535-09260iACV51,ASV50201112-201201

main45535-09280iASV5#,AVV50201501

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main45538-06040iACV51,ASV50,AVV50201202-201501

main45538-48020iACV51,ASV50201112-201201

45537BNUT, RACK END LOCK

main90178-15003×2iACV51,ASV50,AVV50201112-201501

90119C0043

main90119-C0043

90178C0002

main90178-C0002

9538103025

main95381-03025

13 parts on this diagram · 1 diagram in section
