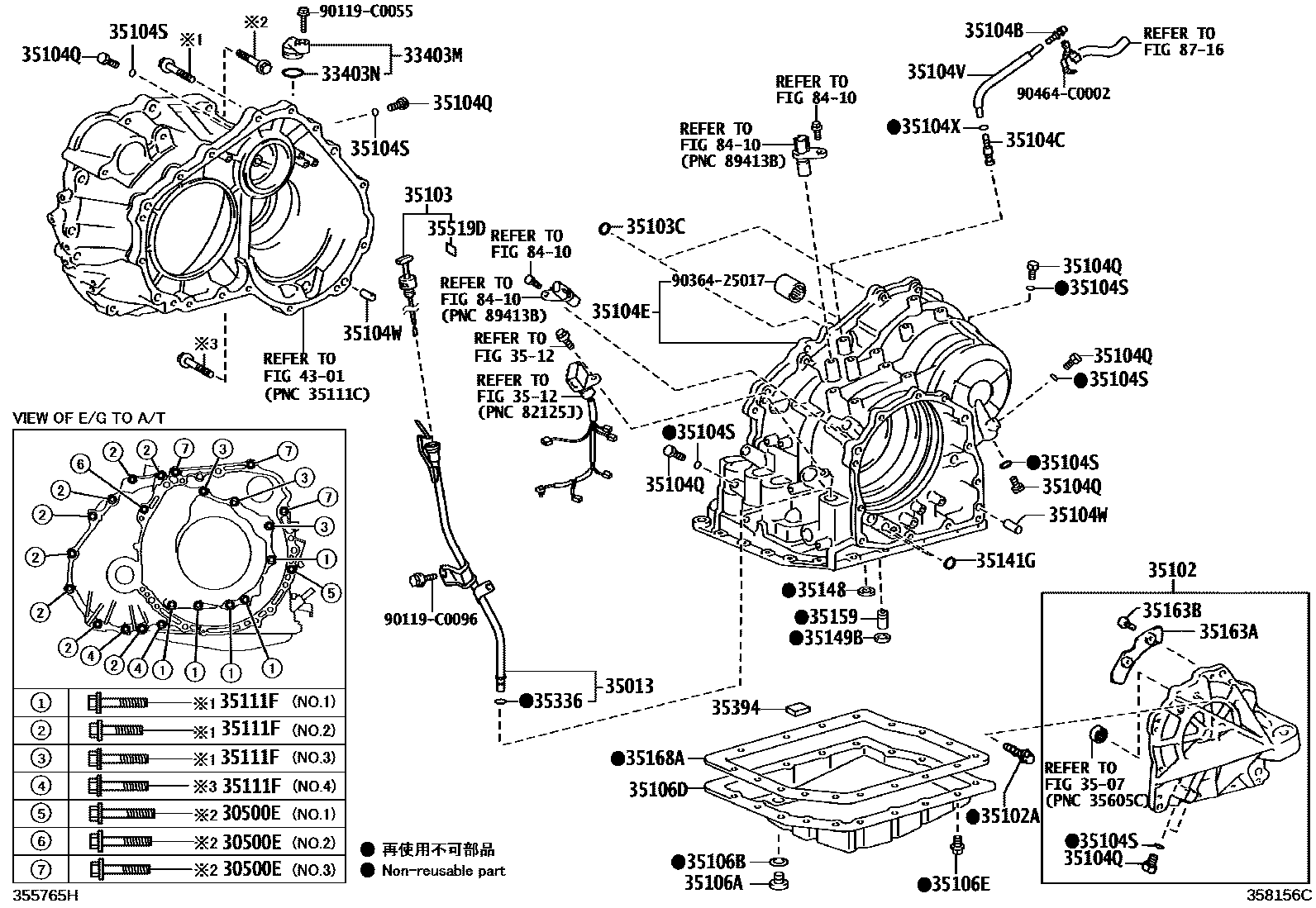

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX50-30,NO.2
*10-1.25PX65-30,NO.1
*12-1.25PX55-30,NO.3
*12-1.25PX55-30,NO.1
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
3507
35102COVER SUB-ASSY, TRANSAXLE REAR
*285
35102ABOLT (FOR TRANSAXLE REAR COVER SETTING)
*8-1.25PX30-25
*8-1.25PX28-22,NO.1
*8-1.25PX28-22,NO.2
35104BPLUG, BREATHER, NO.1 (ATM)
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
sub35104-28093
sub35104-33081
sub35422-33040
sub82123-28431
sub82715-44520
sub90105-08066
sub90119-08868
sub90301-19016
sub90301-30007
*285
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104VHOSE (FOR BREATHER PLUG)
*285
*284
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
*285
*284
35106EBOLT (FOR TRANSAXLE OIL PAN)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*6-1.00PX50-25,NO.4
*8-1.25PX42-30,NO.2
*8-1.25PX50-30,NO.1
*8-1.25PX50-30,NO.3
*8-1.25PX45-22,NO.1
*8-1.25PX45-22,NO.2
3512
35141GRING, O (FOR AUTOMATIC TRANSMISSION CASE)
35148GASKET, GOVERNOR APPLY, NO.1
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35159GASKET, BRAKE DRUM
35163APLATE, TRANSAXLE REAR COVER
35163BSCREW, HEX LOBULAR(FOR TRANSAXLE REAR COVER PLATE)
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
8410
8716
90119C0055
main90119-C0055
90119C0096
main90119-C0096
9036425017
main90364-25017
90464C0002
main90464-C0002
40 parts on this diagram · 4 diagrams in section
