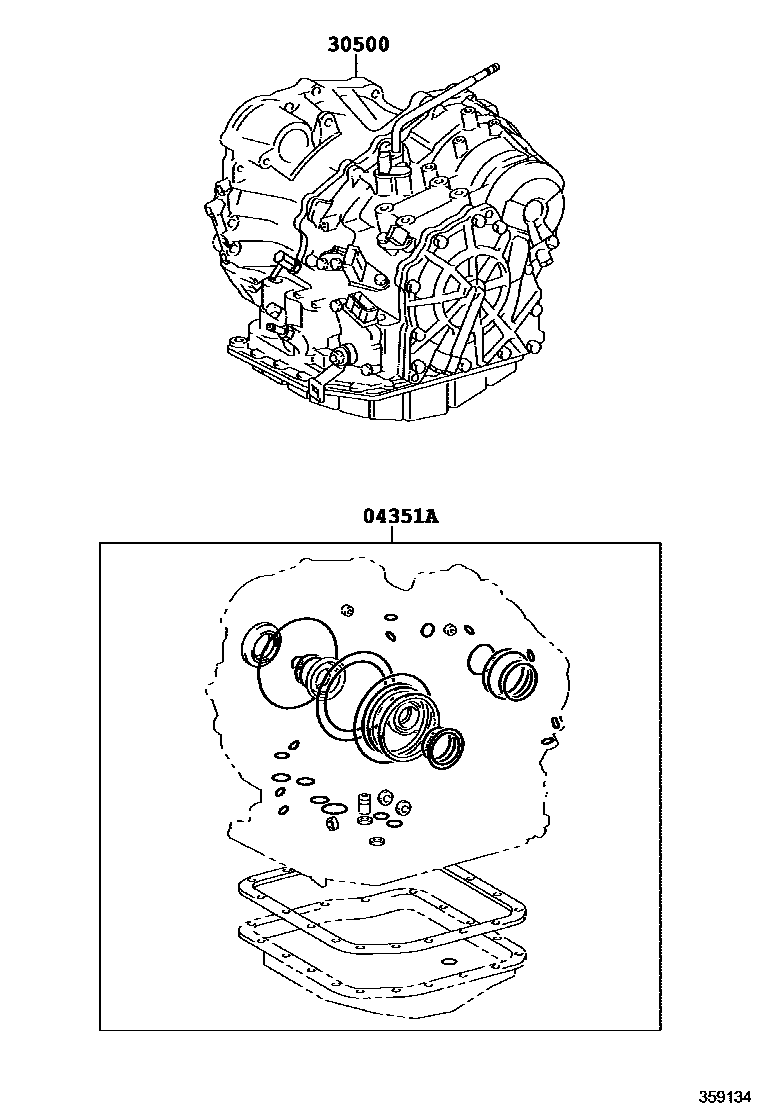

TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

0001 1U241E 0002 1U760E 0003 1U761E

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-33531iASV50201112-201212

*285

main04351-33532iASV50201212-201501

*285

sub04351-33620

main04351-33560iASV50201608

sub04351-33561

main04351-48151iACV51201112-201307

sub04351-48152

main04351-48154iACV51201307-201501

main04351-48182iASV50201112-201212

*284

main04351-48183iASV50201501-201608

*284

30500TRANSAXLE ASSY, AUTOMATIC

main30500-33600iASV50201112-201403

U760E,*284

main30500-33601iASV50201403-201409

U760E,*284

main30500-33602iASV50201410-201501

U760E,*284

main30500-33610iASV50201112-201405

U760E,*285

main30500-33611iASV50201406-201501

U760E,*285

main30500-33680iACV51201112-201501

U241E

sub30500-33770

main30500-33730iASV51201501-201608

U761E

main30500-33750iASV5#201608-201711

U761E

2 parts on this diagram · 3 diagrams in section
