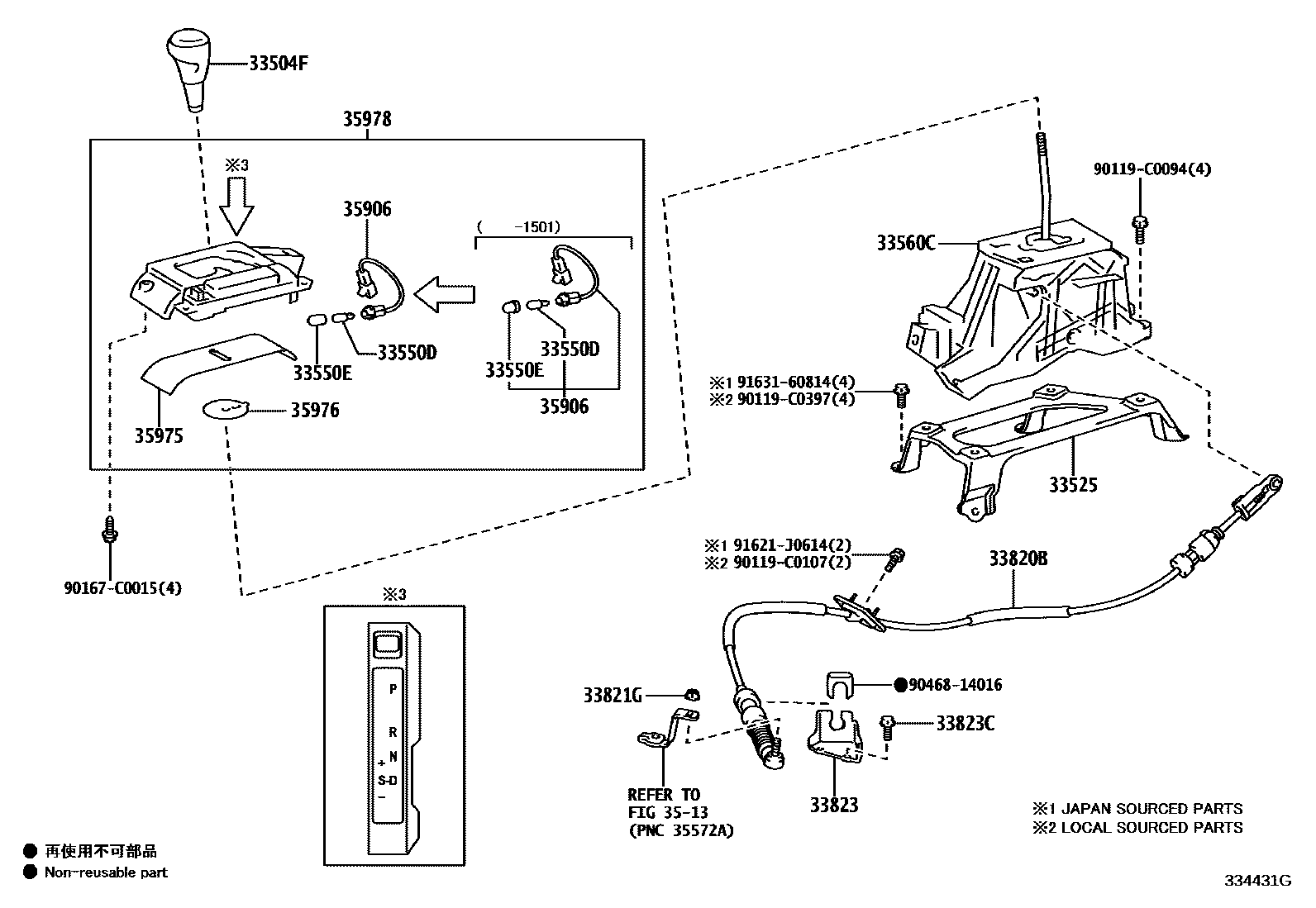

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-06250-C0supersedes 33504-06240-C0iASV50..25G,25V201112-201212

SHELL,TRIM0#

main33504-06250-C1iAVV50201205-201212

SHELL,TRIM0#

main33504-06250-C2iACV51,ASV50..20S,25S201112-201212

BLACK,TRIM0#

main33504-06251-C0iASV50..25G,25V201301-201501

CHINA G GRADE,BLACK & SHELL,TRIM0#,2#

main33504-06251-C1iAVV50201301-201501

BLACK & SHELL,TRIM0#,2#

main33504-06251-C2iACV51,ASV50..20S,25S201301-201501

BLACK,TRIM2#

main33504-06251-C3iASV5#..20S,25S201501-201608

GRAY,TRIM0#,2#

main33504-06251-C4iAVV50201501-201608

BROWN,TRIM0#,2#

main33504-06251-C5supersedes 33504-06240-C0iASV50..25G,25V201501-201608

SHELL,TRIM0#,2#

main33542-06380-C0supersedes 33542-06390-C1iASV51..20E201608-201711

HV DECONTENT(STEERING WHEEL-URETHANE),BLACK,TRIM0#,2#

main33542-06390-C0iASV5#..20S,25S201608-201711

BLACK & GRAY,TRIM2#

main33542-06390-C2iASV50..25G,25V201608-201711

G GRADE,BLACK & SHELL,TRIM0#,2#

33525SUPPORT, SHIFT LEVER

main58123-06070iASV5#,AVV50201501

33550DBULB, POSITION INDICATOR LAMP

main35955-20010iASV5#,AVV50201501

12V 2.0W

main90981-11018iACV51,ASV50,AVV50201112-201501

12V 1.2W W/O SOCKET

33550ECAP, POSITION INDICATOR LAMP

main35956-12010iASV5#,AVV50201501-201603

main90339-04053iACV51,ASV50,AVV50201112-201501

33560CLEVER ASSY, SHIFT, LOWER

main33560-06260iASV50201501-201608

main33560-06270iASV51201501-201608

main33560-06280iAVV50201205-201501

main33560-06470iASV50201608

main33560-06480iASV51201608

main33560-06490iAVV50201608

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-06450iASV50201112-201501

main33820-06460iACV51201112-201501

main33820-06470iAVV50201205-201501

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main90179-08054iACV51,ASV50,AVV50201112-201501

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-06020iASV5#201501

main33823-06030iAVV50201205-201501

main33823-06050iACV51201112-201501

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main90119-08079×2iACV51,ASV50201402-201501

(J)

main90119-C0212×2iACV51,ASV50201402-201501

(L)

3513

35906WIRE SUB-ASSY, INDICATOR LAMP

main35906-06200iASV5#,AVV50201501-201603

35975COVER, SLIDE (FOR POSITION INDICATOR)

main35975-06110iACV51,ASV50,AVV50201112-201501

35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)

main35976-06120iACV51,ASV50,AVV50201112-201501

35978INDICATOR, SHIFT POSITION

main35978-06030iACV51,ASV50201112-201501

main35978-06040iAVV50201205-201501

main35978-06160iASV5#201501-201603

main35978-06170iAVV50201501-201603

main35978-06330iASV5#201603-201711

main35978-06340iAVV50201603-201711

90119C0094

main90119-C0094

90119C0107

main90119-C0107

90119C0397

main90119-C0397

90167C0015

main90167-C0015

9046814016

main90468-14016

91621J0614

main91621-J0614

9163160814

main91631-60814

21 parts on this diagram · 5 diagrams in section
