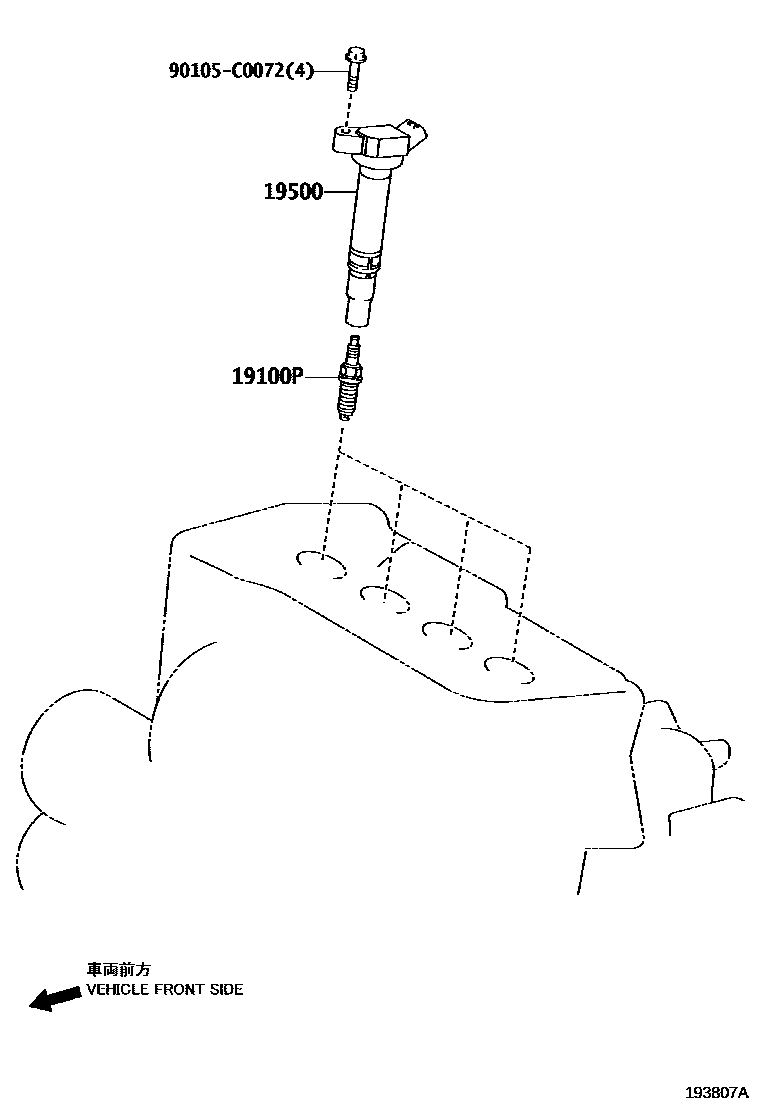

IGNITION COIL & SPARK PLUG / GLOW PLUG

0001 1 0002 1

19100PPLUG, SPARK

main90919-01233×4i5ARFE..ASV50201501

SK16HR11,(J)

main90919-01240×4i1AZFE..ACV51201112-201501

SK16R11,(J)

main90919-01259×4i4ARFXE..AVV50201501

FK16HR-A8

main90919-01286×4i6ARFSE..ASV51201501

FK16HBR-J8,(J)

main90919-C1001×4i5ARFE..ASV50201412-201501

SK16HR11,(L)

main90919-C1002×4i1AZFE..ACV51201112-201501

SK16R11,(L)

main90919-C1006×4i6ARFSE..ASV51201501

FK16HBR-J8,(L)

main90919-C1008×4i5ARFE..ASV50201507

SK16HR11,(L)

19500COIL ASSY, IGNITION

main90919-02256×4i6ARFSE..ASV51201501

(J)

main90919-02260×4i1AZFE..ACV51201112-201501

MARK 90919-02260

main90919-C2004×4i4ARFXE,5ARFE..ASV50,AVV50; 6ARFSE..ASV51201501

(L)

main90919-C2006×4i1AZFE..ACV51201112-201501

MARK C200* OR T200*

90105C0072

main90105-C0072

3 parts on this diagram · 2 diagrams in section
