V-BELT

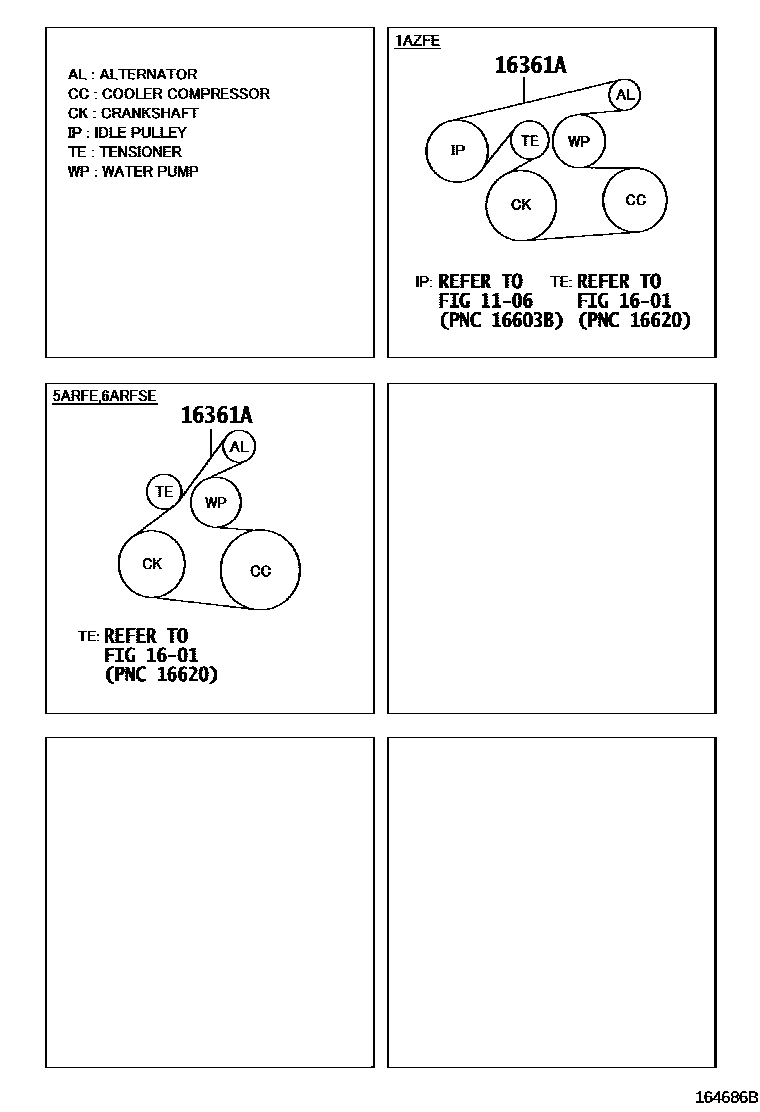

Parts diagram

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

1601WATER PUMP

→ Go to FIG 16-01

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02667i201501-201608

BANDO

main90916-02668i201112-201305

MITSUBOSHI

main90916-02739i201608-201711

(J)

main90916-C2003i201112-201501

main90916-C2005i201306-201501

MITSUBOSHI

main90916-C2008i201501-201711

main90916-C2010i201608-201711

(L)

3 parts on this diagram · 1 diagram in section
