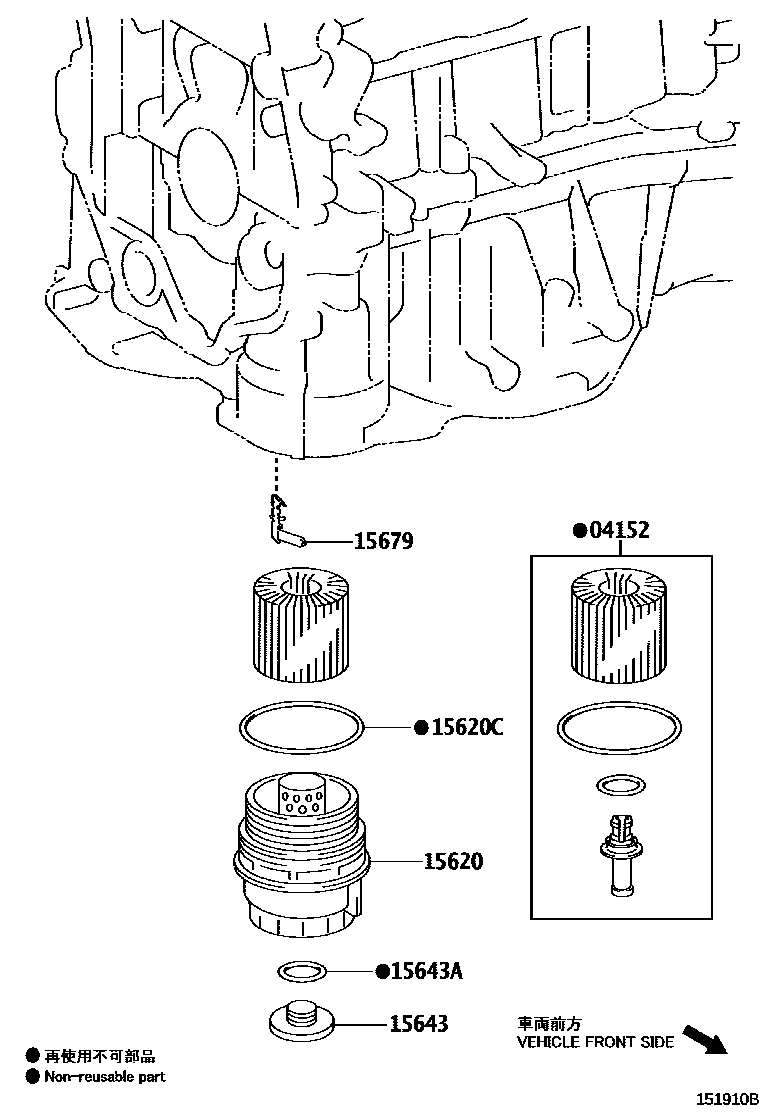

OIL FILTER

0001 1 0002 1

04152ELEMENT KIT, OIL FILTER

main04152-0V010i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201501-201711

(L)

main04152-31090i4ARFXE,5ARFE..ASV50,AVV50201204-201501

(J)

15620CAP ASSY, OIL FILTER

main15620-36020i4ARFXE,5ARFE,6ARFSE..ASV5#,AVV50201501

15620CGASKET(FOR OIL FILTER CAP)

main90301-79006i4ARFXE,5ARFE..ASV50,AVV50201112-201501

15643PLUG, OIL FILTER DRAIN

main15643-31050i4ARFXE,5ARFE..ASV50,AVV50201112-201501

15643ARING, O(FOR OIL FILTER DRAIN PLUG)

main96723-35028i4ARFXE,5ARFE..ASV50,AVV50201112-201501

15679CLIP, OIL FILTER BRACKET

main15679-37010i4ARFXE,5ARFE..ASV50,AVV50201112-201408

main15679-37011i4ARFXE,5ARFE..ASV50,AVV50201409-201501

6 parts on this diagram · 2 diagrams in section
