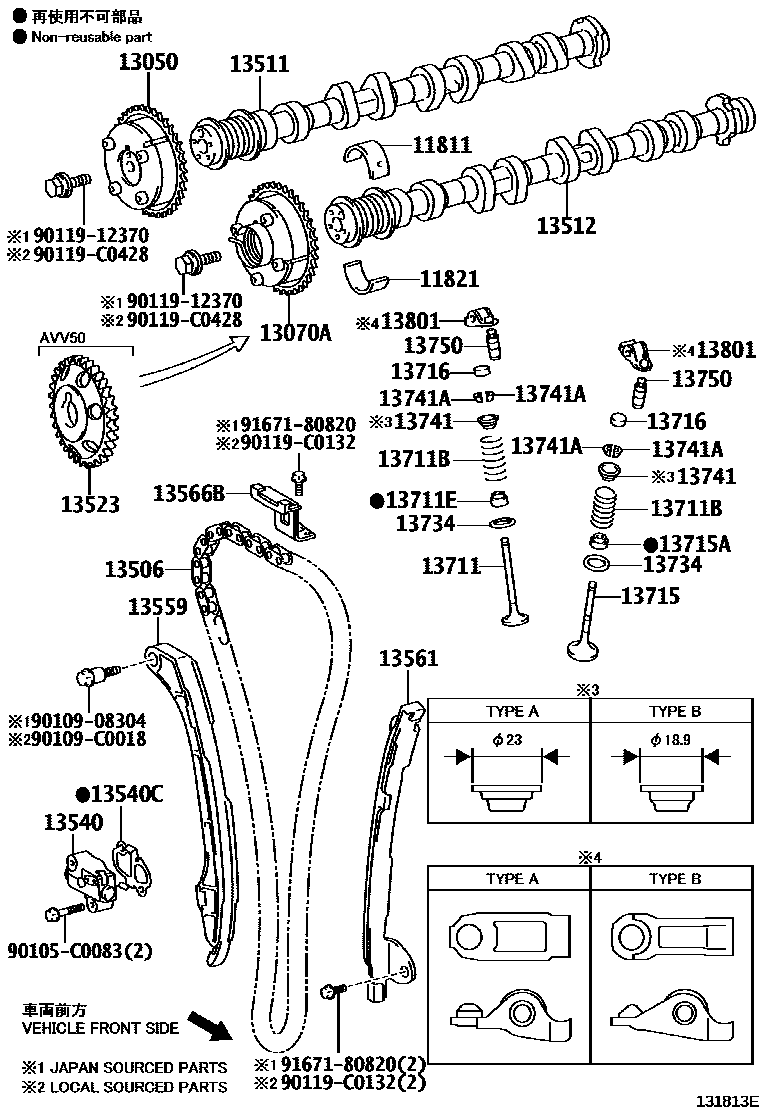

CAMSHAFT & VALVE
11811BEARING, CAMSHAFT, NO.1
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
11821BEARING, CAMSHAFT, NO.2
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
13050GEAR ASSY, CAMSHAFT TIMING
(L)
(J)
13070AGEAR ASSY, CAMSHAFT TIMING EXHAUST
13506CHAIN SUB-ASSY
(L)
(J)
13523GEAR OR SPROCKET, CAMSHAFT TIMING
13540TENSIONER ASSY, CHAIN, NO.1
13540CGASKET(FOR CHAIN TENSIONER)
13559SLIPPER, CHAIN TENSIONER
13561DAMPER, CHAIN VIBRATION, NO.1
13566BGUIDE, TIMING CHAIN
13711VALVE, INTAKE
13711BSPRING, COMPRESSION(FOR INNER)
PNC 13741=TYPE B
13711ESEAL, INTAKE VALVE STEM OIL
13715VALVE, EXHAUST
13715ASEAL, EXHAUST VALVE STEM OIL
13716CAP, VALVE STEM
(L)
(J)
13734SEAT, VALVE SPRING
13741RETAINER, VALVE SPRING
(L)
(L),T/P B:REF.ILLUST
(J),T/P B:REF.ILLUST
13741ALOCK, VALVE SPRING RETAINER
(L)
13750ADJUSTER ASSY, VALVE LASH
PNC 13801=TYPE A
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
90105C0083
main90105-C0083
9010908304
main90109-08304
90109C0018
main90109-C0018
9011912370
main90119-12370
90119C0132
main90119-C0132
90119C0428
main90119-C0428
9167180820
main91671-80820
31 parts on this diagram · 3 diagrams in section
