CRANKSHAFT & PISTON

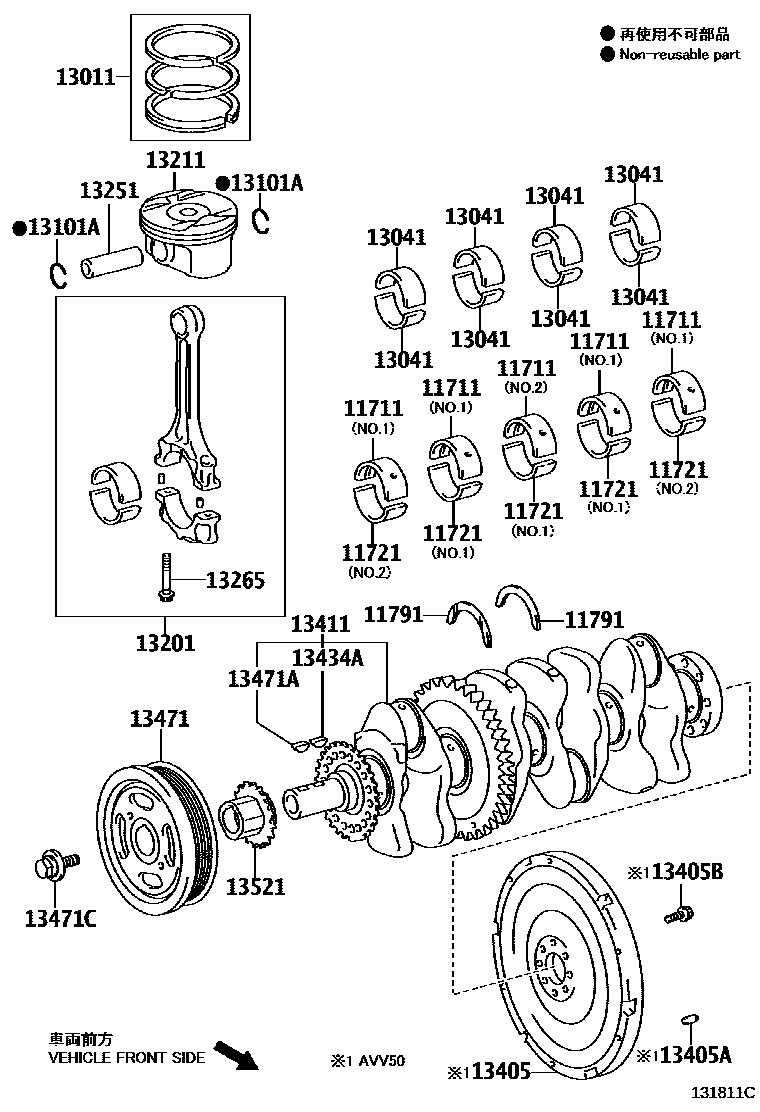

Parts diagram
11711BEARING, CRANKSHAFT
main11711-0H041-01×5i201112-201211
MARK 1,REFER REPAIR MANUAL
main11711-0H041-02×5i201112-201211
MARK 2,REFER REPAIR MANUAL
main11711-0H041-03×5i201112-201211
MARK 3,REFER REPAIR MANUAL
main11711-0H041-04×5i201112-201211
MARK 4,REFER REPAIR MANUAL
main11711-0V020-01×5i201112-201307
MARK 1,NO.1,2 REFER R/M
main11711-0V020-02×5i201112-201307
MARK 2,NO.1,2 REFER R/M
main11711-0V020-03×5i201112-201307
MARK 3,NO.1,2 REFER R/M
main11711-0V020-04×4i201205-201307
MARK 4,NO.1,REFER R/M
main11711-0V040-01×5i201307-201501
MARK 1,NO.1,2 REFER R/M
main11711-0V040-02×5i201307-201501
MARK 2,NO.1,REFER R/M
main11711-0V040-03×5i201307-201501
MARK 3,NO.1,2 REFER R/M
main11711-0V040-04×4i201307-201501
MARK 4,NO.1,2 REFER R/M
main11711-36030-01i201205-201307
MARK 1,NO.2,REFER R/M
main11711-36030-02i201205-201307
MARK 2,NO.2,REFER R/M
main11711-36030-03i201205-201307
MARK 3,NO.2,REFER R/M
main11711-36030-04i201205-201307
MARK 4,NO.2,REFER R/M
main11711-36040-01i201501-201711
MARK 1,NO.1,2 REFER R/M
main11711-36040-02×5i201608-201711
MARK 2,NO.1,2 REFER R/M
main11711-36040-03×5i201501-201711
MARK 3,NO.2,REFER R/M
main11711-36040-04×5i201501-201711
MARK 4,NO.1,2 REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0H041-01×5i201112-201211
MARK 1,REFER REPAIR MANUAL
main11721-0H041-02×5i201112-201211
MARK 2,REFER REPAIR MANUAL
main11721-0H041-03×5i201112-201211
MARK 3,REFER REPAIR MANUAL
main11721-0H041-04×5i201112-201211
MARK 4,REFER REPAIR MANUAL
main11721-0V020-01×3i201205-201307
MARK 1,NO.1,REFER R/M
main11721-0V020-02×3i201205-201307
MARK 2,NO.1,REFER R/M
main11721-0V020-03×5i201112-201307
MARK 3,NO.1,2 REFER R/M
main11721-0V020-04×3i201205-201307
MARK 4,NO.1,REFER R/M
main11721-0V040-01×5i201307-201501
MARK 1,NO.1,2 REFER R/M
main11721-0V040-02×5i201307-201501
MARK 2,NO.1,REFER R/M
main11721-0V040-03×5i201501-201608
MARK 3,NO.1,2 REFER R/M
main11721-0V040-04×3i201307-201501
MARK 4,NO.1,2 REFER R/M
main11721-36030-01×2i201205-201307
MARK 1,NO.2,REFER R/M
main11721-36030-02×2i201205-201307
MARK 2,NO.2,REFER R/M
main11721-36030-03×2i201205-201307
MARK 3,NO.2,REFER R/M
main11721-36030-04×2i201205-201307
MARK 4,NO.2,REFER R/M
main11721-36040-01×2i201501-201711
MARK 1,NO.1,2 REFER R/M
main11721-36040-02×5i201501-201711
MARK 2,NO.2,REFER R/M
main11721-36040-03×5i201501-201711
MARK 3,NO.2,REFER R/M
main11721-36040-04×2i201307-201501
MARK 4,NO.2,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0H030×2i201112-201501
STD
main11791-0V020×2i201501
STD
main11791-36020×2i201608-201711
STD
13011RING SET, PISTON
main13011-0H080i201310-201501
STD,(L)
main13011-0V020×4i201112-201411
STD
sub13011-36030
main13011-0V070×4i201501
STD
main13011-0V080×4i201501
STD
main13011-28210i201310-201501
STD,(J)
13041BEARING, CONNECTING ROD
main13281-0H041-01×8i201112-201501
MARK 1,REFER REPAIR MANUAL
main13281-0H041-02×8i201112-201501
MARK 2,REFER REPAIR MANUAL
main13281-0H041-03×8i201112-201501
MARK 3,REFER REPAIR MANUAL
main13281-0V020-01×8i201112-201501
MARK 1,REFER REPAIR MANUAL
main13281-0V020-02×8i201501-201604
MARK 2,REFER REPAIR MANUAL
main13281-0V020-03×8i201501-201604
MARK 3,REFER REPAIR MANUAL
main13281-0V021-01×8i201605
MARK 1,REFER REPAIR MANUAL
main13281-0V021-02×8i201605
MARK 2,REFER REPAIR MANUAL
main13281-0V021-03×8i201605
MARK 3,REFER REPAIR MANUAL
main13281-36030-01×8i201501-201711
MARK 1,REFER REPAIR MANUAL
main13281-36030-02×8i201501-201711
MARK 2,REFER REPAIR MANUAL
main13281-36030-03×8i201501-201711
MARK 3,REFER REPAIR MANUAL
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025×8i201112-201501
13201ROD SUB-ASSY, CONNECTING
main13201-09781-A0×4i201112-201501
MARK A,(L),REFER R/M
main13201-09781-B0×4i201112-201501
MARK B,(L),REFER R/M
main13201-09781-C0×4i201112-201501
MARK C,(L),REFER R/M
main13201-09A80-A0×4i201501-201605
MARK A,REFER REPAIR MANUAL
sub13201-39225
main13201-09A80-B0×4i201501-201605
MARK B,REFER REPAIR MANUAL
sub13201-39225
main13201-09A80-C0×4i201112-201501
MARK C,REFER REPAIR MANUAL
sub13201-39225
main13201-09A81-A0×4i201605
MARK A,REFER REPAIR MANUAL
sub13201-39226
main13201-09A81-B0×4i201605
MARK B,REFER REPAIR MANUAL
sub13201-39226
main13201-09A81-C0×4i201605
MARK C,REFER REPAIR MANUAL
sub13201-39226
main13201-09B60-A0×4i201501
MARK A,REFER REPAIR MANUAL
main13201-09B60-B0×4i201501
MARK B,REFER REPAIR MANUAL
main13201-09B60-C0×4i201501
MARK C,REFER REPAIR MANUAL
main13201-29686-A0×4i201112-201501
MARK A,(J),REFER R/M
main13201-29686-B0×4i201112-201501
MARK B,(J),REFER R/M
main13201-29686-C0×4i201112-201501
MARK C,(J),REFER R/M
13211PISTON
main13211-0H070-A0×4i201211-201501
MARK A,REFER REPAIR MANUAL
main13211-0H070-B0×4i201211-201501
MARK B,REFER REPAIR MANUAL
main13211-0H070-C0×4i201211-201501
MARK C,REFER REPAIR MANUAL
main13211-0V030-A0×4i201608
MARK A,REFER REPAIR MANUAL
main13211-0V030-B0×4i201608
MARK B,REFER REPAIR MANUAL
main13211-0V030-C0×4i201608
MARK C,REFER REPAIR MANUAL
main13211-0V040-A0×4i201112-201411
MARK A,REFER REPAIR MANUAL
main13211-0V040-B0×4i201112-201411
MARK B,REFER REPAIR MANUAL
main13211-0V040-C0×4i201112-201411
MARK C,REFER REPAIR MANUAL
main13211-0V050-A0×4i201205-201411
MARK A,REFER REPAIR MANUAL
main13211-0V050-B0×4i201205-201411
MARK B,REFER REPAIR MANUAL
main13211-0V050-C0×4i201205-201411
MARK C,REFER REPAIR MANUAL
main13211-0V080-A0×4i201501
MARK A,REFER REPAIR MANUAL
main13211-0V080-B0×4i201501
MARK B,REFER REPAIR MANUAL
main13211-0V080-C0×4i201501
MARK C,REFER REPAIR MANUAL
main13211-0V090-A0×4i201501-201608
MARK A,REFER REPAIR MANUAL
main13211-0V090-B0×4i201501-201608
MARK B,REFER REPAIR MANUAL
main13211-0V090-C0×4i201501-201608
MARK C,REFER REPAIR MANUAL
main13211-0V100-A0×4i201411-201501
MARK A,REFER REPAIR MANUAL
main13211-0V100-B0×4i201501
MARK B,REFER REPAIR MANUAL
main13211-0V100-C0×4i201411-201501
MARK C,REFER REPAIR MANUAL
main13211-28130-A0×4i201112-201211
MARKA,REFER REPAIR MANUAL
main13211-28130-B0×4i201112-201211
MARKB,REFER REPAIR MANUAL
main13211-28130-C0×4i201112-201211
MARKC,REFER REPAIR MANUAL
13251PIN, PISTON
main13251-0H040-A0×4i201112-201211
MARK A,(L),REFER R/M
main13251-0H040-B0×4i201112-201501
MARK B,REFER REPAIR MANUAL
main13251-0H040-C0×4i201112-201501
MARK C,REFER REPAIR MANUAL
main13251-28020-A0×4i201112-201211
MARK A,(J),REFER R/M
main13251-28020-B0×4i201112-201211
MARK B,(J),REFER R/M
main13251-28020-C0×4i201112-201211
MARK C,(J),REFER R/M
13265BOLT, CONNECTING ROD
main13265-0V010×8i201709
(L)
main13265-28010×8i201112-201501
sub13265-28020
main13265-31020×8i201112-201501
13405FLYWHEEL SUB-ASSY
main13451-0V010i201501
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120×3i201406-201501
L=18,OD=8,(J)
main90250-C0011×3i201501
L=18,OD=8,(L)
13405BBOLT, FLYWHEEL SETTING
main90105-12384×8i201707
(J)
main90105-C0224×8i201707
(L)
13411CRANKSHAFT
main13401-0H050i201112-201501
sub13401-28030
main13401-0V020i201112-201307
sub13401-36011
main13401-0V021i201501-201608
sub13401-36011
main13401-0V060i201608
sub13401-36110
main13401-0V070i201501
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30416i201112-201501
main95161-30516i201501
13471PULLEY, CRANKSHAFT
main13470-0H030i201112-201501
main13470-0V030i201112-201501
main13470-0V050i201501
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30416i201112-201501
main95161-30516i201112-201501
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16020i201702
(J)
main90119-C0124i201112-201501
sub90119-C0499
main90119-C0429i201702
(L)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0H050i201112-201501
main13521-0V020i201112-201501

19 parts on this diagram · 2 diagrams in section
