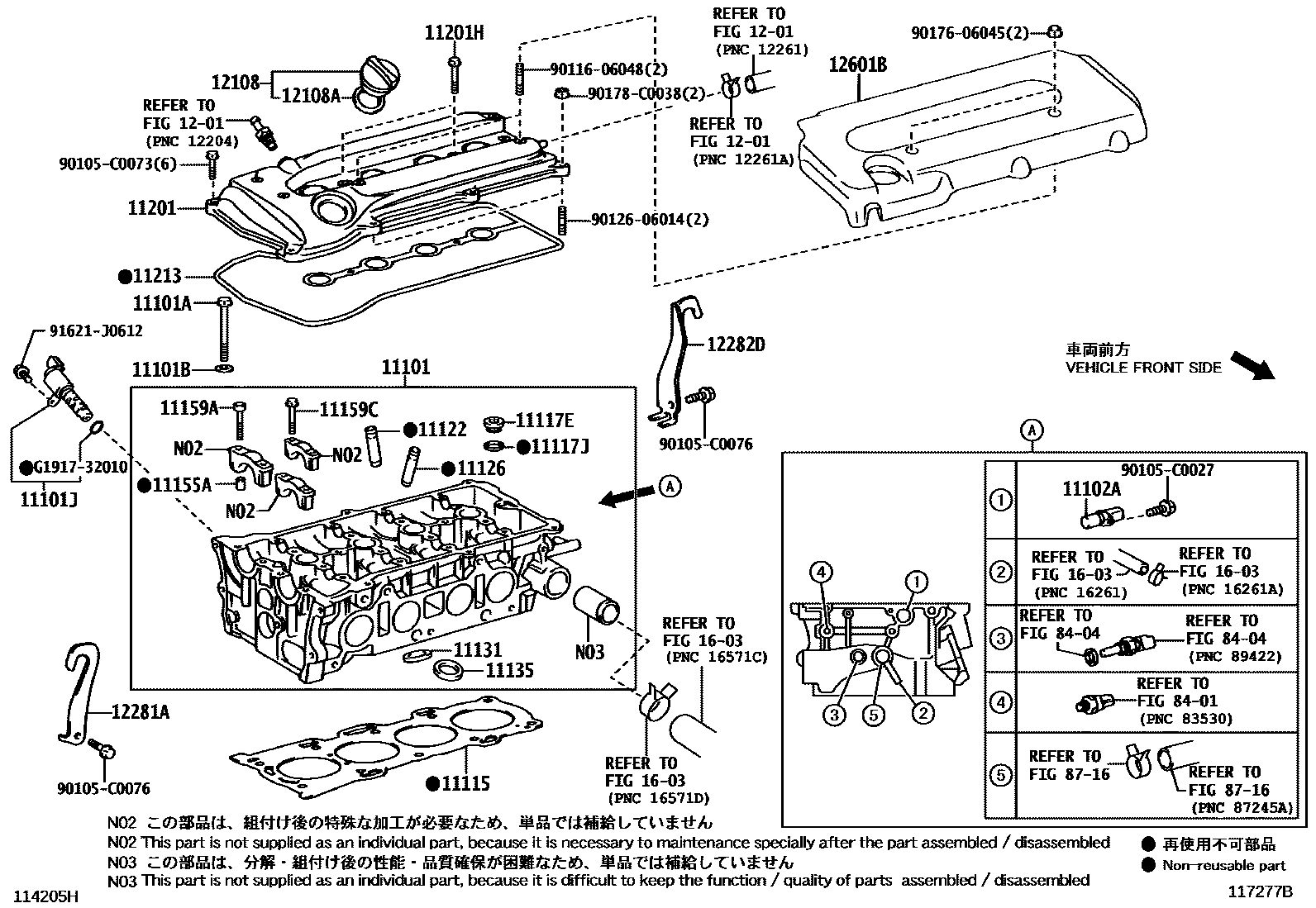

CYLINDER HEAD
11101ABOLT(FOR CYLINDER HEAD SET)
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
11102ASENSOR, CAMSHAFT POSITION
(J)
(L)
11115GASKET, CYLINDER HEAD
(L)
(L)
(J)
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
(J)
(L)
11122BUSH, INTAKE VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
STD
STD
O/S 0.05
O/S 0.05
11131SEAT, INTAKE VALVE
STD
STD
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD
STD
O/S 0.03
O/S 0.03
O/S 0.03
11155APIN, RING W/HEAD
11159ABOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11159CBOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
11201COVER SUB-ASSY, CYLINDER HEAD
11201HBOLT(FOR CYLINDER HEAD COVER)
NO.2
NO.1
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
1201
12108CAP SUB-ASSY, OIL FILLER
(J)
12108AGASKET(FOR OIL FILLER CAP)
12281AHANGER, ENGINE, NO.1
12282DHANGER, ENGINE, NO.2
1603
8401
8404
8716
90105C0027
main90105-C0027
90105C0073
main90105-C0073
90105C0076
main90105-C0076
9011606048
main90116-06048
9012606014
main90126-06014
9017606045
main90176-06045
90178C0038
main90178-C0038
91621J0612
main91621-J0612
G191732010
mainG1917-32010
37 parts on this diagram · 6 diagrams in section
