SHORT BLOCK ASSEMBLY

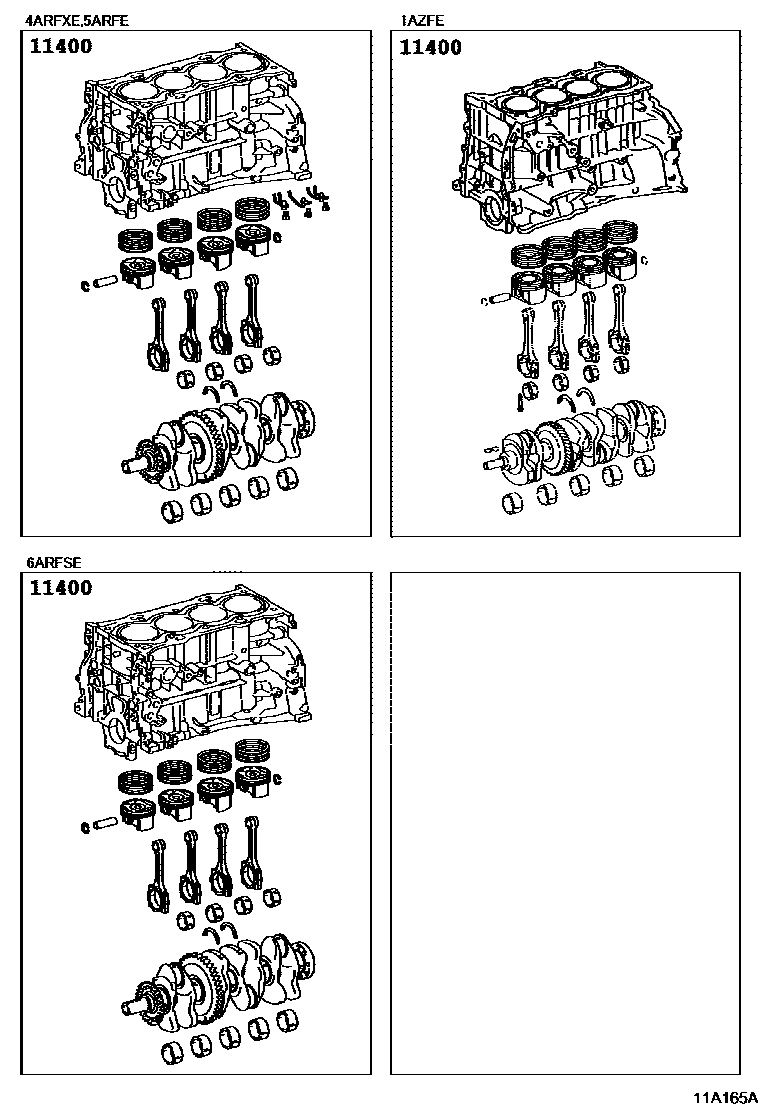

Parts diagram

11400BLOCK ASSY, SHORT

main11400-0H110i201112-201211

main11400-0H111i201211-201501

main11400-0V040i201501-201608

main11400-0V050i201205-201501

main11400-0V140i201501

main11400-0V150i201608

1 parts on this diagram · 1 diagram in section
