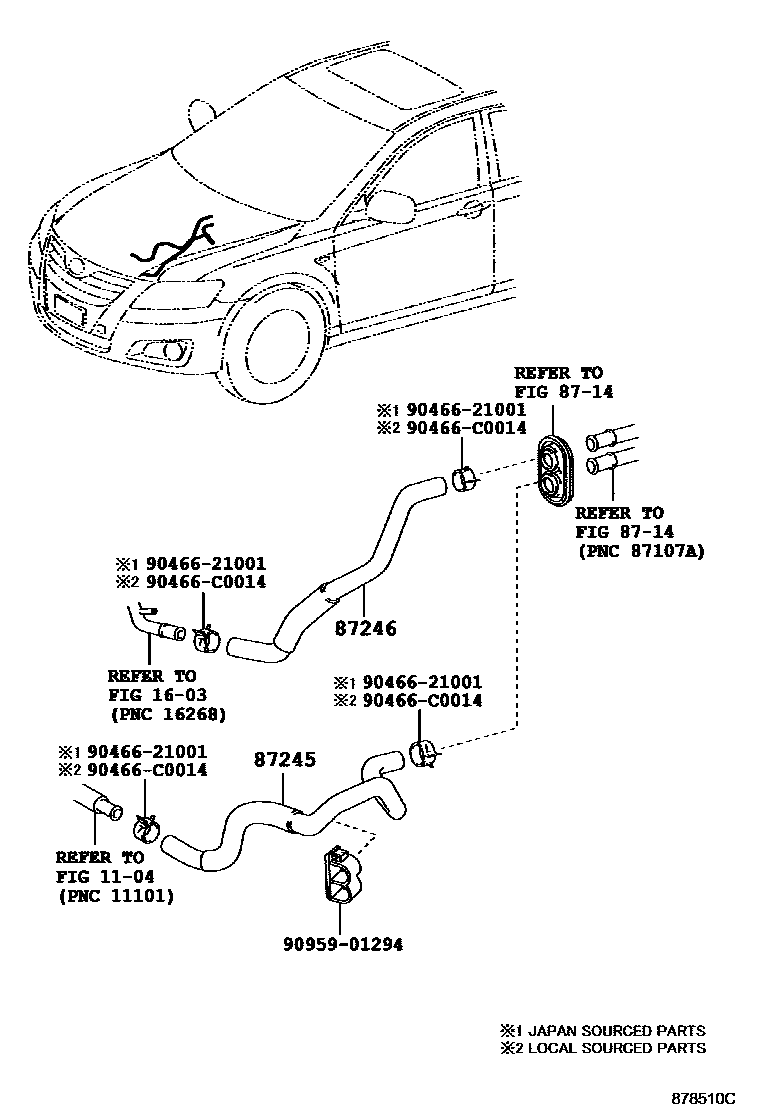

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87245HOSE, HEATER WATER, INLET

main87245-06620iACV4#200605-201110

main87245-06730iAHV41201003-201112

main87245-06A40iACV4#201111-201505

87246HOSE, HEATER WATER, OUTLET

main87245-06630iACV40200605-200903

main87245-06750iAHV41201003-201112

9046621001

main90466-21001

90466C0014

main90466-C0014

9095901294

main90959-01294

8 parts on this diagram · 2 diagrams in section
