NAVIGATION & FRONT MONITOR DISPLAY

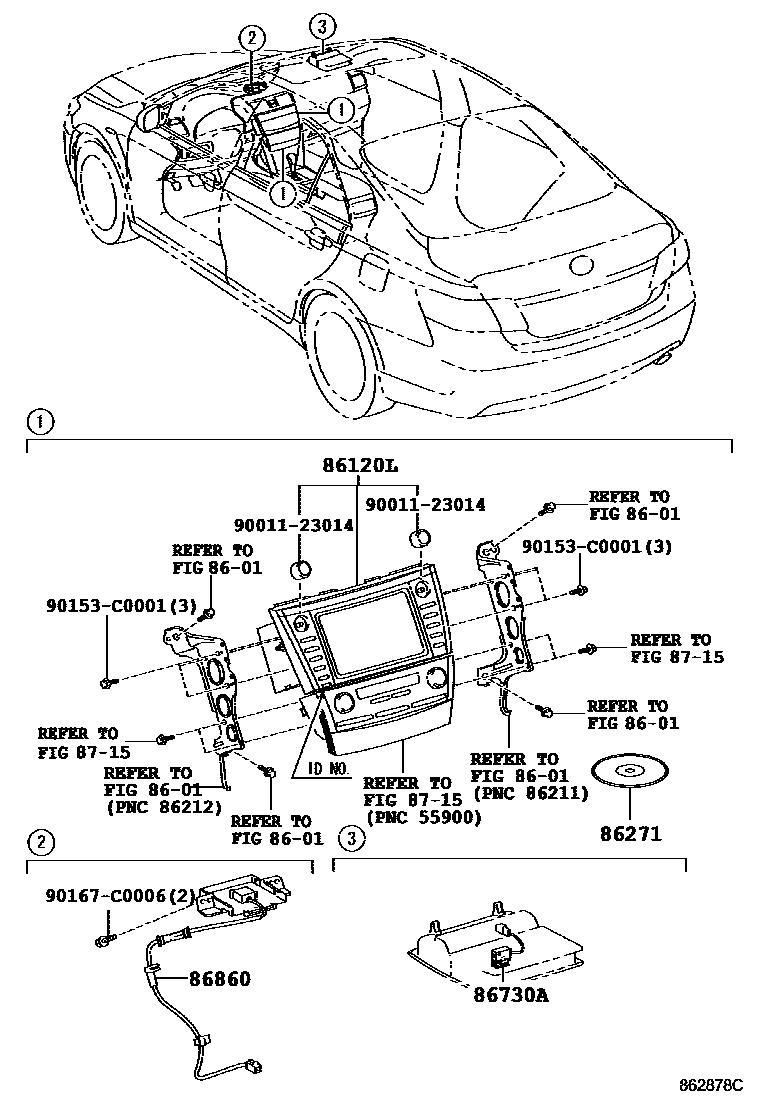

Parts diagram
8601
86120LRECEIVER ASSY, NAVIGATION
main86100-YY020i200905-200910
DENSO,ID=E8015,240V G-BOOK&NAVI PACKAGE&G-BOOK-WITH
main86100-YY021i201002-201003
DENSO,ID=E8015,200G&NAVI PACKAGE&G-BOOK-WITH
main86100-YY022i201004-201009
DENSO,ID=E8015,200G&NAVI PACKAGE&G-BOOK-WITH
main86100-YY023i201010-201104
DENSO,ID=E8015,200G&NAVI PACKAGE&G-BOOK-WITH
main86100-YY024i201105-201109
DENSO,240V&NAVI PACKAGE&G-BOOK-WITH
main86100-YY025i201110-201112
DENSO,NAVI PACKAGE&G-BOOK-WITH
main86120-06380i200605-200903
DENSO,ID=E8002,200G&NAVI PACKAGE
sub86120-06381
main86120-06620i201010-201011
DENSO,ID=E8012,NAVI PACKAGE
sub86120-06622
main86120-06621i201011-201105
DENSO,ID=E8027,200G&NAVI PACKAGE
main86120-06630i201010-201011
DENSO,ID=E8014,240V&NAVI PACKAGE
sub86120-06632
main86120-06631i201011-201105
DENSO,ID=E8028,240V&NAVI PACKAGE
86271DISC, DISC PLAYER
main86271-0W021i200605-200608
200G&NAVI PACKAGE
main86271-0W022i200609-200707
200G&NAVI PACKAGE
main86807-06020i200902-200909
NAVI PACKAGE
main86807-0W023i200708-200804
200G&NAVI PACKAGE
main86807-0W024i200805-200903
200G&NAVI PACKAGE
sub86807-0W025
main86807-0W026i200910-201003
200G&NAVI PACKAGE
main86807-0W027i201004-201009
200G&NAVI PACKAGE
main86807-0W028i201010-201104
200G&NAVI PACKAGE
main86807-0W029i201105-201109
200G&NAVI PACKAGE
main86807-0W190i201110-201111
200G&NAVI PACKAGE
sub86807-0W192
main86807-0W191i201111-201112
200G&NAVI PACKAGE
sub86807-0W192
86730AMICROPHONE ASSY, TELEPHONE
main86730-33040i200605-200902
NAVI PACKAGE
main86730-33080i200902-201112
NAVI PACKAGE
86860ANTENNA ASSY, NAVIGATION
main86860-06060i201105-201112
200G&NAVI PACKAGE
main86860-33140i200605-200902
NAVI PACKAGE
main86870-YY010i201002-201203
200G&NAVI PACKAGE&G-BOOK-WITH
8715
9001123014
main90011-23014
90153C0001
main90153-C0001
90167C0006
main90167-C0006

9 parts on this diagram · 1 diagram in section
