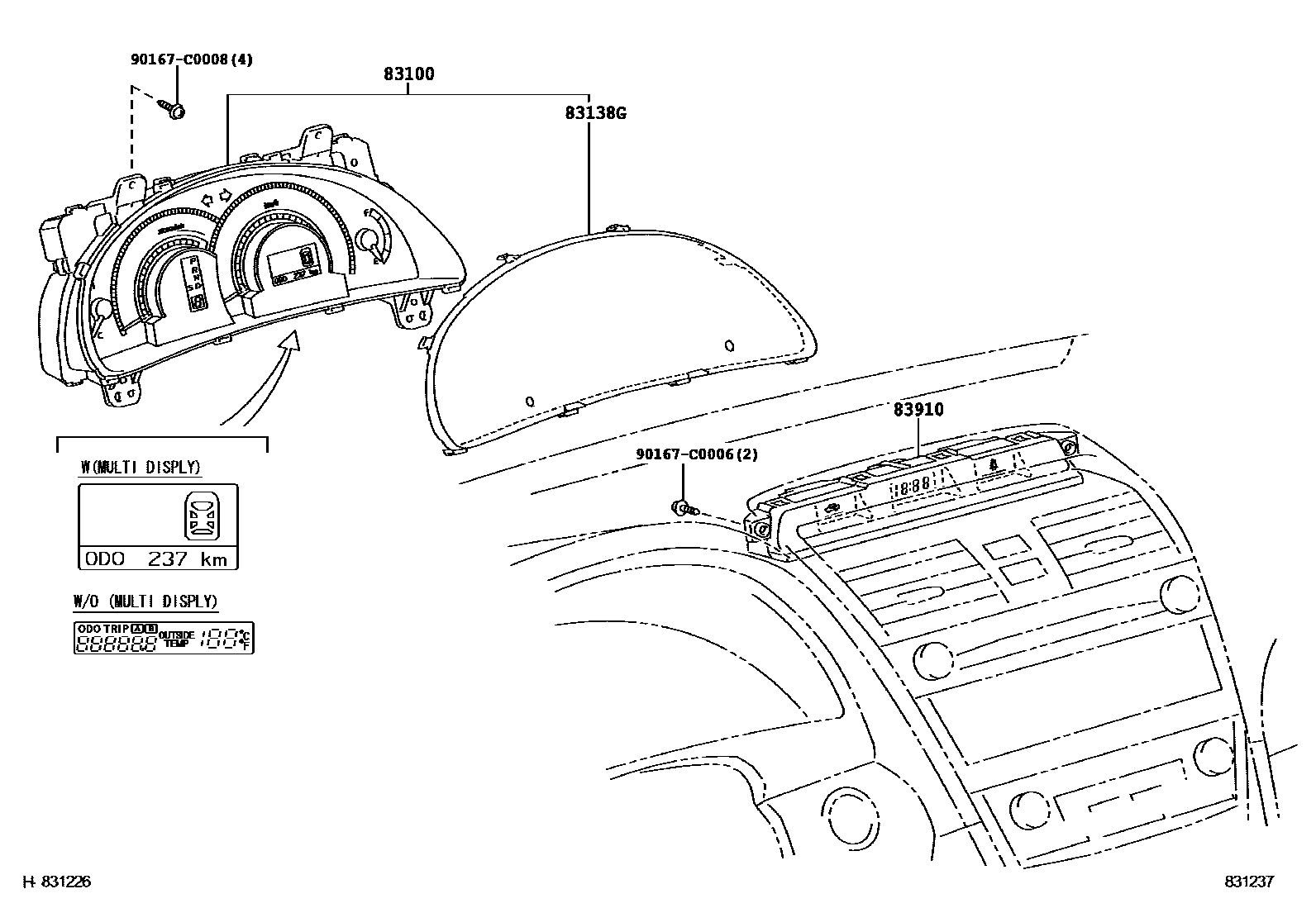

METER

83100METER ASSY, COMBINATION

main83800-06N70iACV40..240E200605-200611

main83800-06N71iACV40..240E200612-200902

main83800-06Y50iACV40..240E200902-201002

main83800-06Y51iACV40..240E201002-201112

main83800-06Y90iAHV41201003-201112

main83800-06N90supersedes 83800-06Y41iACV41200605-200611

200G

main83800-06N91supersedes 83800-06Y41iACV41200612-200903

200G

main83800-06Y60supersedes 83800-06Y41iACV41200903-201002

200G

main83800-06Y80supersedes 83800-06Z80iACV40..240G200902-201002

240V G-BOOK

main83800-06Z70supersedes 83800-06Y41iACV41201002

200G

main83800-06Z90supersedes 83800-06Z80iACV40..240G201002-201112

240V G-BOOK&NAVI PACKAGE

83138GGLASS, COMBINATION METER

main83852-06N60iACV41200612-200903

main83852-06N30iACV40..240G201002-201112

240V G-BOOK&NAVI PACKAGE

83910CLOCK ASSY

main83910-06170iACV40200605-200902

main83910-06171iACV4#,AHV41200910

90167C0006

main90167-C0006

90167C0008

main90167-C0008

5 parts on this diagram · 1 diagram in section
